Front Crankshaft Seal: Service and Repair

Remove vibration damper, refer to Harmonic Balancer, Service and Repair.

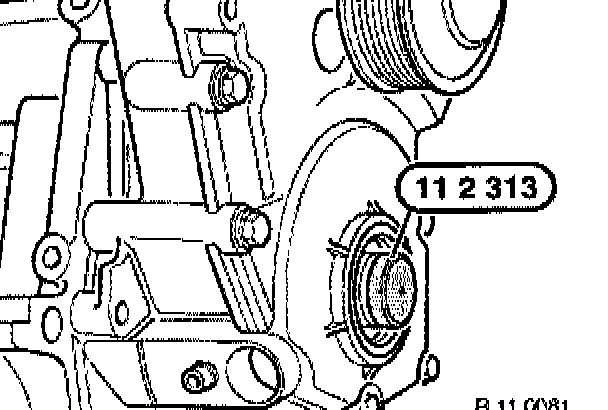

Fit Special Tool 11 2 313 on crankshaft.

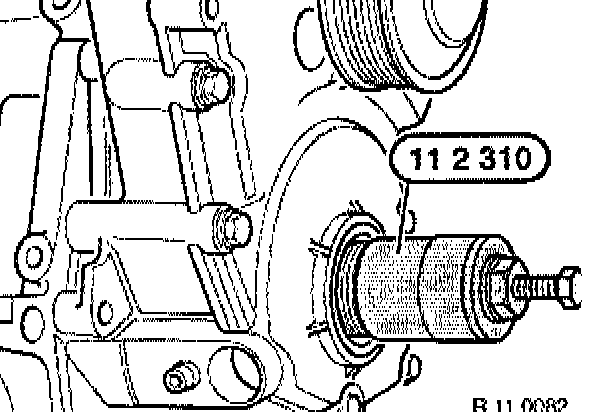

Screw in Special Tool 11 2 310 so far until it is rigidly connected with radial sealing ring.
Remove radial sealing ring by tightening in the screw.





Coat sealing lips of new radial sealing ring with oil.

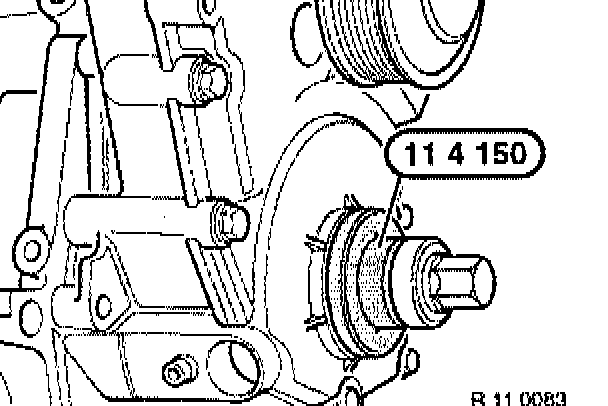

With Special Tool 11 4 150 and central screw, install radial sealing ring flush with timing-case cover.
