Engine Removed

Draining off engine oil, refer to Engine Lubrication, Service and Repair.
Remove exhaust manifold.

Installation:
Coat threads with copper paste CRC, (or equivalent).
Replace the seal and nuts.
Tightening Torque, refer to Engine, Specifications.





Remove engine carrier.

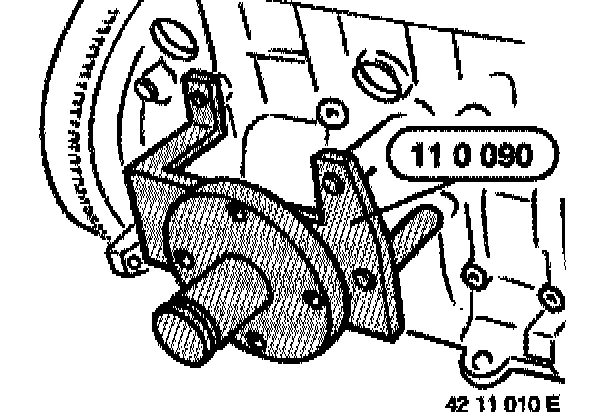

Secure engine with special tool 11 0 090 to special tool 00 1 490.

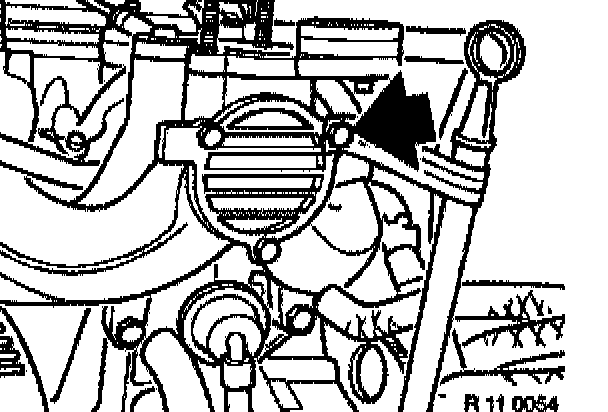

Loosen guide pipe for dipstick.





Installation:
Check/replace sealing ring.

Unscrew oil pan.
If necessary, remove oil wiper.
Remove intake snorkel for oil pump if necessary.

Installation:
The intake snorkel is secured with self-tapping screws. For this reason, no threading is present on new oil pans. Thread can be shaped using existing screws.
Replace seal for intake snorkel.





Installation:
Sealing faces clean and free of seal debris.
Replace the oil pan seal.

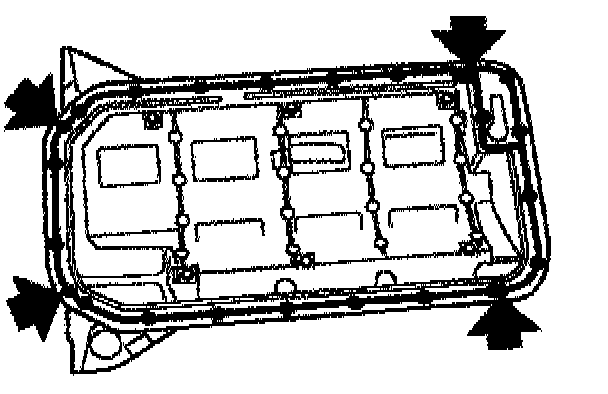

Fill openings in oil pan seal above joints to end cover and to gear case with 3 Bond 1209 (or equivalent).





Installation:
To prevent any possibility of torsion stress when transmission is fitted, align oil pan on transmission end with engine block.
