Cylinder Head Removed

Preliminary work is described in section on dismantling and assembling the cylinder head, refer to Cylinder Head Assembly, Service and Repair.
Remove all fingers, refer to Rocker Arms, Service and Repair.





Release the chain guide.





Release the bearing cover and lay aside in correct order.
Lift out camshaft.





Installation:
The camshafts are designated each with a cast letter.
(A) for exhaust camshaft.
(E) for intake camshaft.
Install camshaft.





Installation:

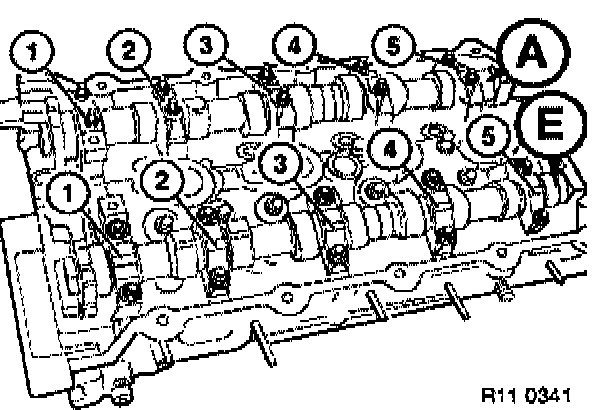

The designations of the bearing covers can be read on the intake side.
E1 through E5 for the intake side.
A1 through A5 for the exhaust side.
Fit the bearing cover and tighten down.
Tightening torque, refer to Engine, Specifications.
