Home >> BMW >> 1997 >> 318i Convertible (E36) L4-1895cc 1.9L DOHC (M44) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Central Electronics Box >> Sub-System Diagram

Sub-System Diagram

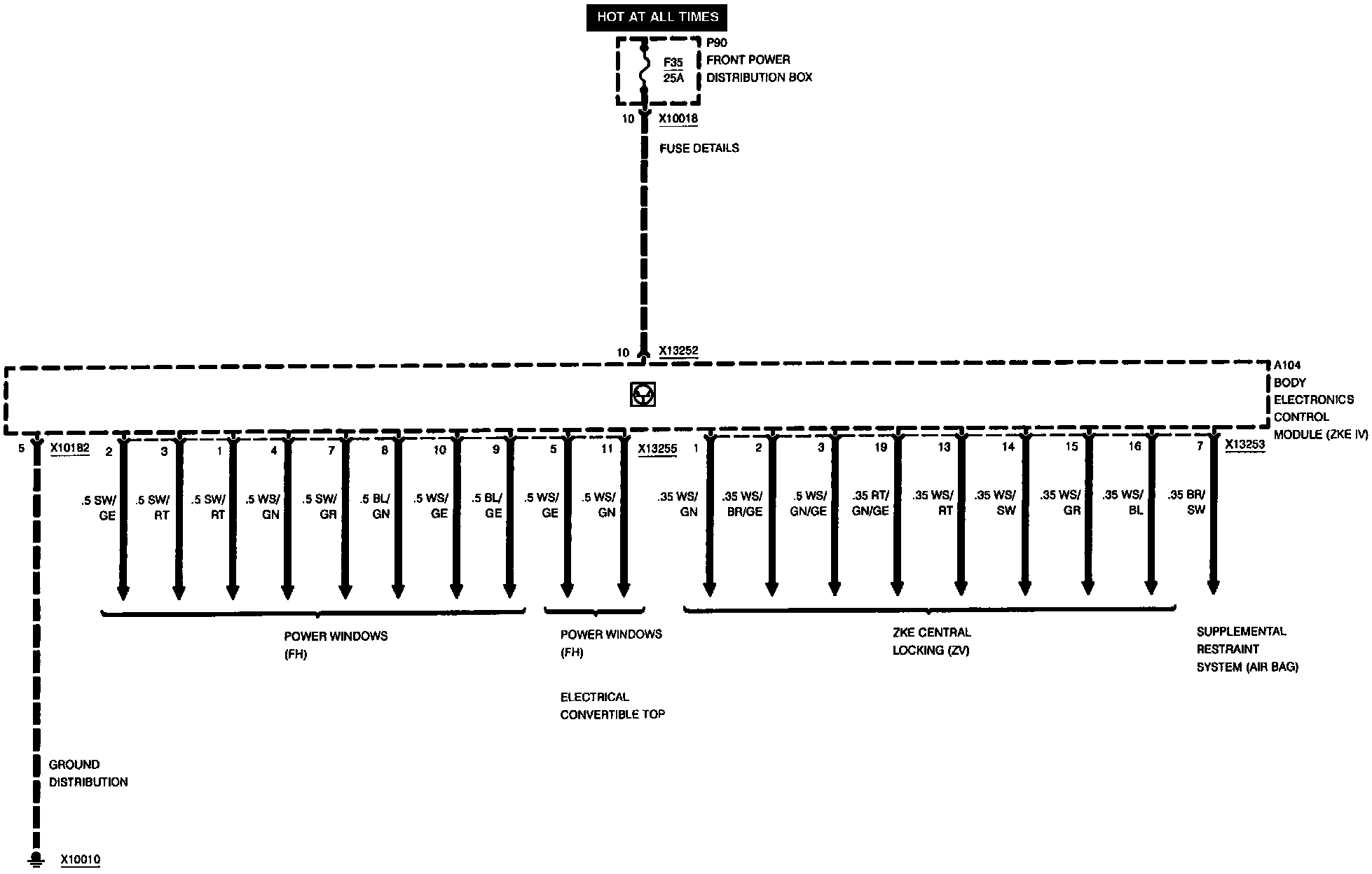

Central Body Electronic (ZKE IV): Sub-System Diagram:

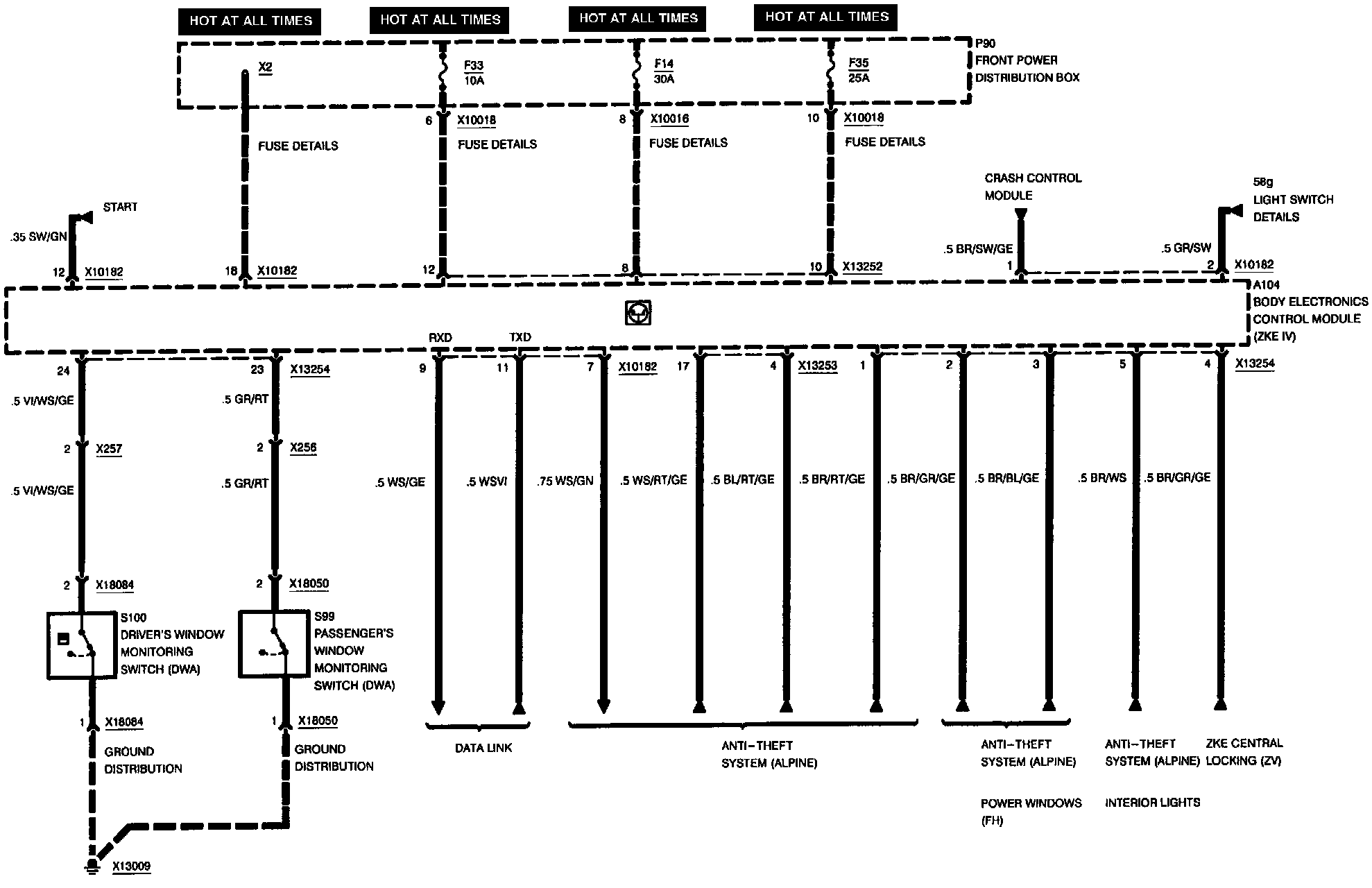

Central Body Electronic (ZKE IV): Sub-System Diagram:

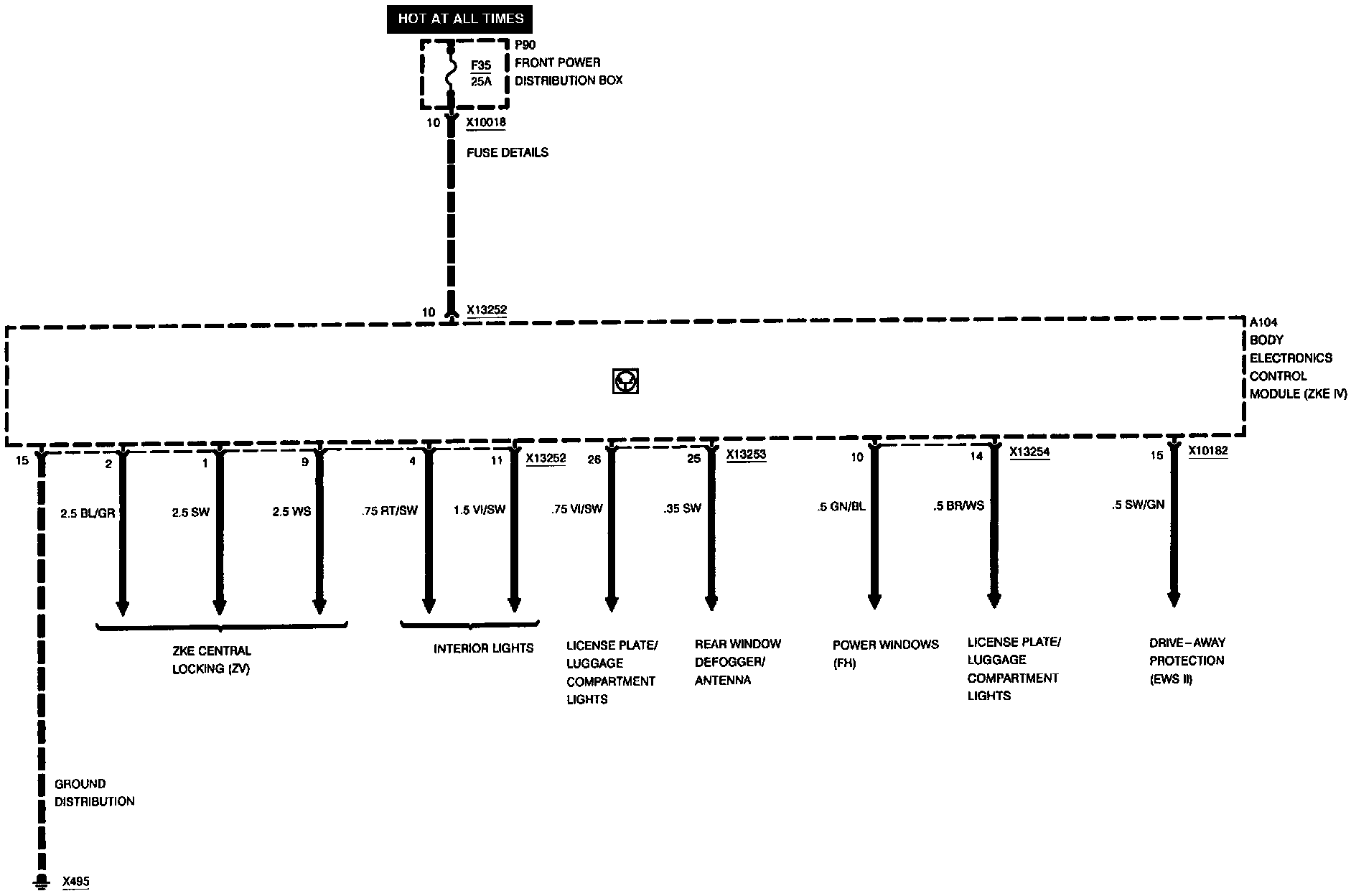

Central Body Electronic (ZKE IV): Sub-System Diagram:






Central Body Electronic (ZKE IV): Sub-System Diagram:
