Pin Assignments

Connector Views:

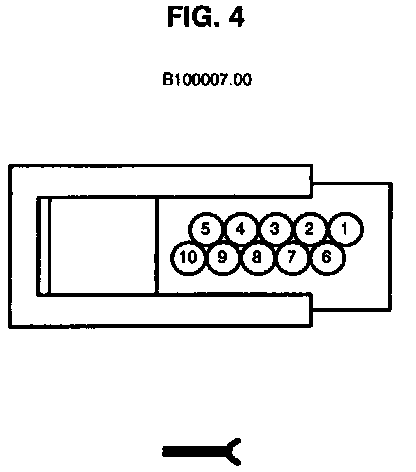

X13156 CONNECTOR (10 PINS, BLACK)

Connector Views:

X13157 CONNECTOR (6 PINS, BLACK)

Connector Views:

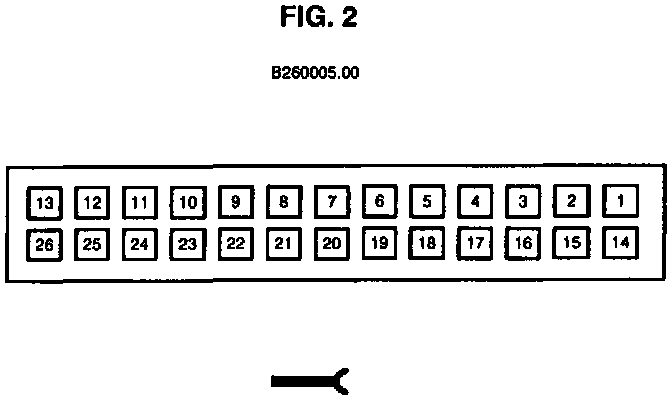

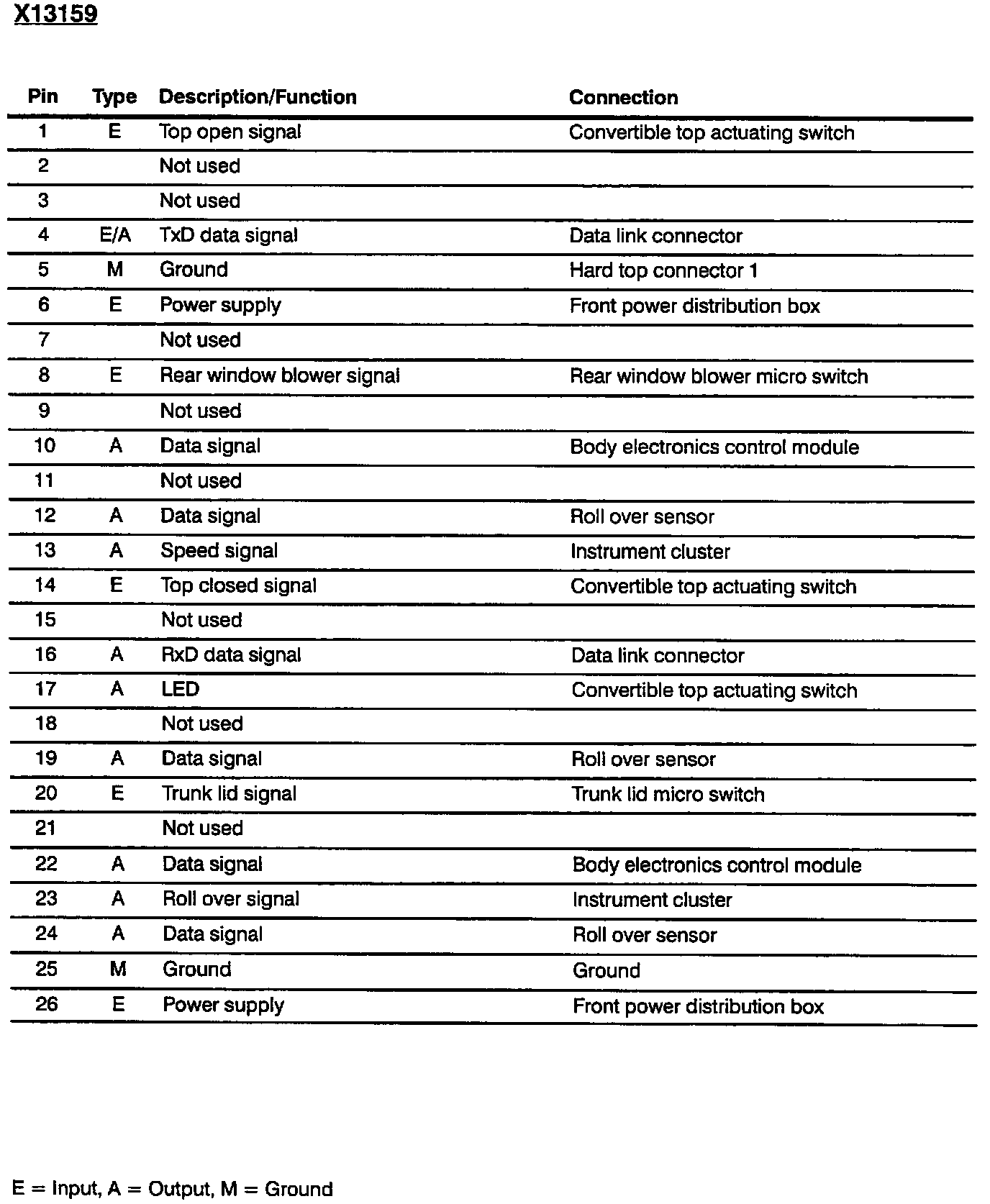

X13159 CONNECTOR (26 PINS, BLACK)

Connector Views:

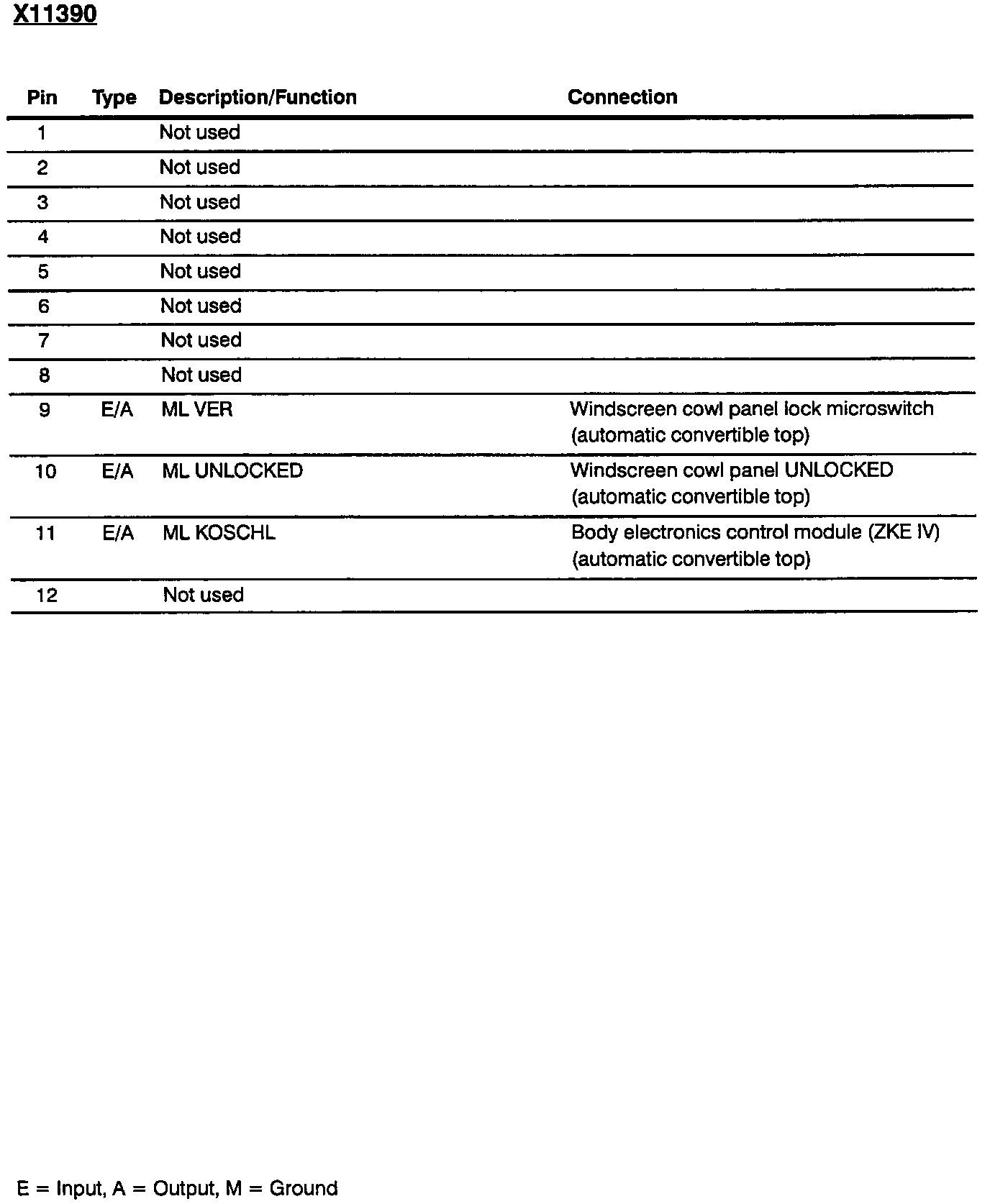

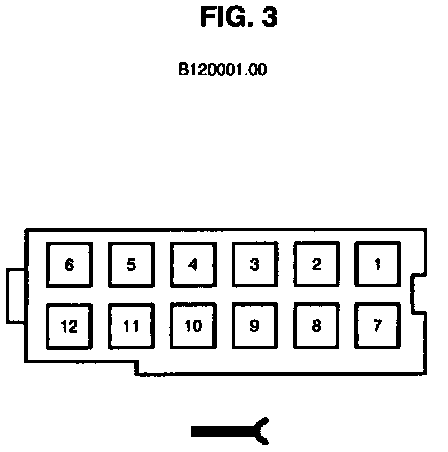

X11390 CONNECTOR (12 PINS, BLACK)

Electrical Convertible Top: Pin Assignment:

Electrical Convertible Top: Pin Assignment:

Electrical Convertible Top: Pin Assignment:
