Shifter A/T: Service and Repair

Removing And Installing Selector Lever With Mounting Block - Version With Interlock/Shiftlock





- Unscrew fillister head screw (3 mm hexagon socket).
- Pull off handle with pull rod.





Installation Note:
- Button not pressed.

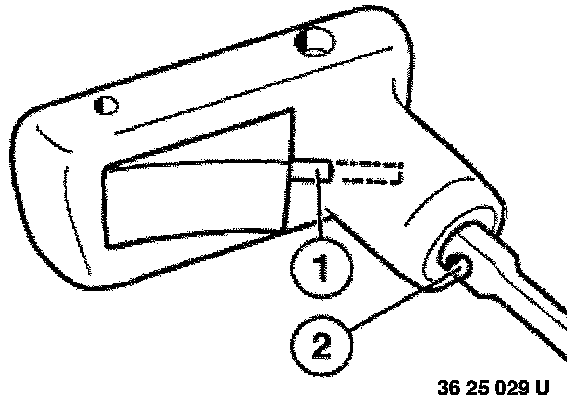

- Engage pin (1) of button in bore (2) of pull rod.

- Remove clock or on-board display.





- Remove bottom paneling.





- Remove cover for selector lever.
- Pull off switch connector (3) and display light (4).
