BMW
>>
1996
>>
M3 (E36) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Slip Control (ABS/ASC)
>>
Pin Assignments
Pin Assignments
Connector Views:

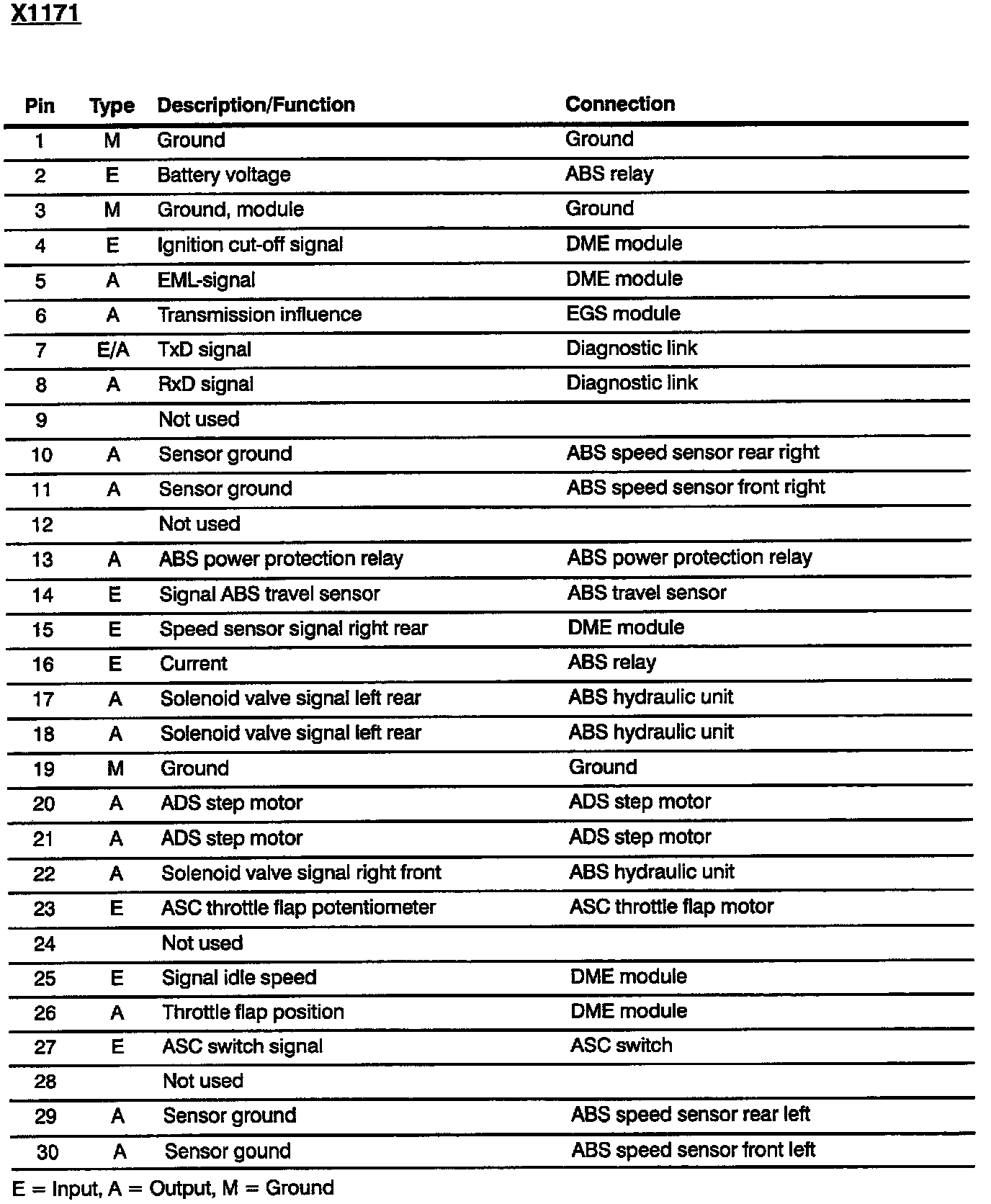

X1171: Connector (55-PINS, BLACK)
Slip Control (ABS/ASC): Pin Assignments:

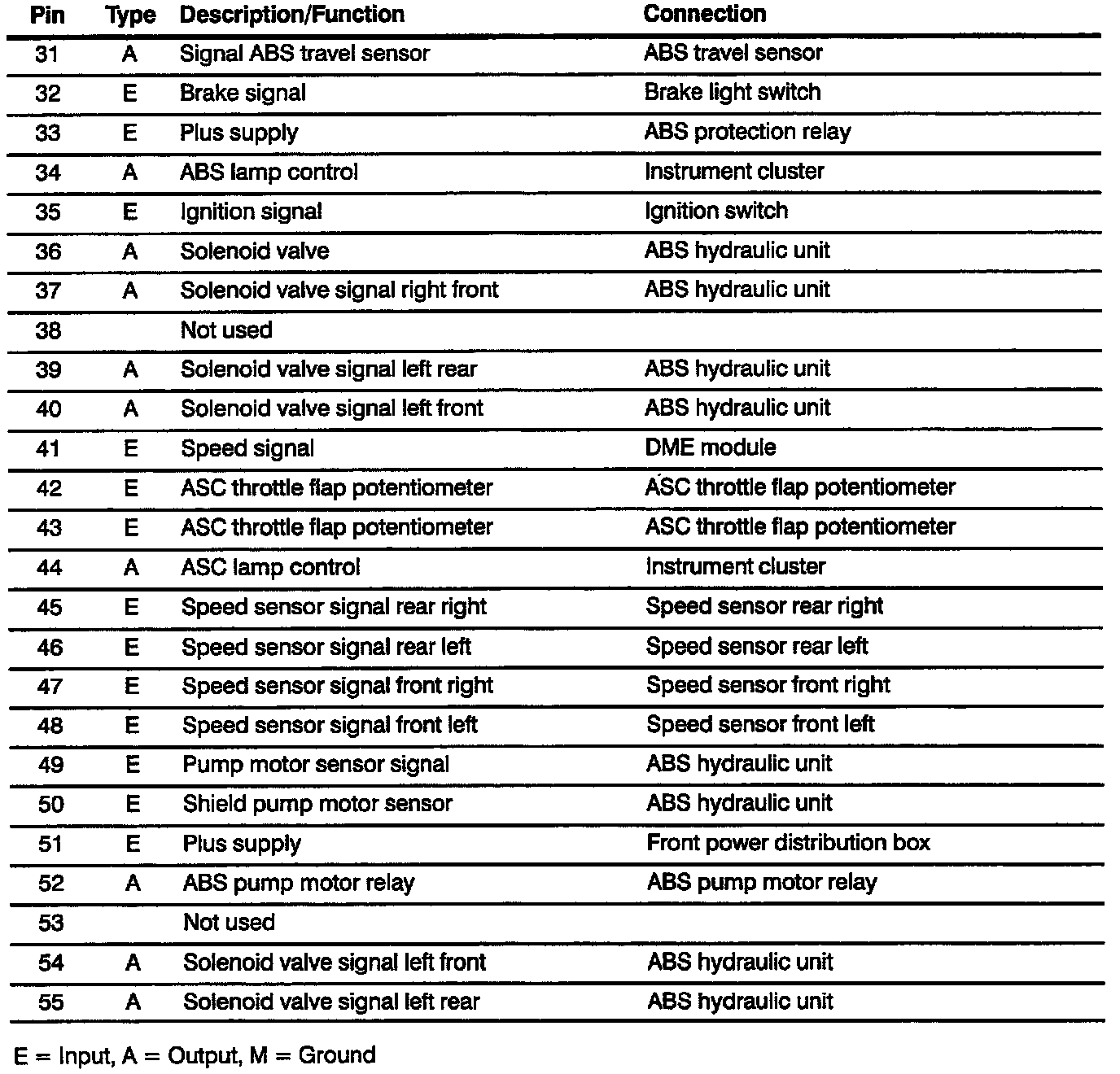

Slip Control (ABS/ASC): Pin Assignments:
