Rear Door Panel: Service and Repair

Removing and Installing Left or Right Rear Door Trim Panel

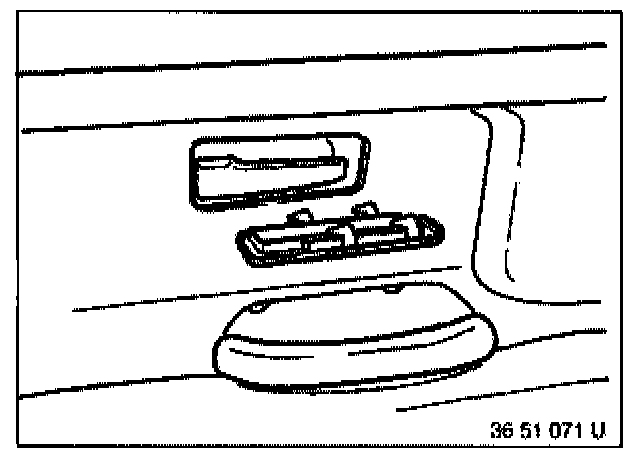

- Lever out finishers on grip shell and window crank.




- Unfasten screws.

- Remove window winder and grip recess plate.

- Unscrew door catch button.




Installation:
- If necessary, replace damaged grip recess plate.

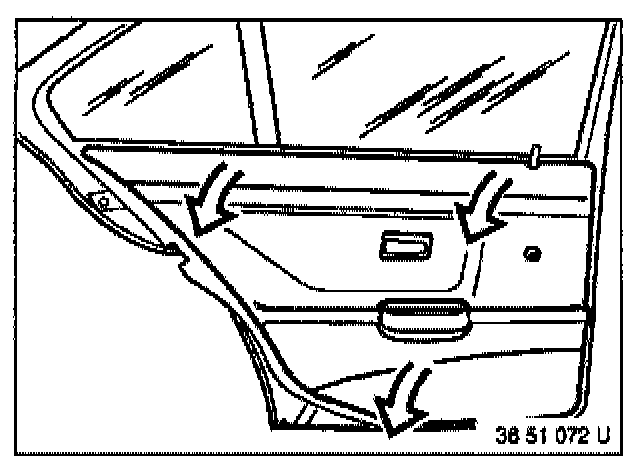

- Unclip door trim panel all round with special tool 00 9 318 (universal wedge).

Note:
- Begin unclipping at top.
- If necessary, disconnect plug connection on toggle switch for power windows.

Installation:
- If necessary, replace damaged clips.
