Shifter M/T: Service and Repair
-

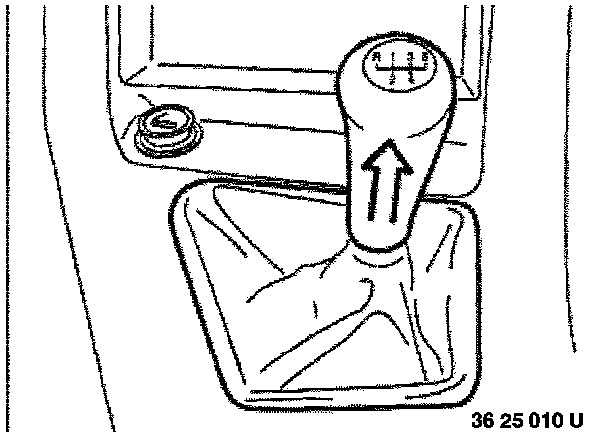

Pull shift lever knob off by hand with a sudden jerk.
-
Pulling-off force:
approx. 400 N
.
-

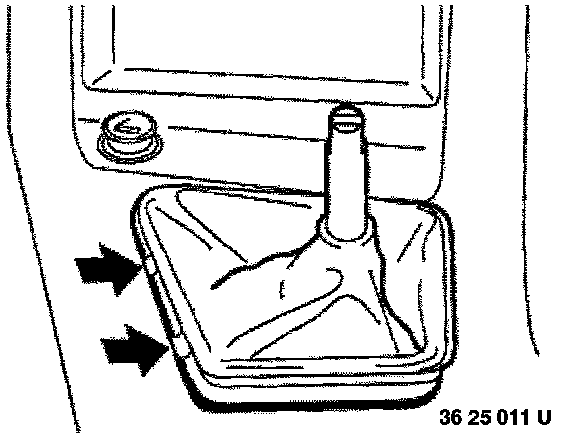

Lift and pull cover off shift lever.
