Home >> BMW >> 1996 >> 328i Convertible (E36) L6-2793cc 2.8L DOHC (M52) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Diagram Information and Instructions >> Introduction >> Fuse Information >> Fuse Details >> Fuses 10, 11, and 12

Fuses 10, 11, and 12

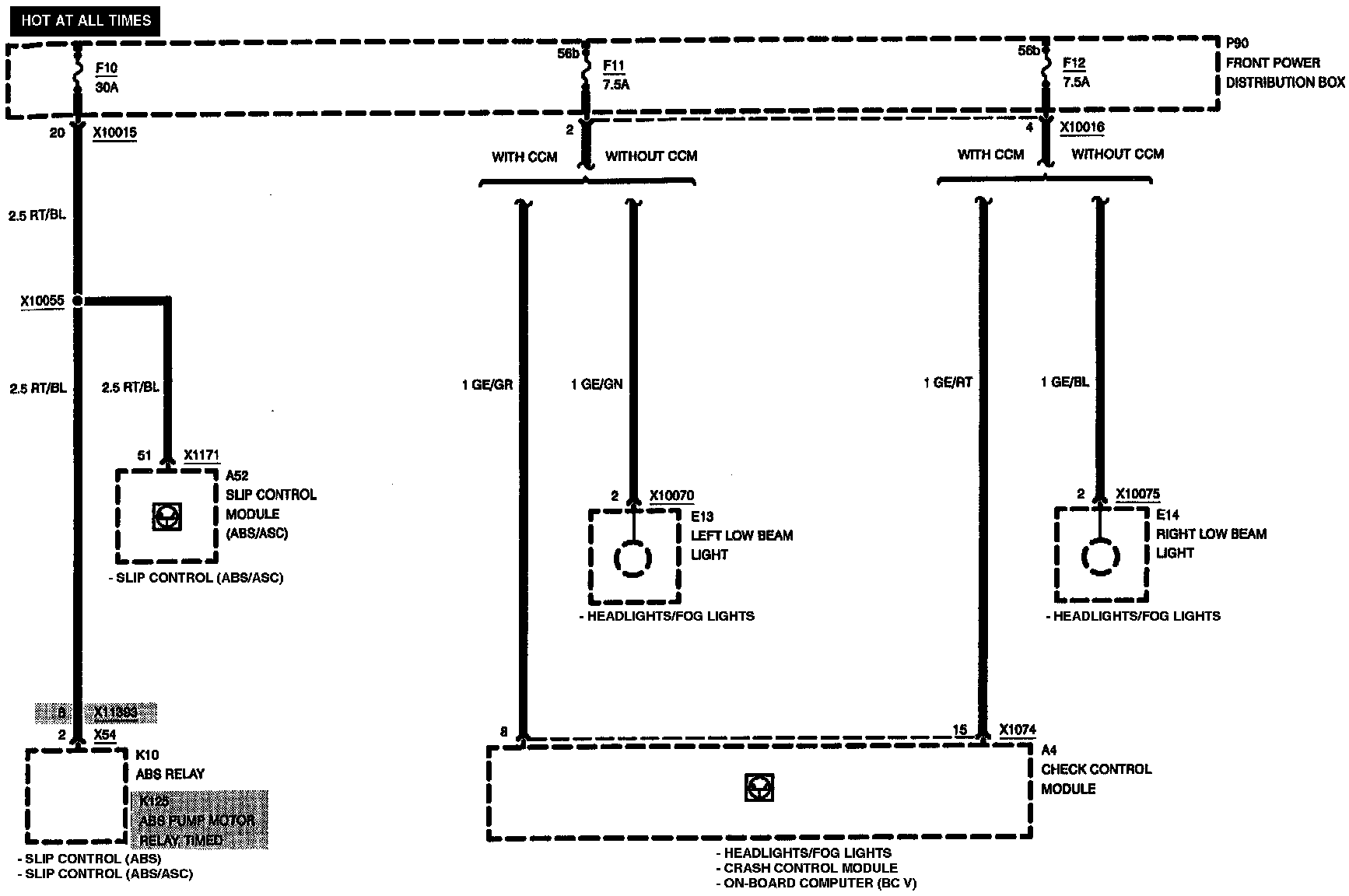

Fuse Details: Fuses 10, 11, And 12:
