Ground X13006

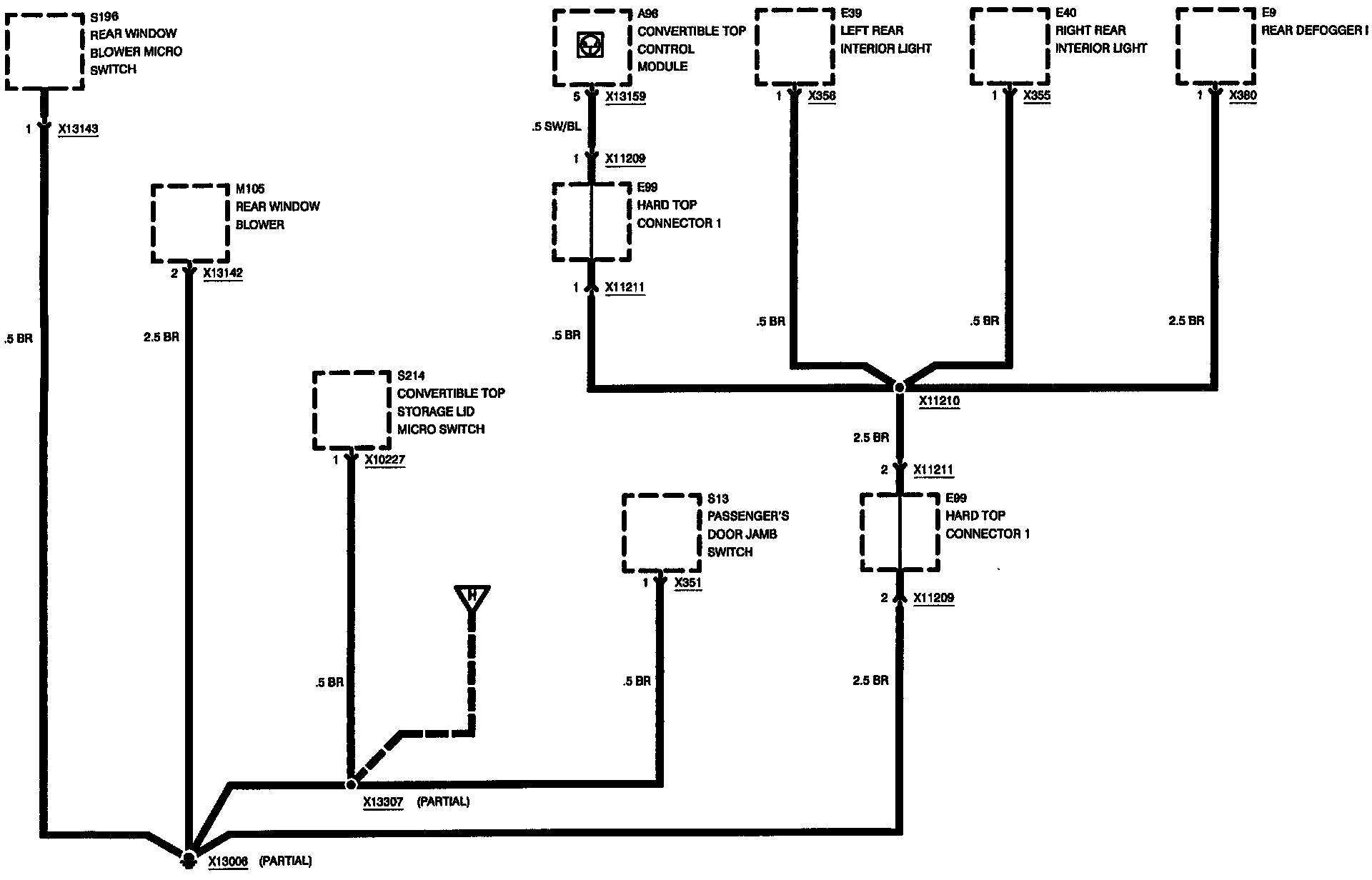

Ground Distribution: Ground X13006:




Ground Distribution: Ground X13006:




Ground Distribution: Ground X13006:
