Data Link Connector
>>
TXD, Pin 20 and 2, Pin 17
TXD, Pin 20 and 2, Pin 17

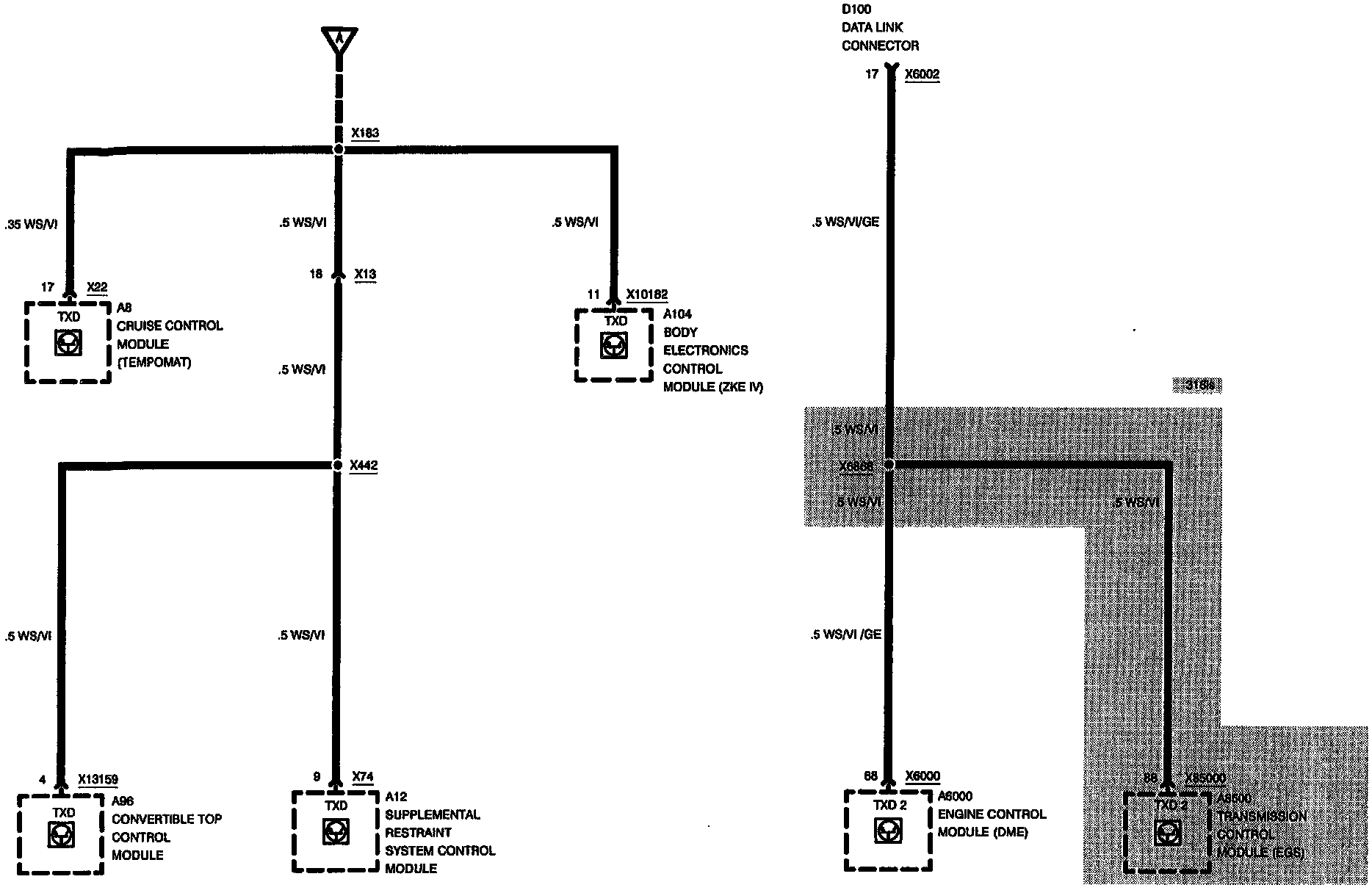

Data Link: TXD, Pin 20:
Data Link: TXD, Pin 20 And 2, Pin 17:
