328i Convertible (E36) L6-2793cc 2.8L DOHC (M52)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Data Link Connector Pins 2, 4, 7, 16, and 18
Data Link Connector Pins 2, 4, 7, 16, and 18

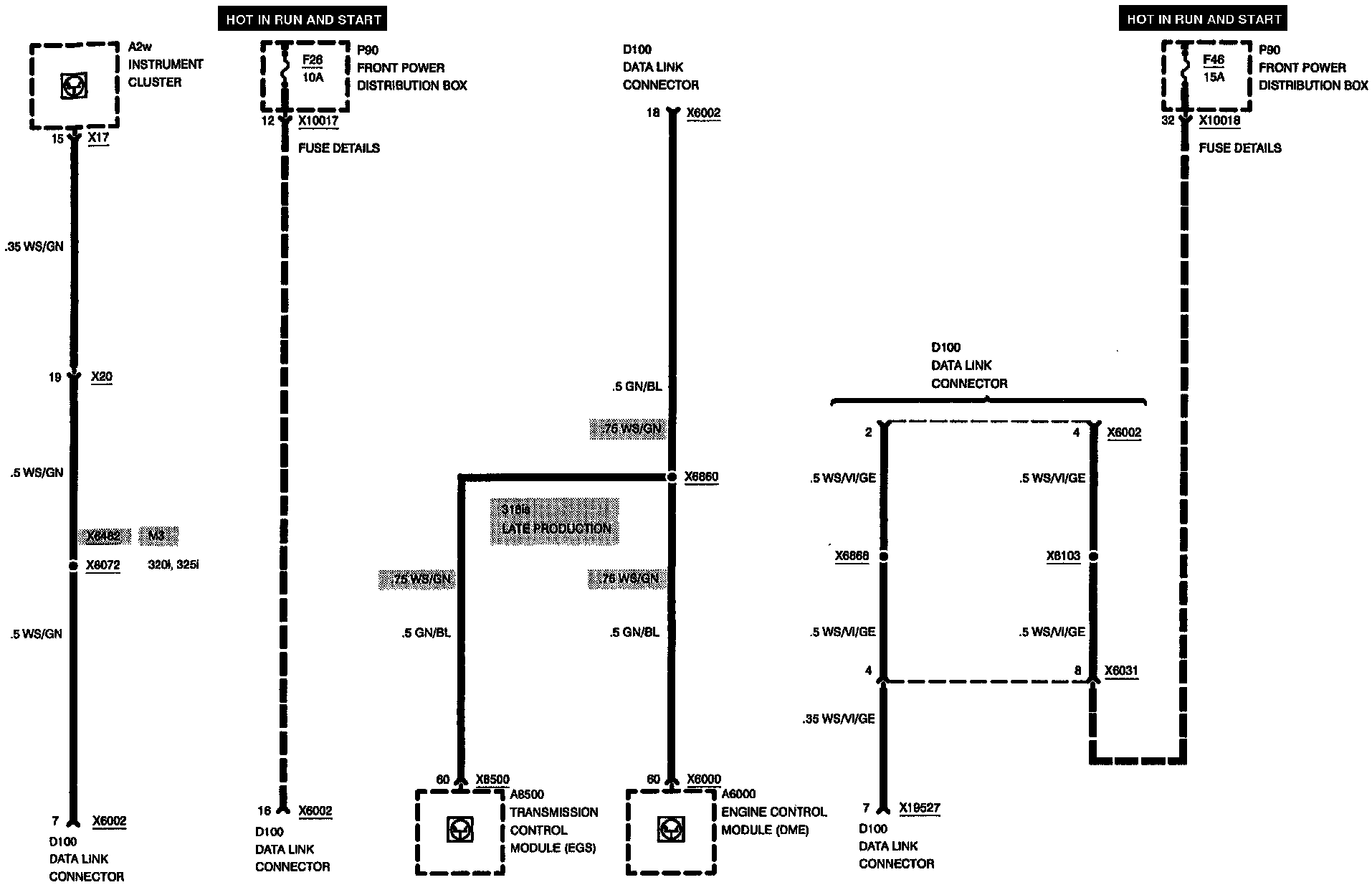

Data Link: Data Link Connector Pins 2, 4, 7, 16 And 18:
