Early Production

Connector Views:

X18155: Connector (26-PINS, WHITE)

Connector Views:

X18156: Connector (26-PINS, BLACK)

Connector Views:

X18157: Connector (26-PINS, BLUE)

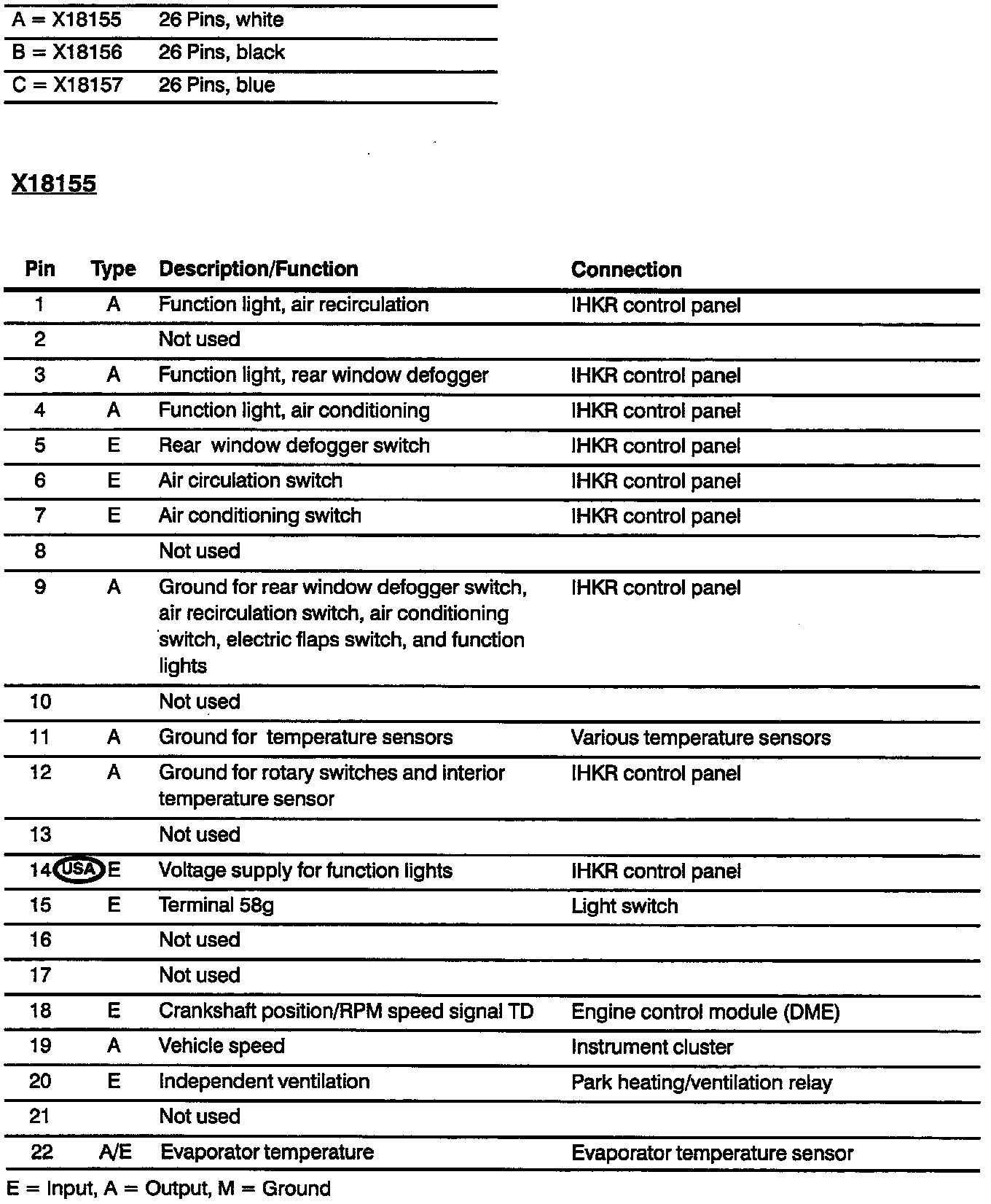

Integrated Climate Regulation (IHKR E36): Pin Assignments:

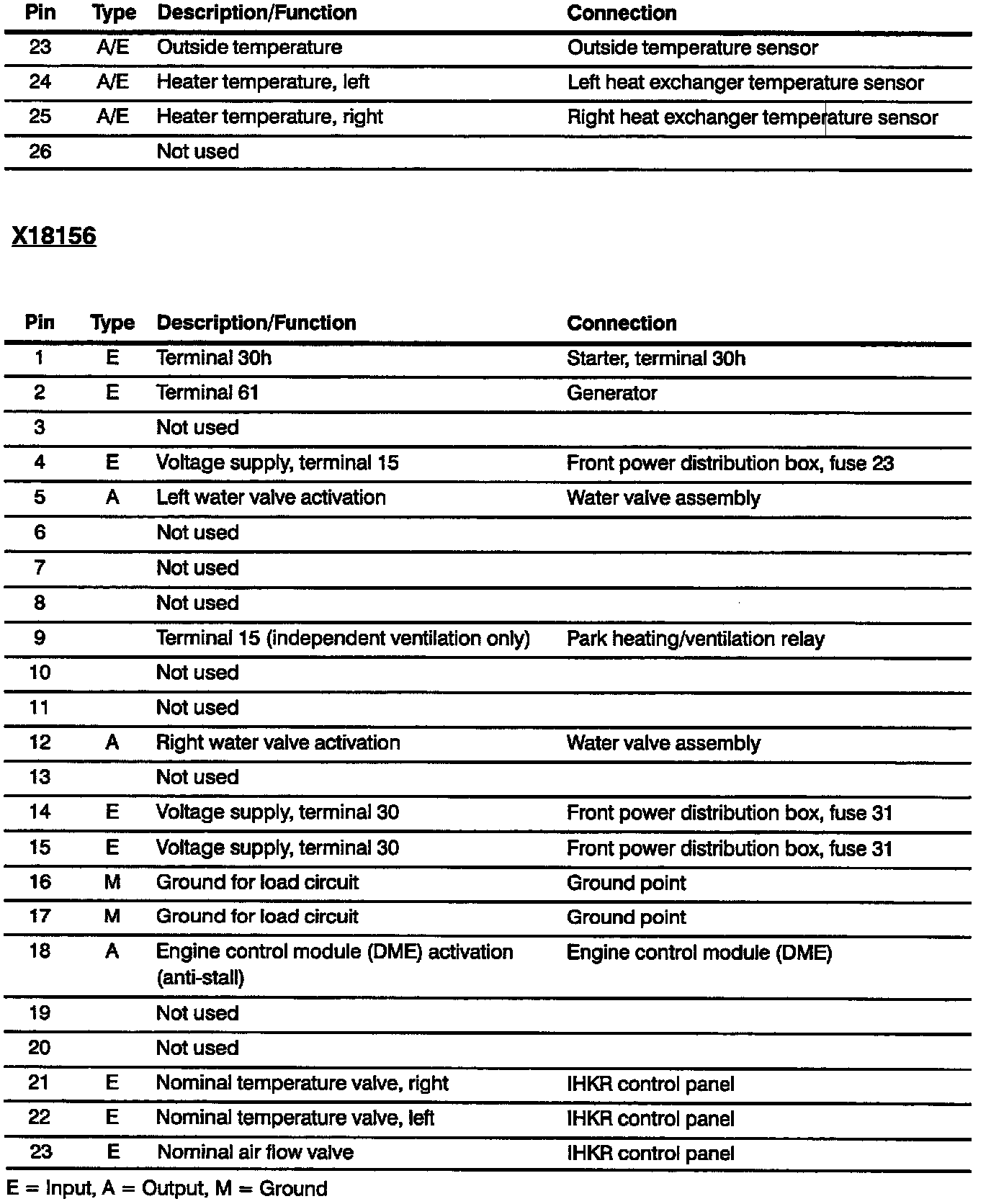

Integrated Climate Regulation (IHKR E36): Pin Assignments:

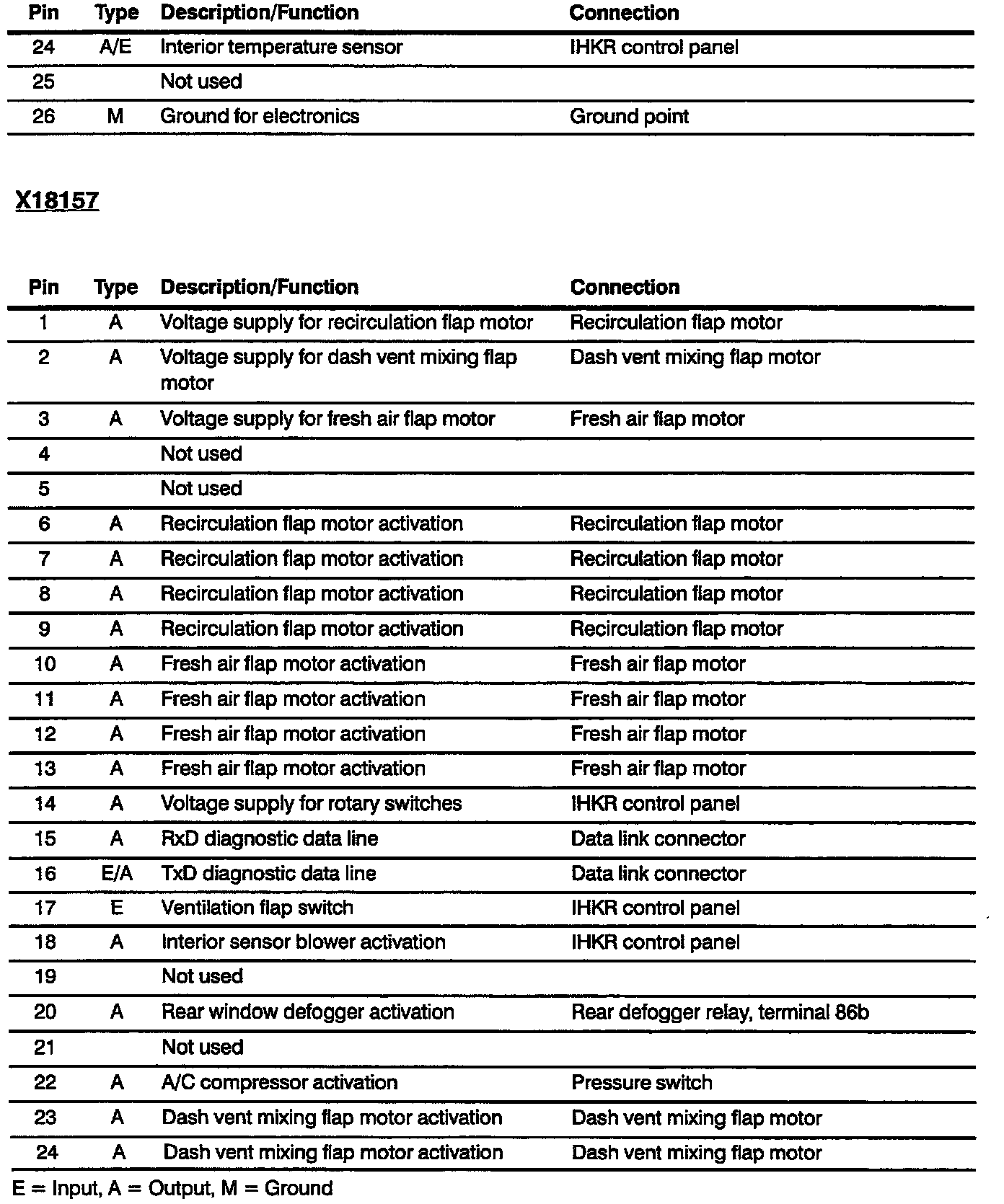

Integrated Climate Regulation (IHKR E36): Pin Assignments:

Integrated Climate Regulation (IHKR E36): Pin Assignments:
