Home >> BMW >> 1996 >> 328i Convertible (E36) L6-2793cc 2.8L DOHC (M52) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Slip Control (ABS) >> Slip Control (ABS)

Slip Control (ABS)

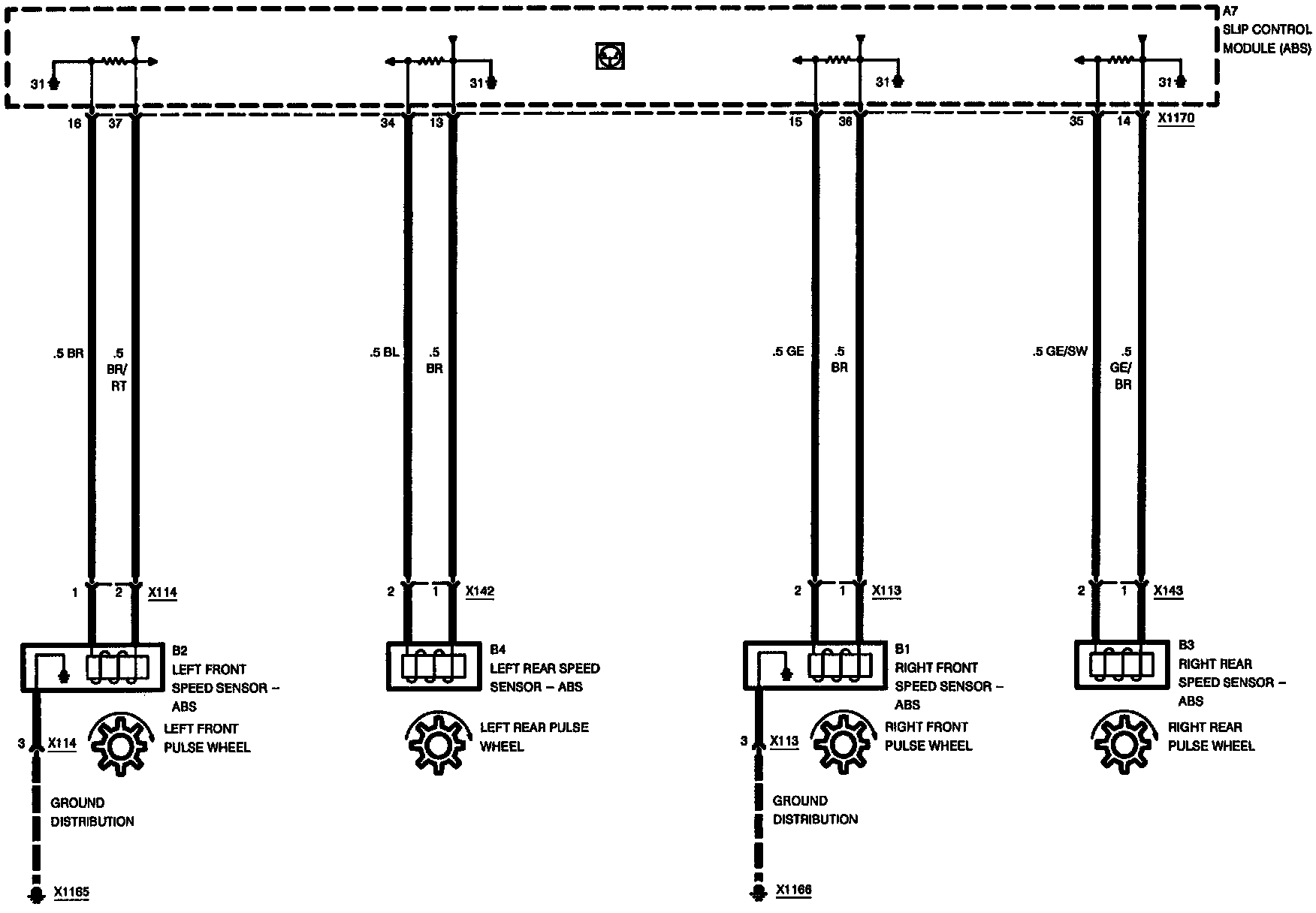

Slip Control (ABS):

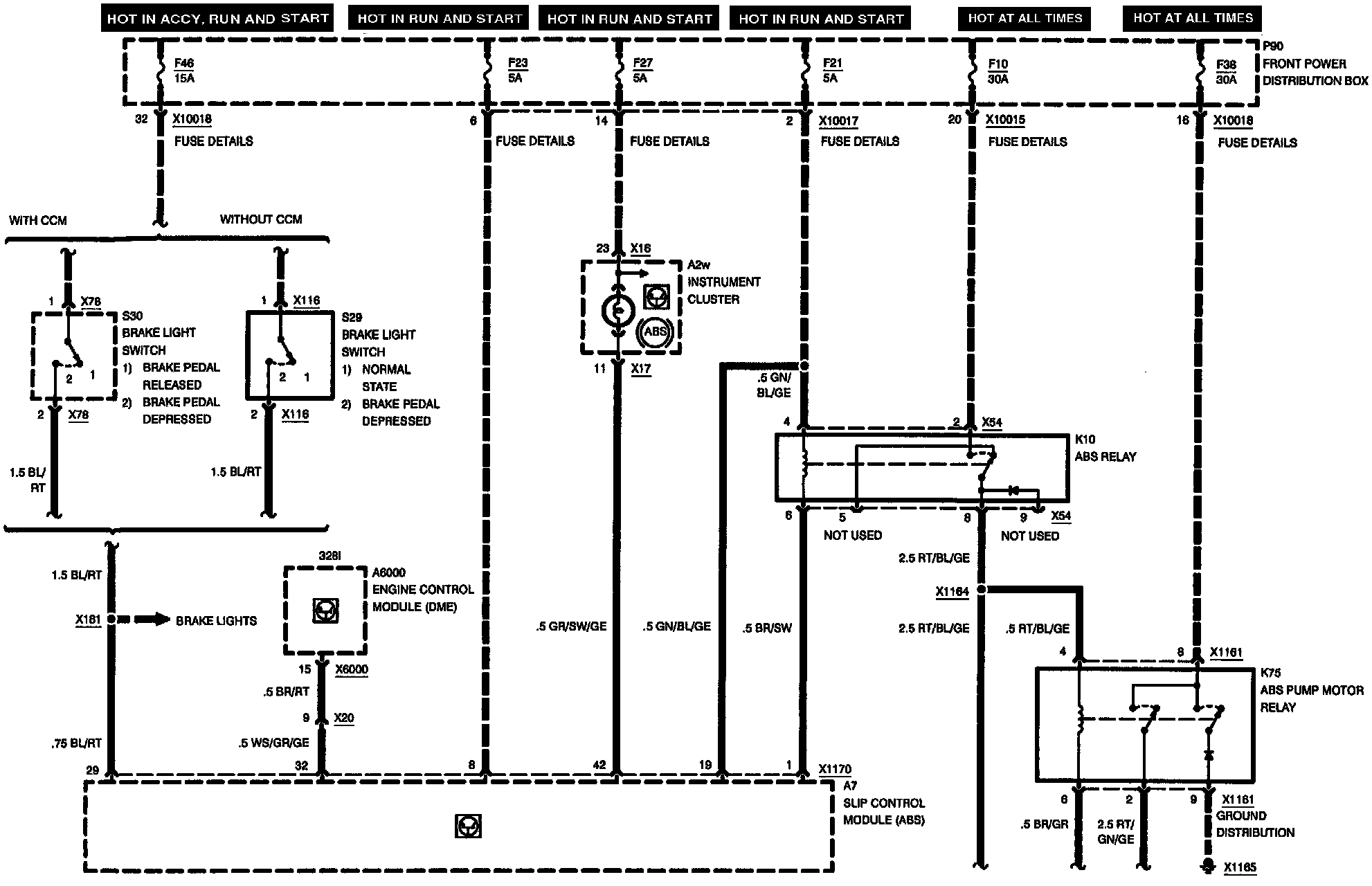

Slip Control (ABS):

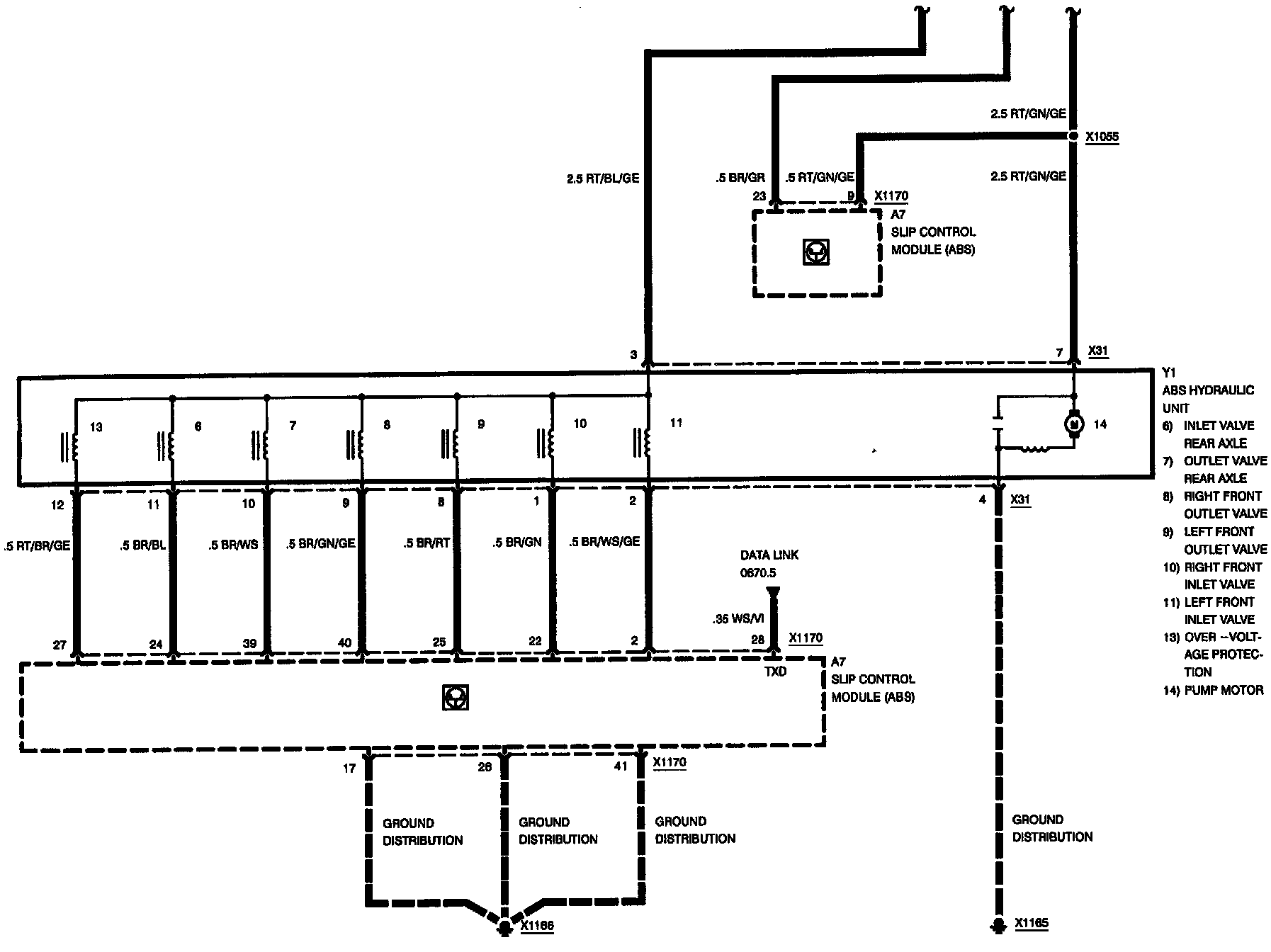

Slip Control (ABS):
