Sub-System Diagram

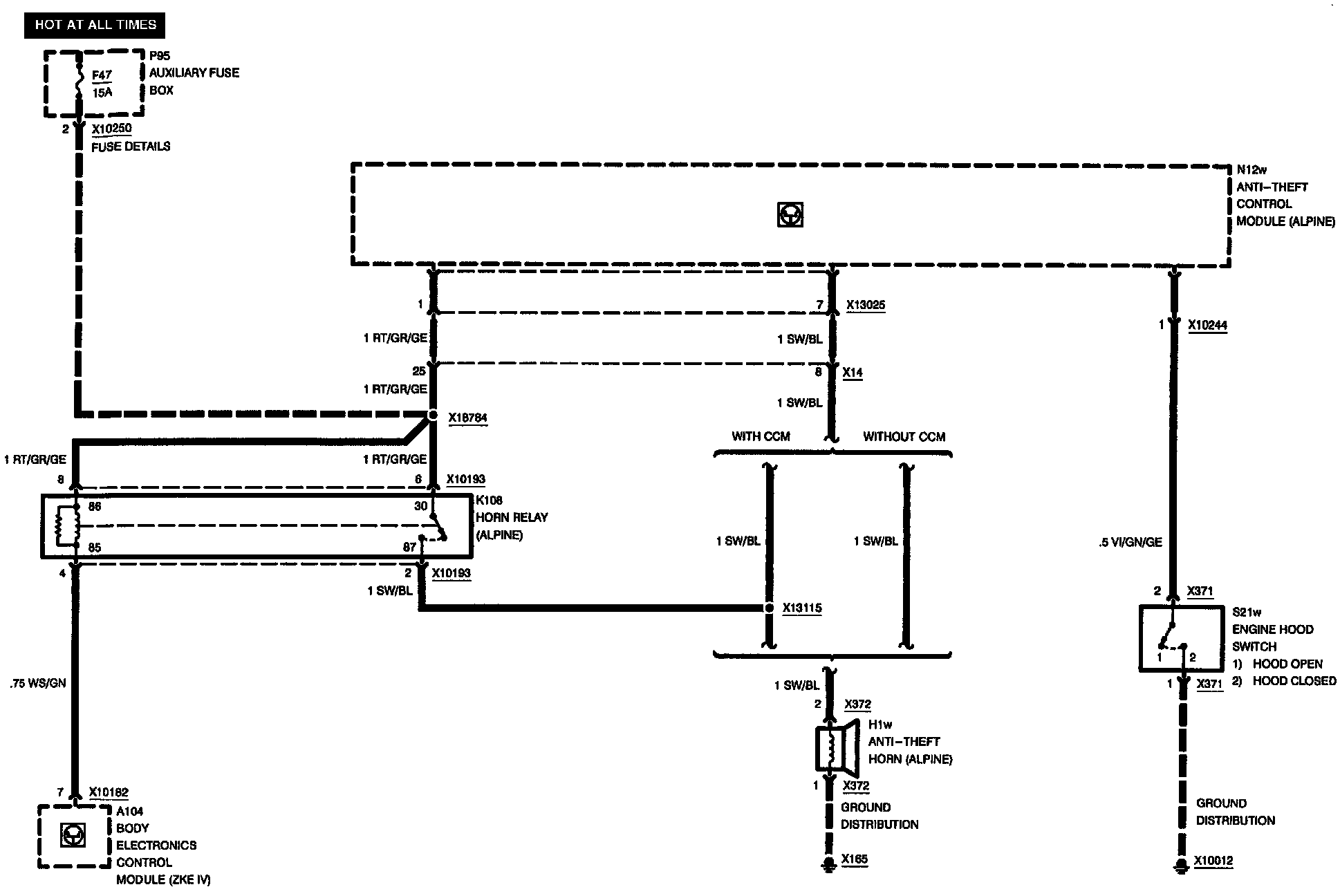

Anti-Theft System (Alpine): Sub-system Diagram:

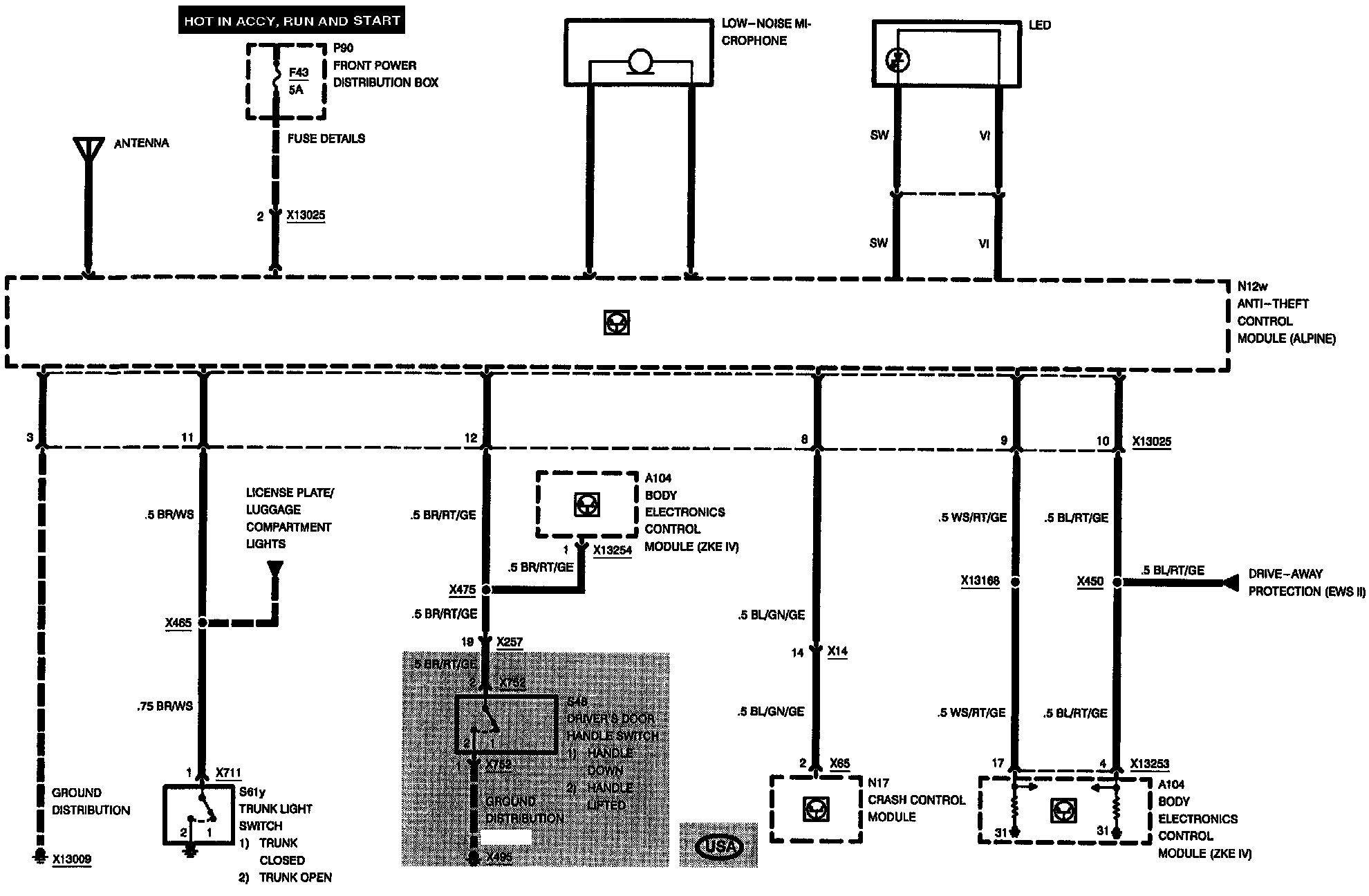

Anti-Theft System (Alpine): Sub-system Diagram:
