Throttle Position Sensor

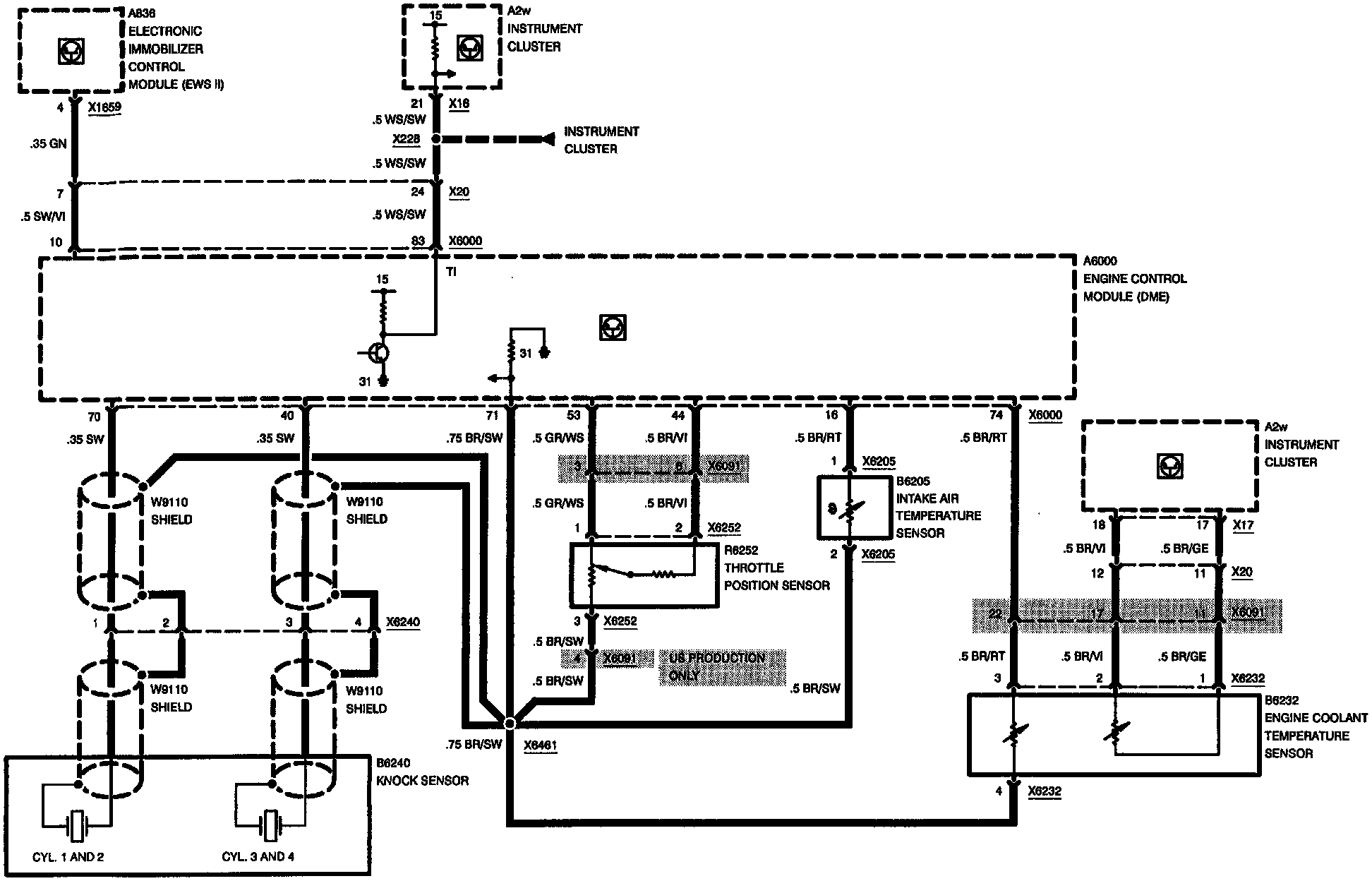

Engine Control System (DME M5.2, 4-Cylinder M44): Throttle Position Sensor:
