Home >> BMW >> 1995 >> 525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> ZKE Power Windows (FH) >> Input Details

Input Details

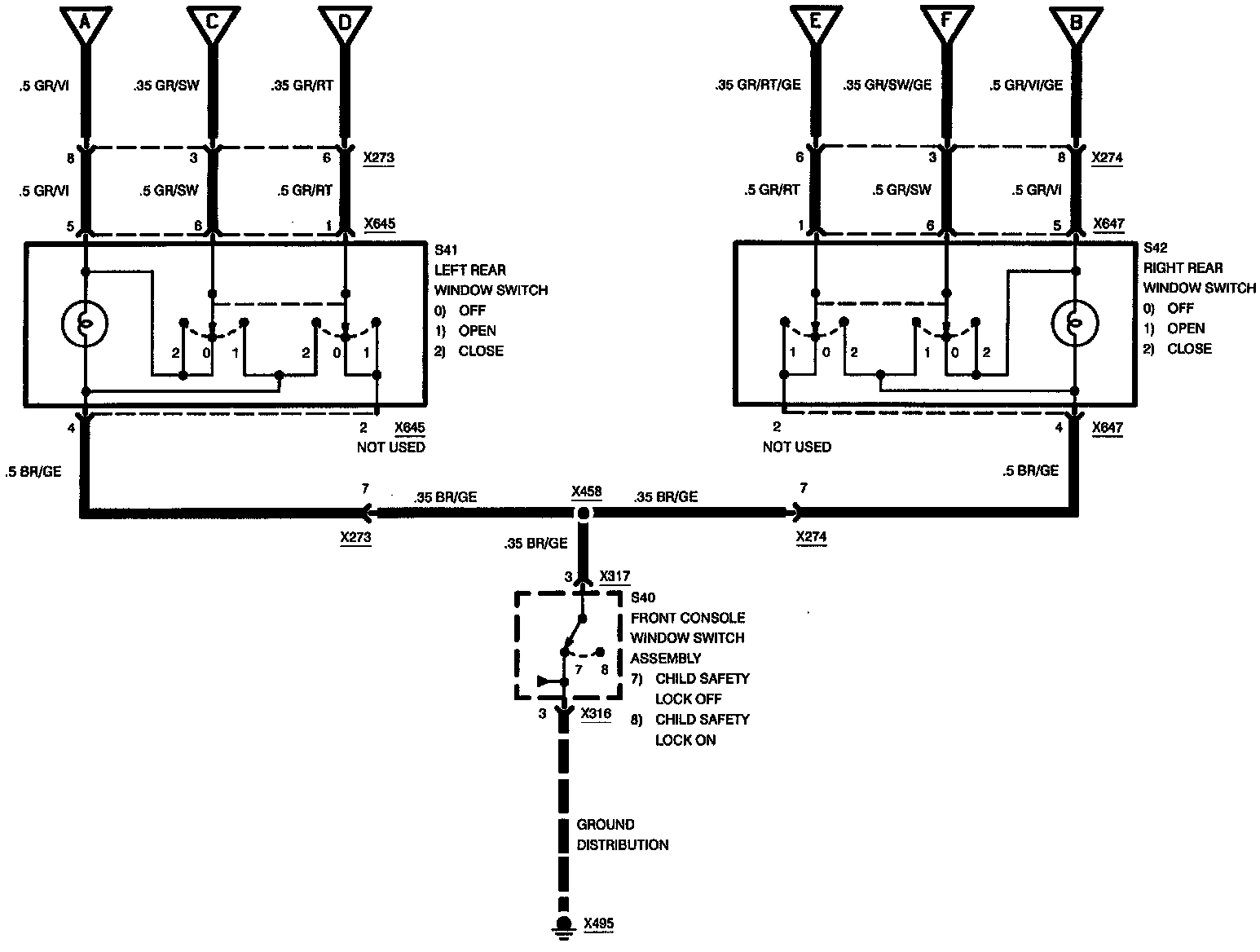

ZKE Power Windows (FH): Input Details:

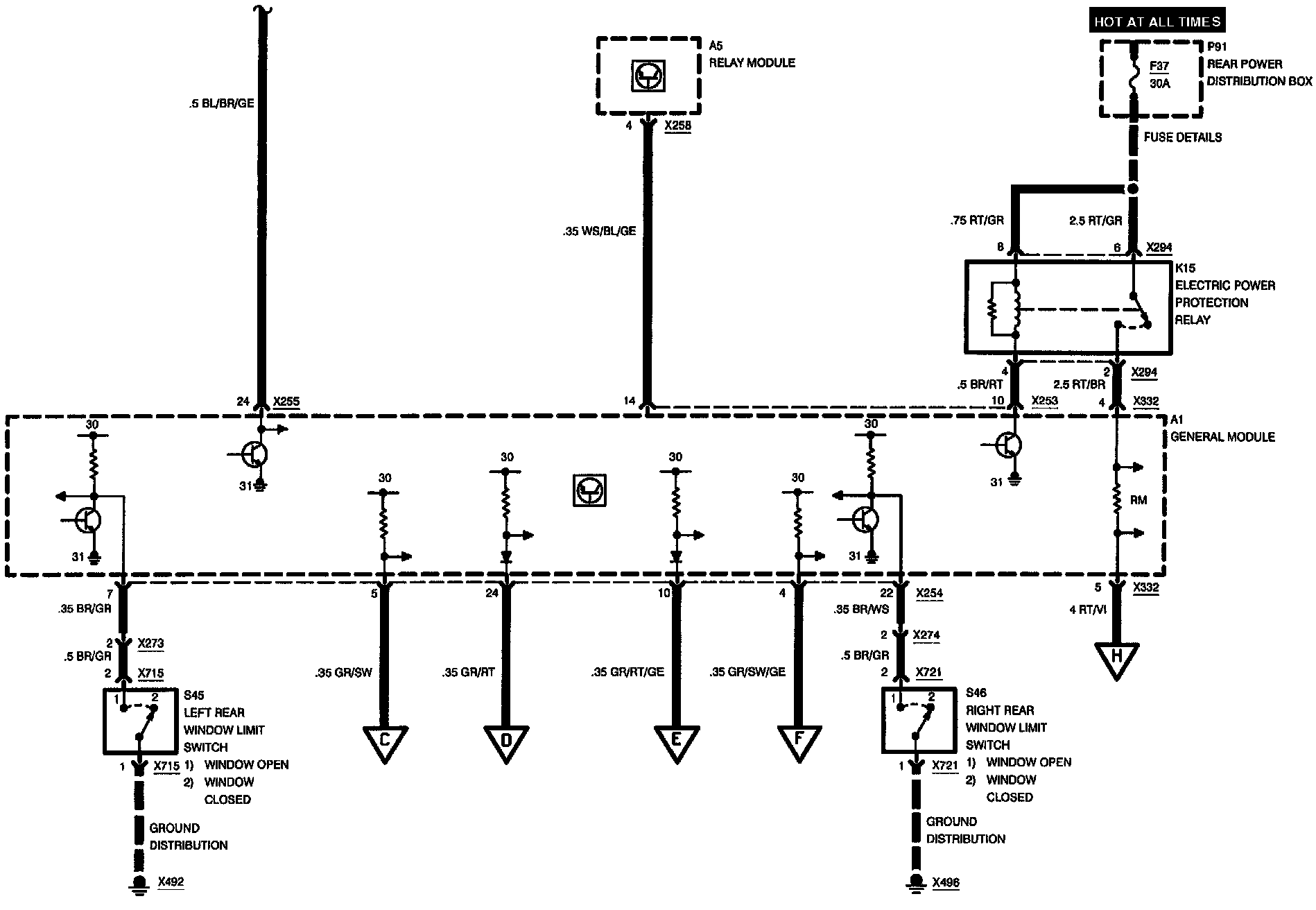

ZKE Power Windows (FH): Input Details:

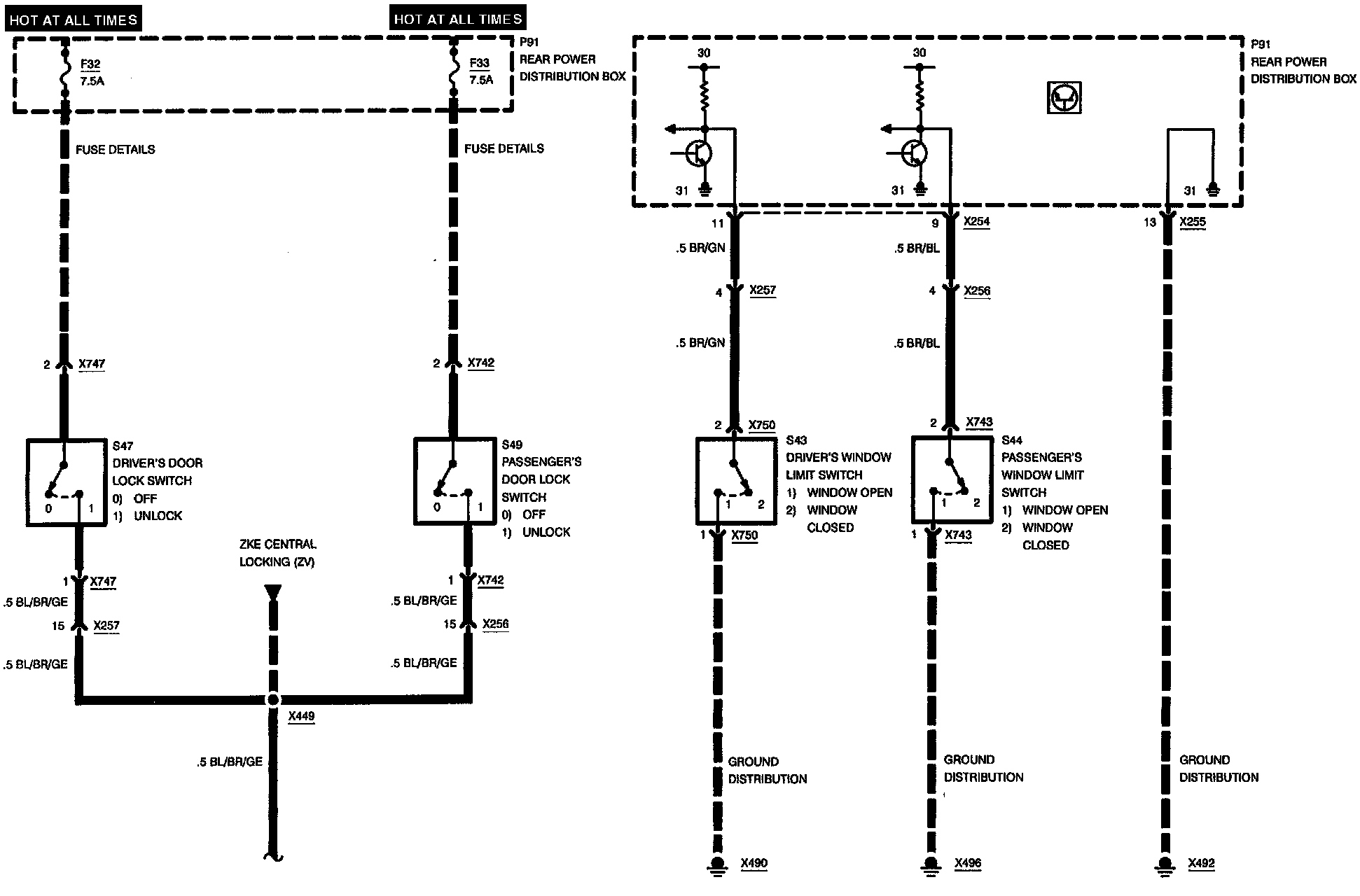

ZKE Power Windows (FH): Inputs Details:

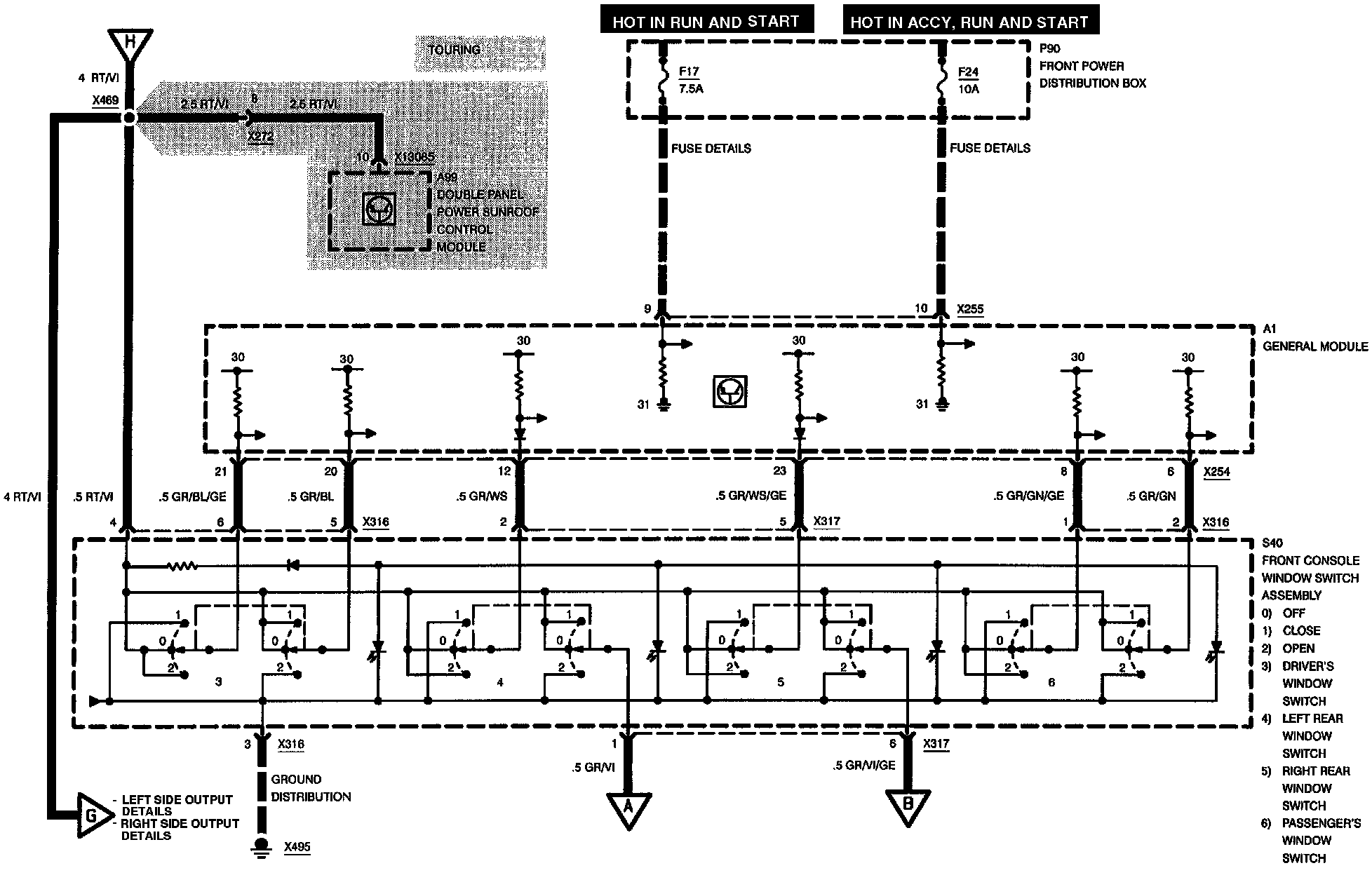

ZKE Power Windows (FH): Inputs Details:
