Home >> BMW >> 1995 >> 525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> X491

X491

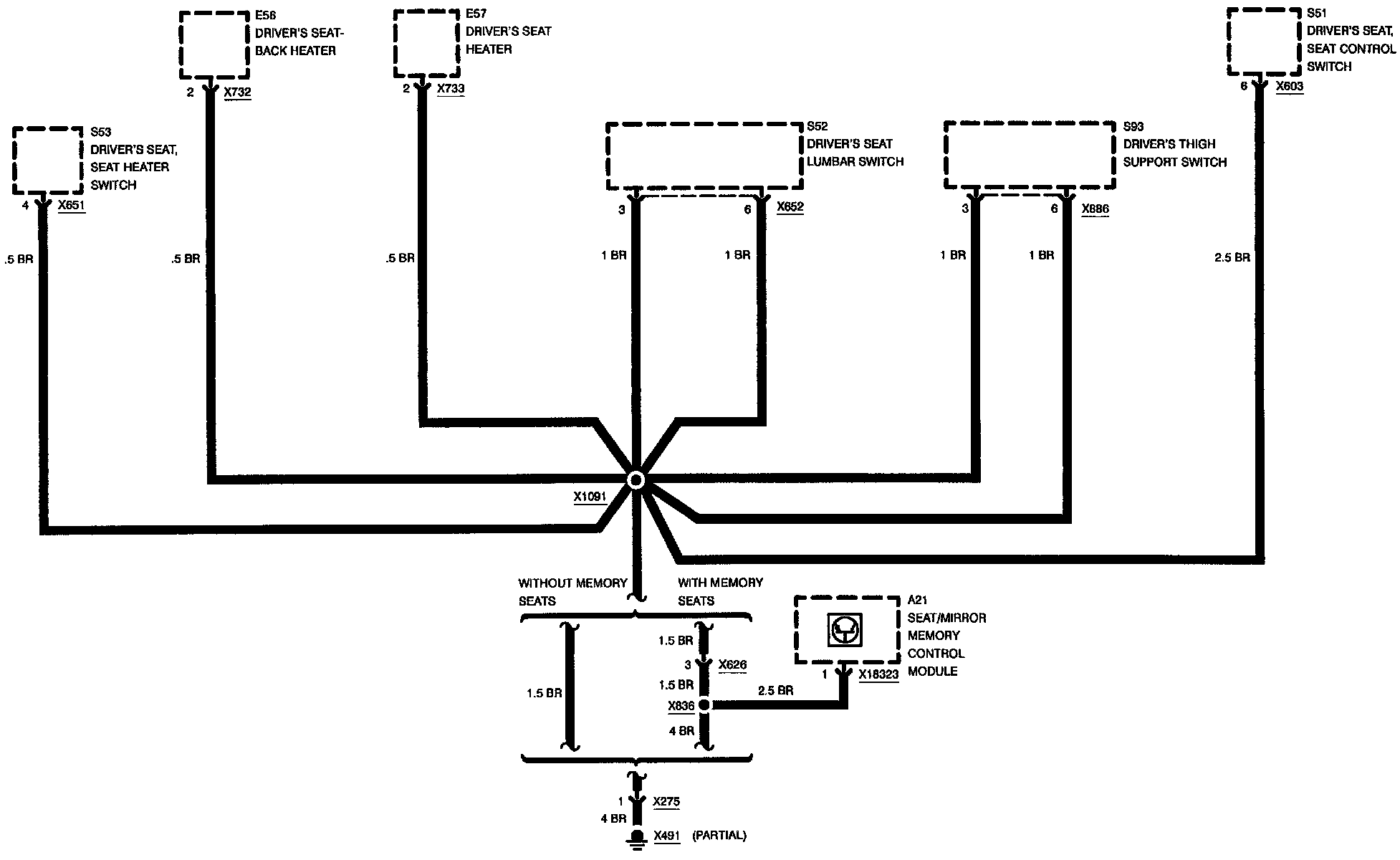

Ground Distribution: Ground X491:

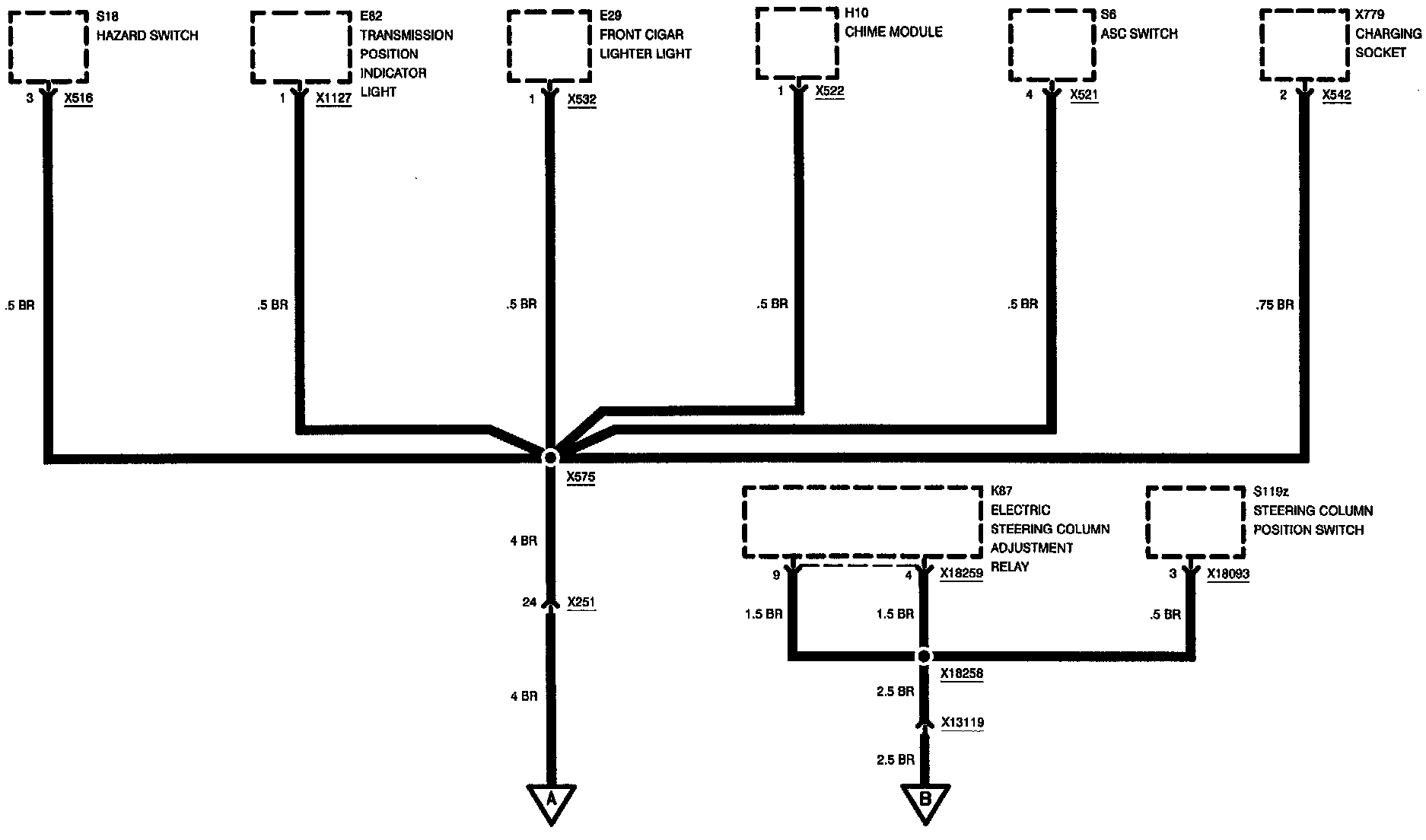

Ground Distribution: Ground X491:

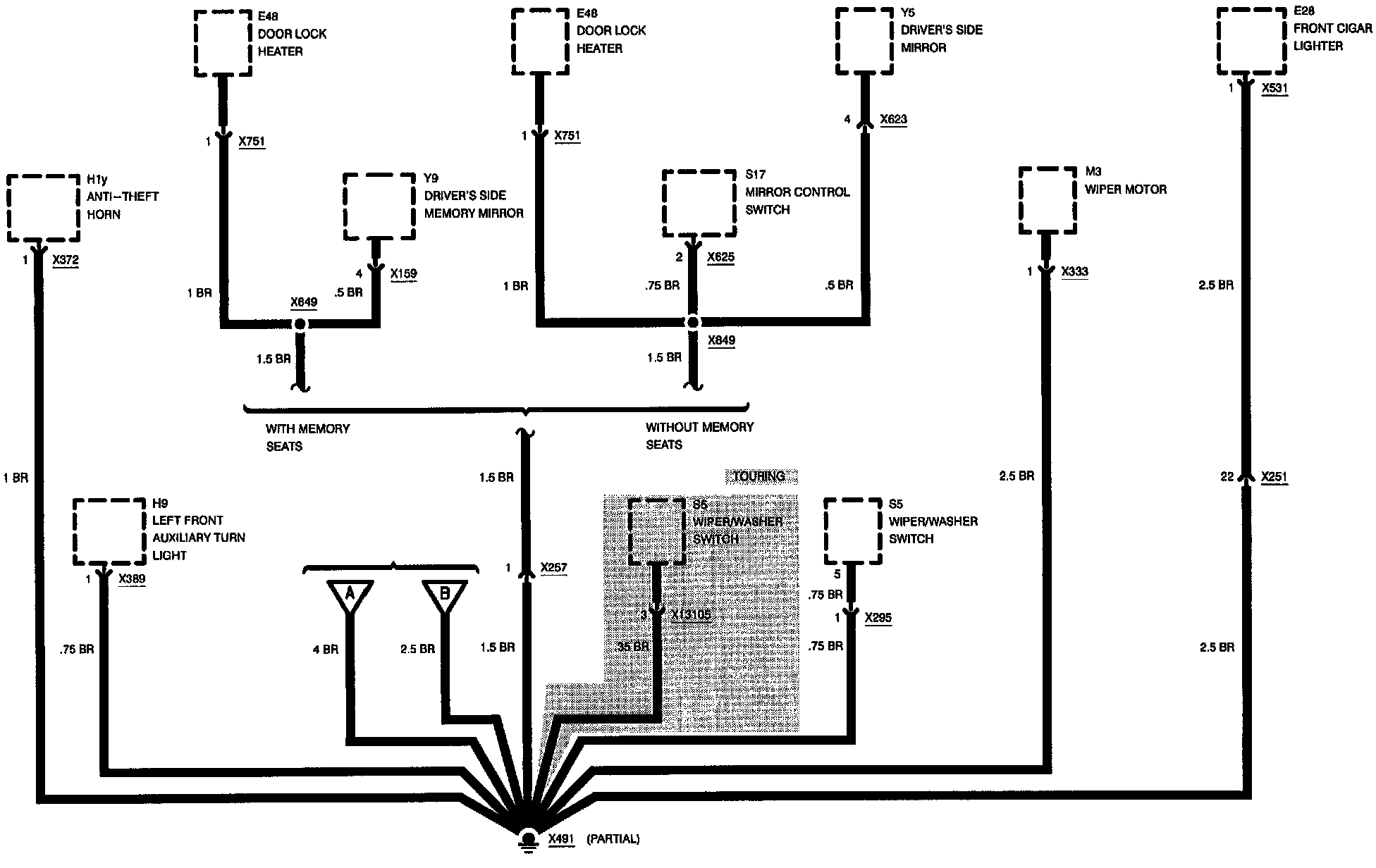

Ground Distribution: Ground X491:
