Pin Assignments

Connector Views:




X8500 CONNECTOR (88-PINS, BLACK)

X8500 CONNECTOR (55-PINS, BLACK)

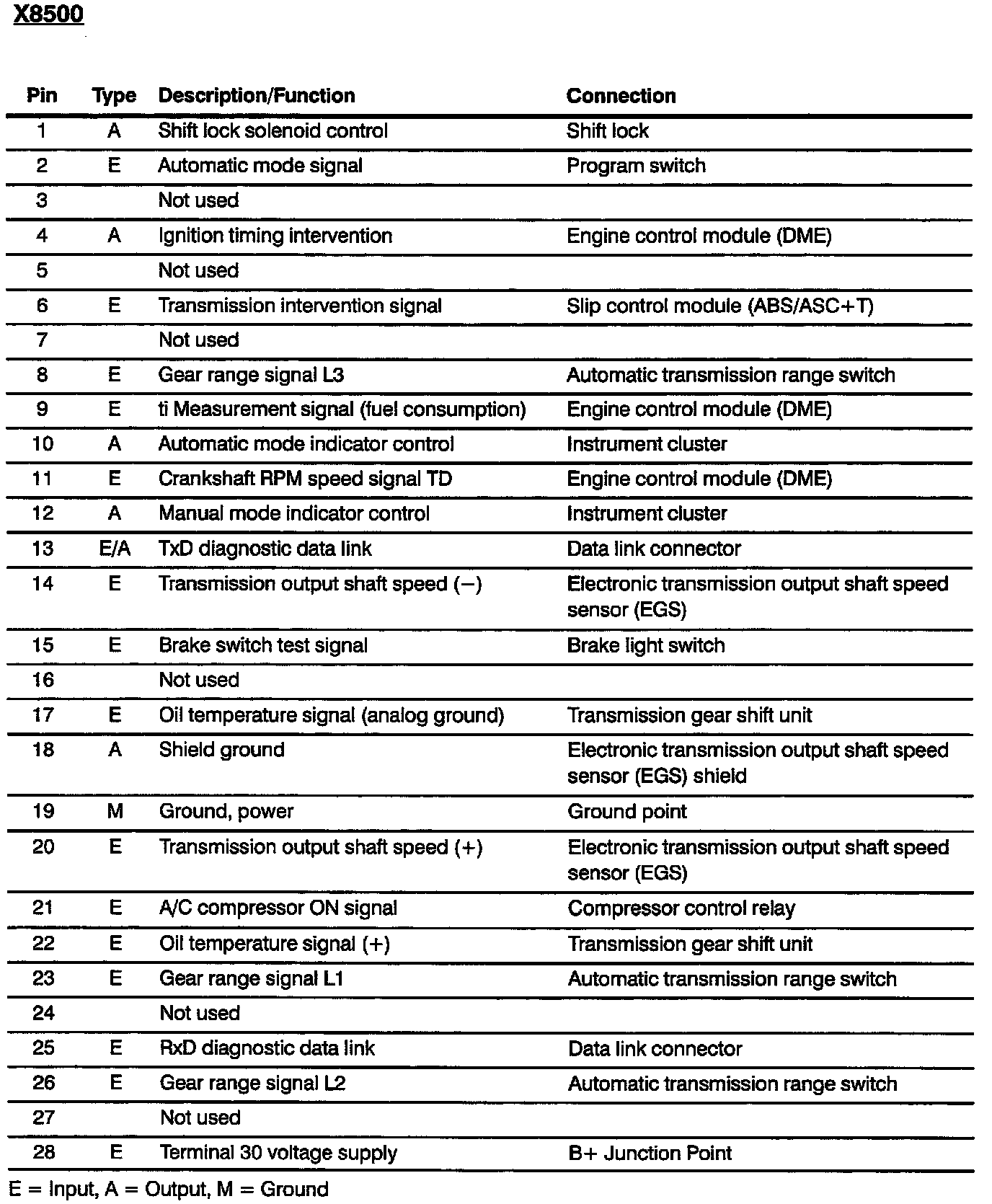

Electronic Transmission Control (EGS A4S 310R): Pin Assignments:

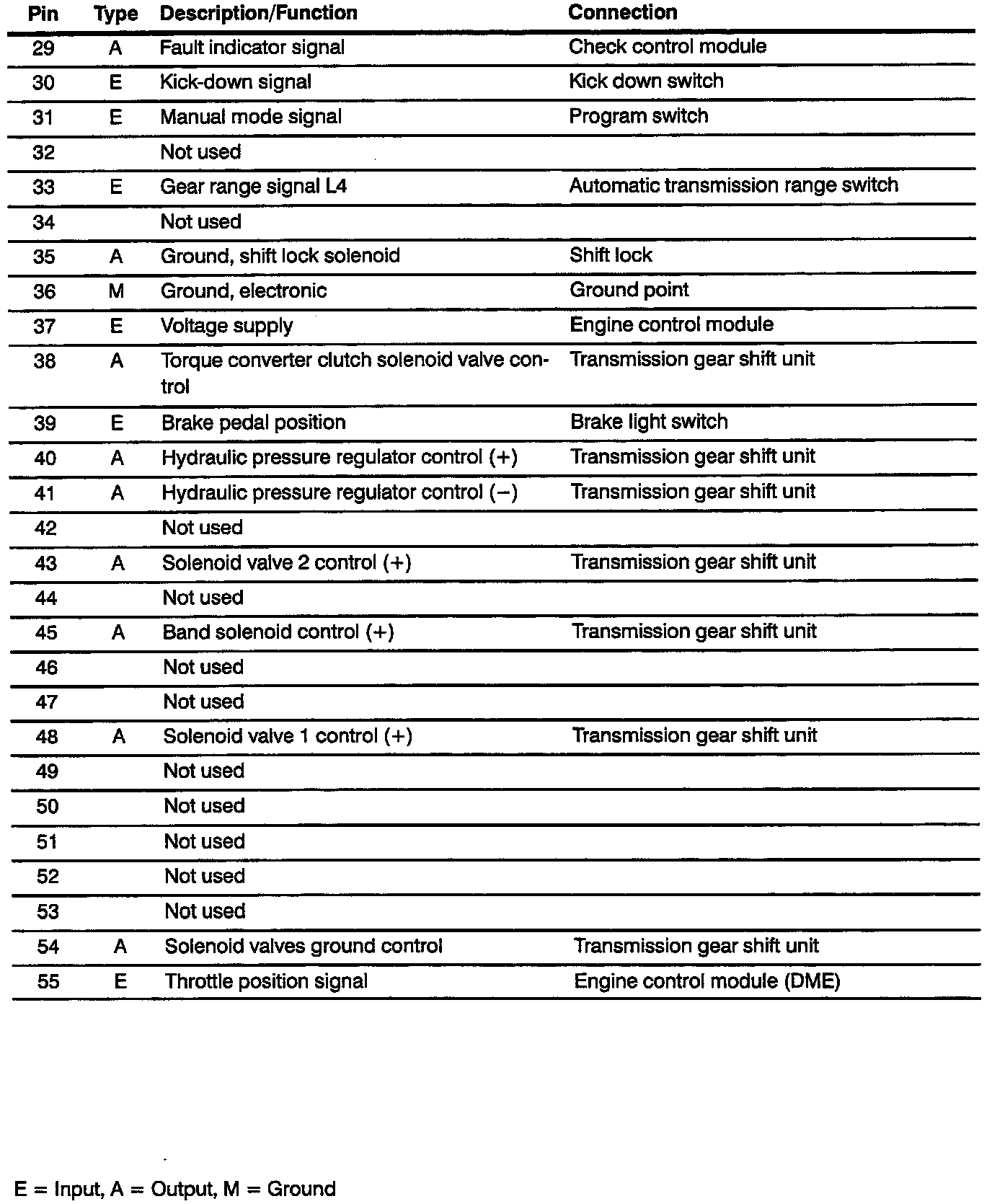

Electronic Transmission Control (EGS A4S 310R): Pin Assignments:
