Special Tools - New Engine Tools

Group 04
Tools and Equipment

Bulletin Number
04 07 95 (4197)

Woodcliff Lake, NJ
April 1995
Product Engineering

SUBJECT:
New BMW Special Tools

MODELS:
M50TU

Situation:

The following tools have been developed for the M52 Motor and will be distributed via the BMW Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. Tools 113 292 and 114 220 will also work on M50 motors produced after 9/94.

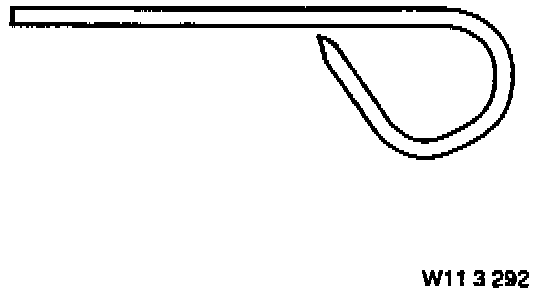

Locking Pin
P/N 90 88 6 113 292
Introductory Price = $.50




Used to lock the secondary chain tensioner.

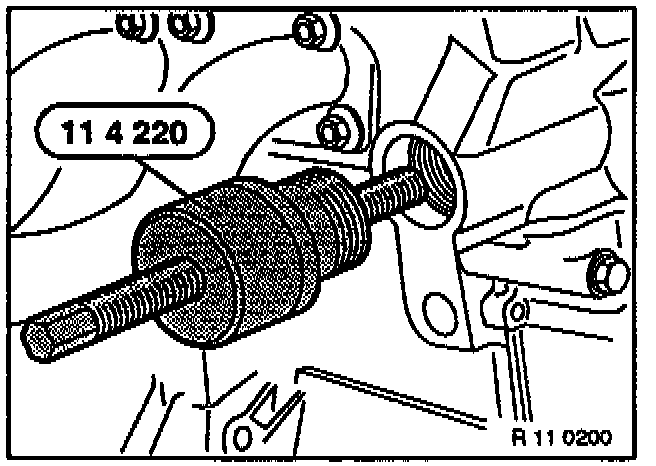

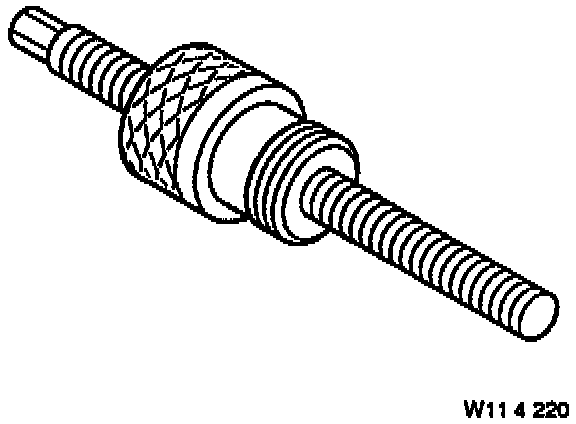

Chain Tensioner
P/N 90 88 6 11 42 20
Introductory Price = $11.50




Used to tension the primary chain.
