Home >> BMW >> 1995 >> 525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> System Diagram >> Seats/Mirror Memory System (SM/SPM) >> Block Diagram

Block Diagram

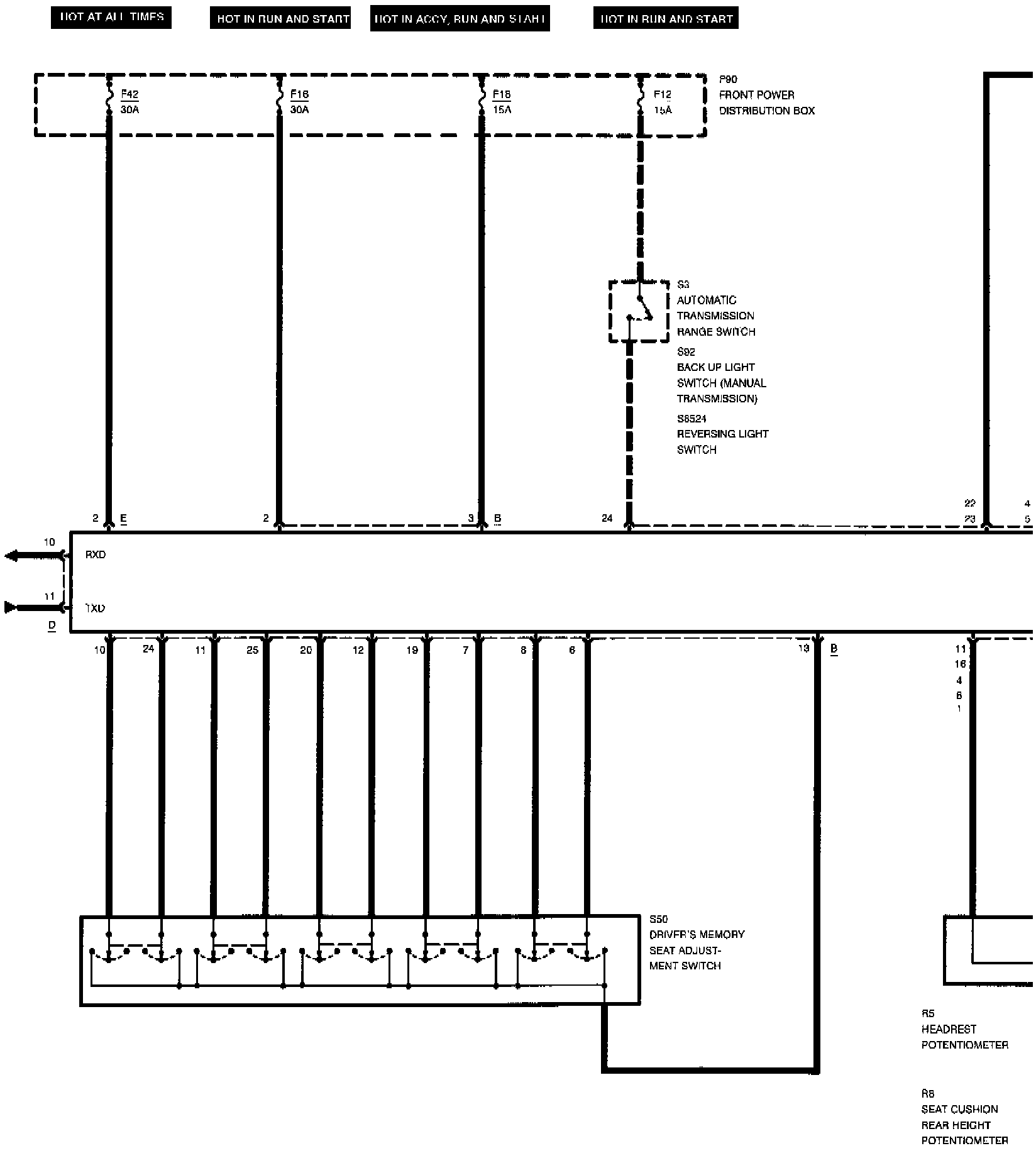

;?�*;?Seat/Mirror Memory System (SM/SPM): Block Diagram:
