525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Cluster/Check Control (K/CC)
>>
Gauges
Gauges

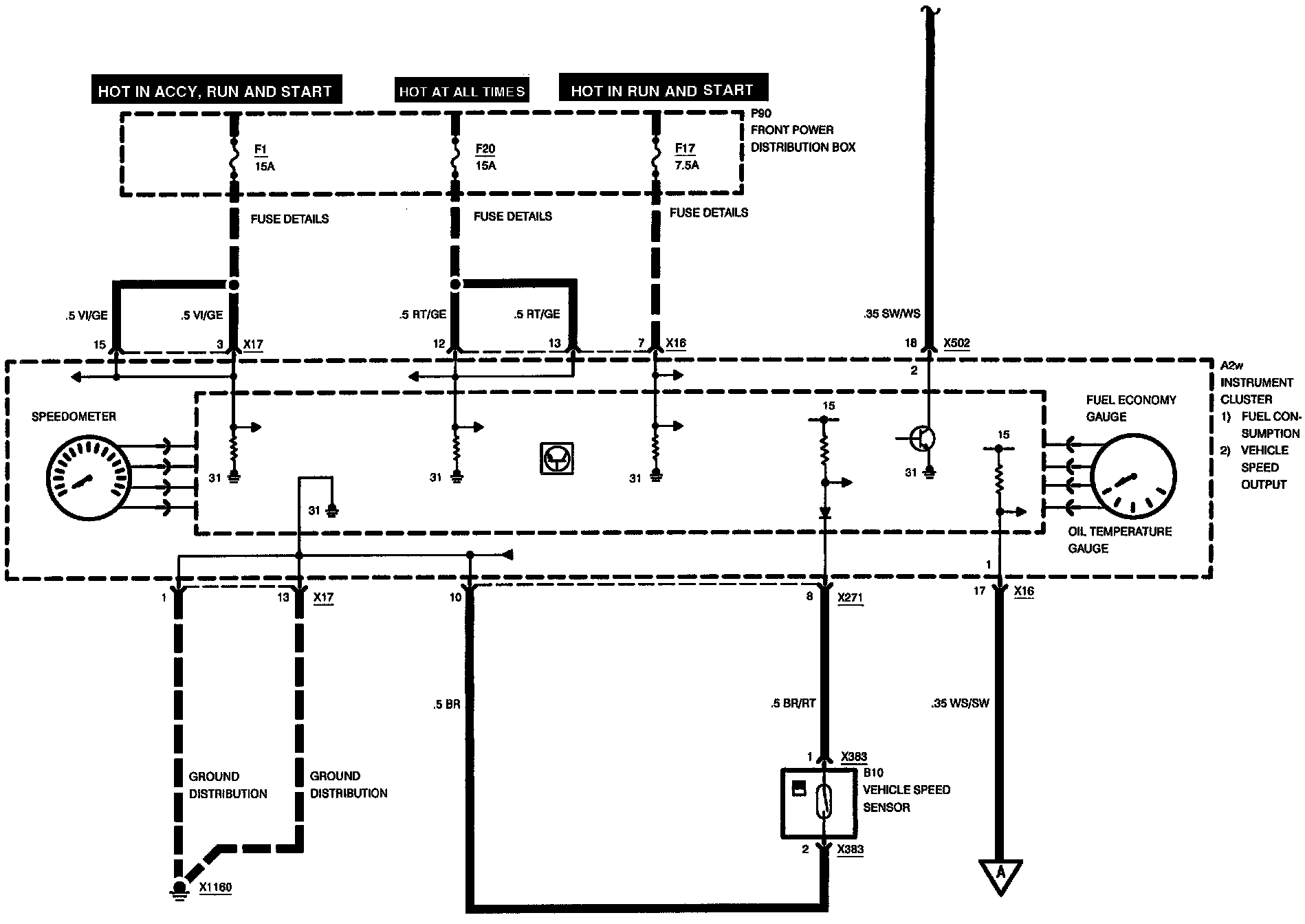

Instrument Cluster/Check Control (K/CC): Gauges:

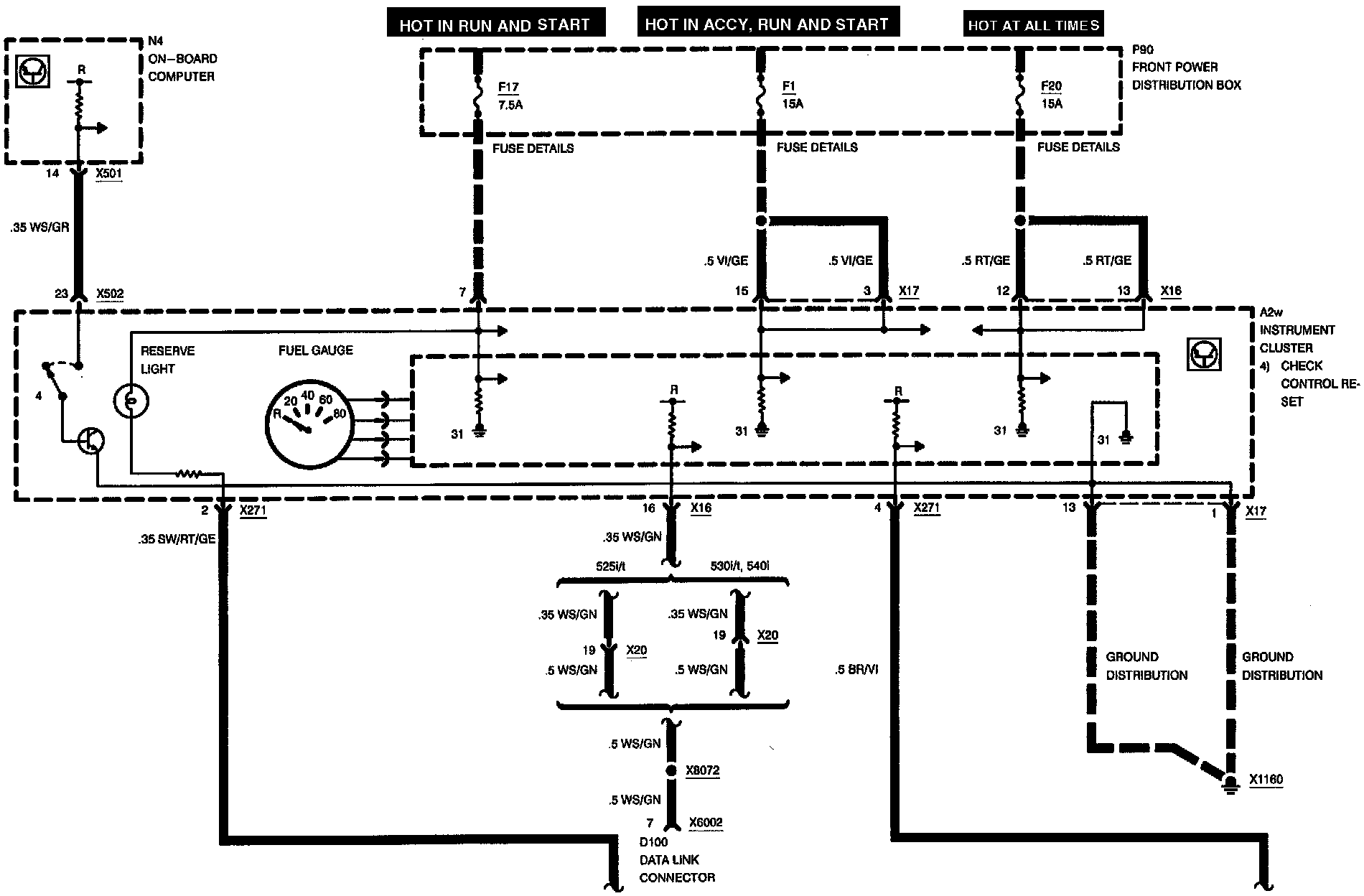

Instrument Cluster/Check Control (K/CC): Gauges:

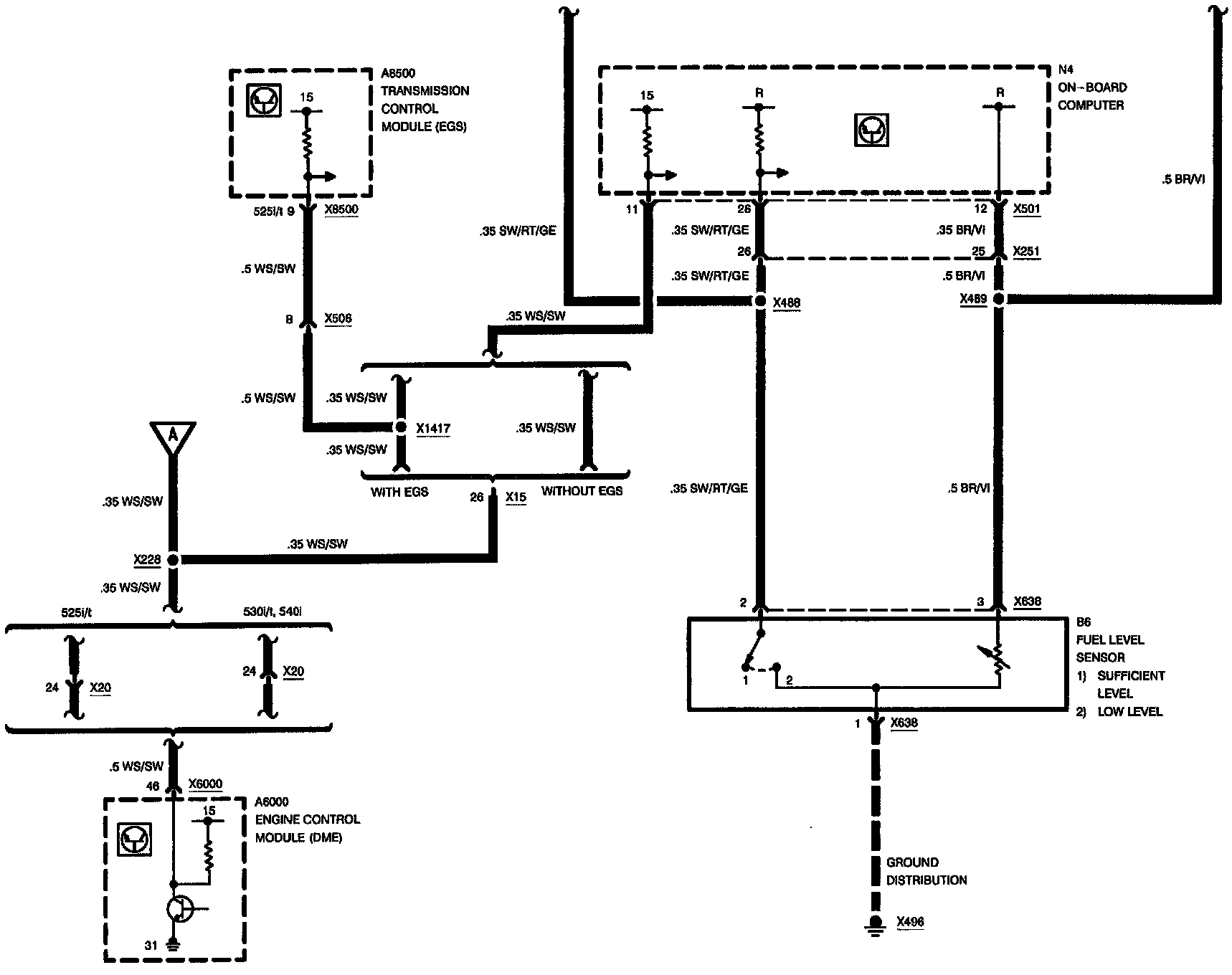

Instrument Cluster/Check Control (K/CC): Gauges:

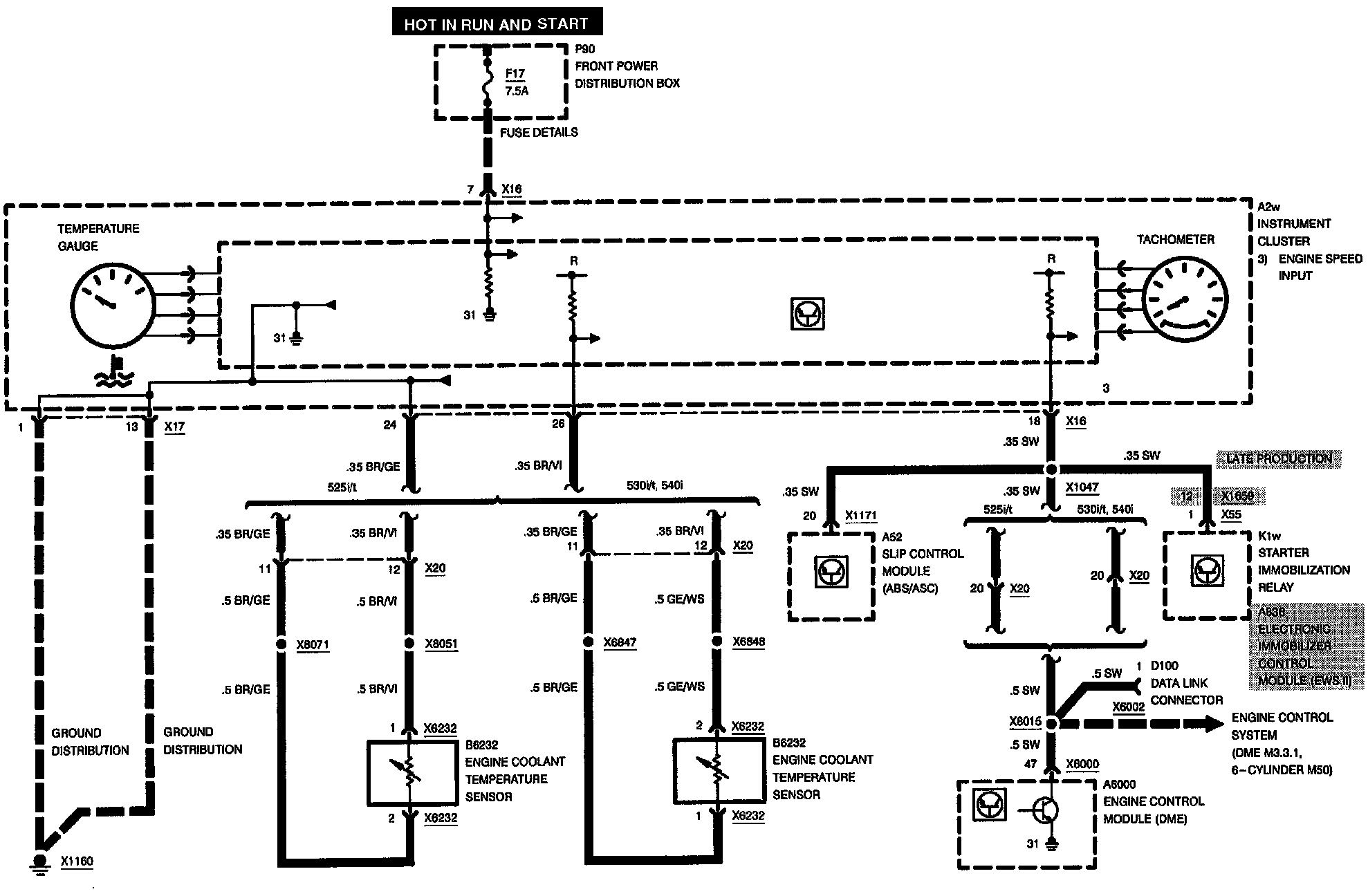

Instrument Cluster/Check Control (K/CC): Gauges:
