Input Details

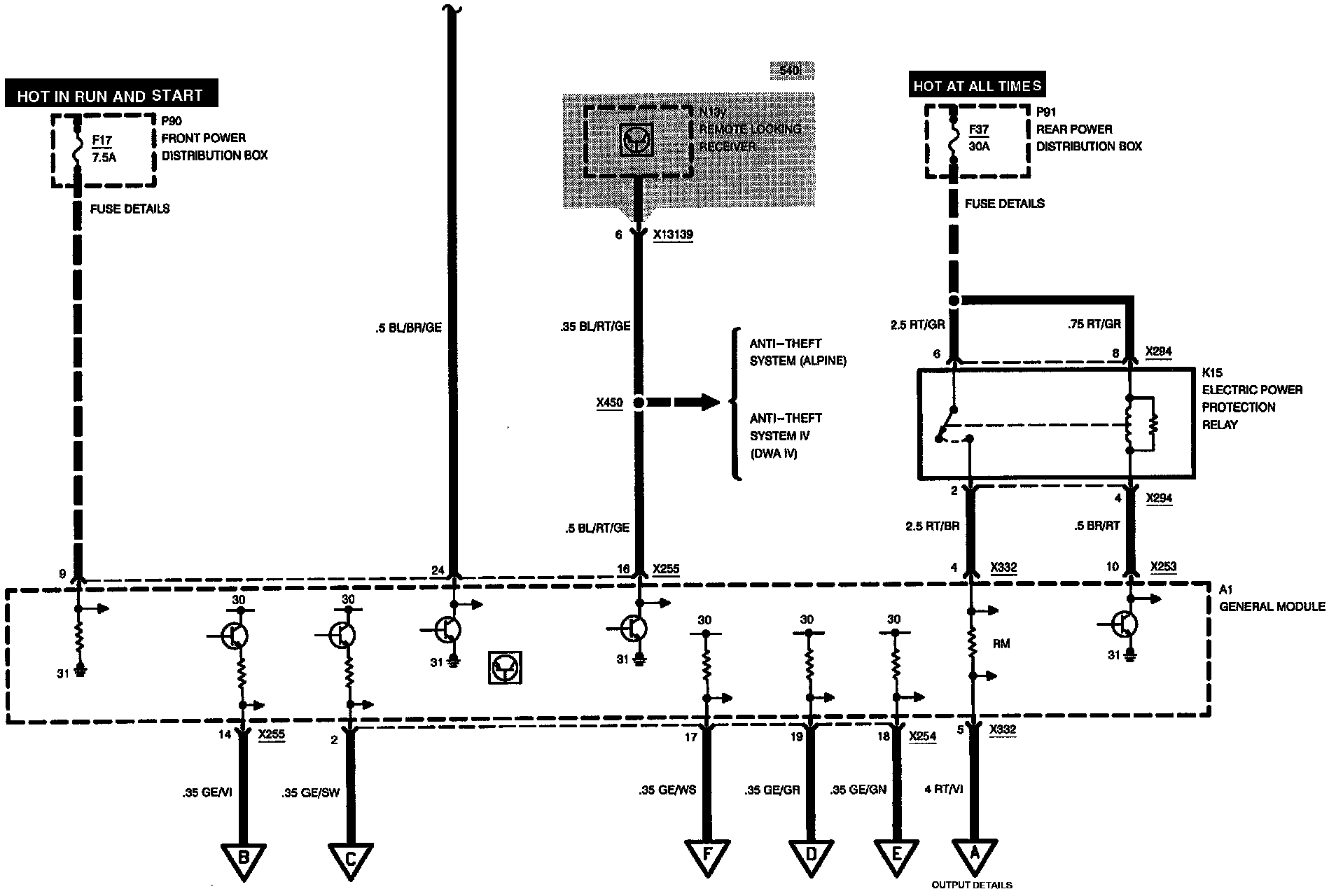

ZKE Sunroof (SHD): Input Details:

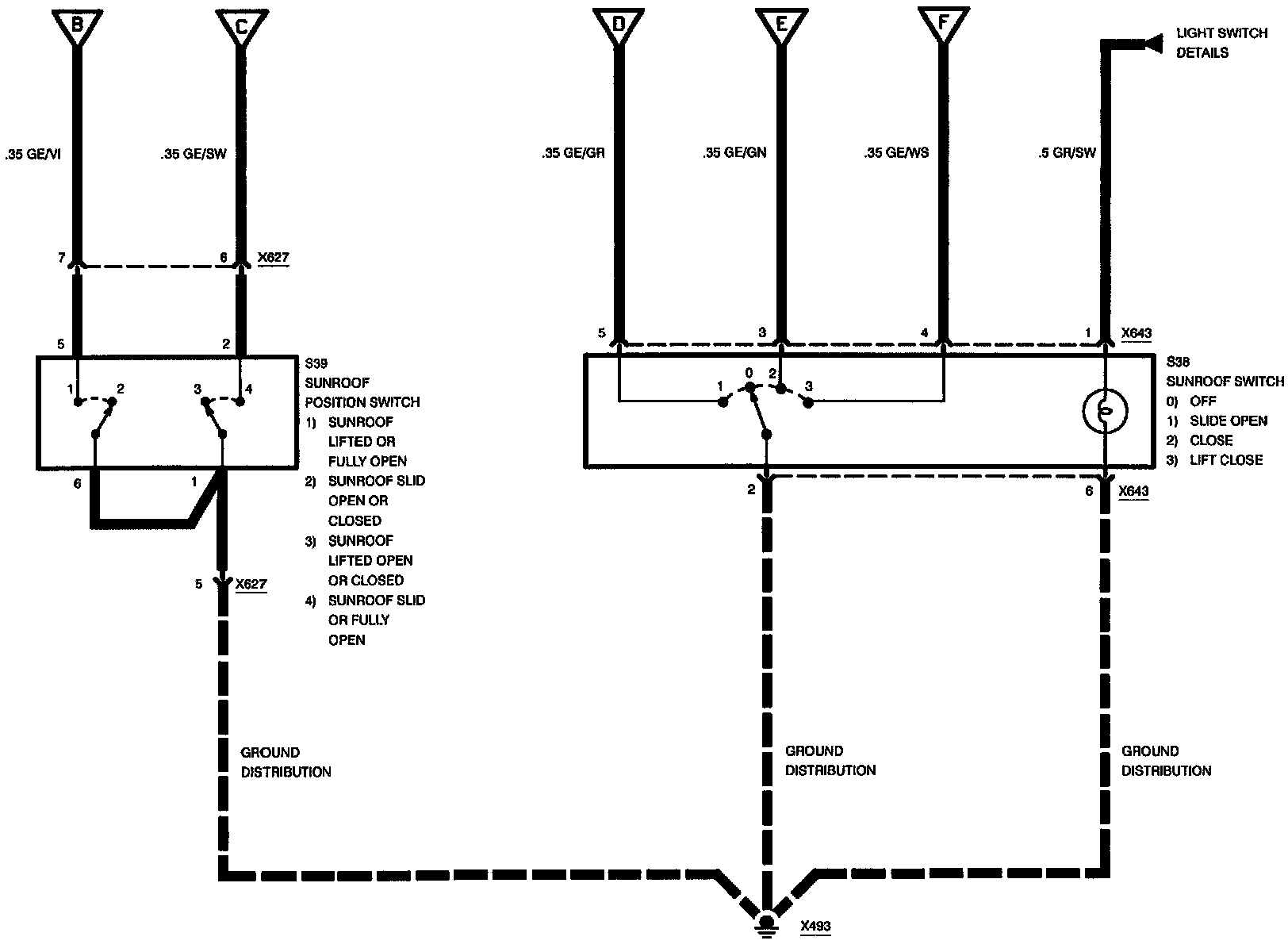

ZKE Sunroof (SHD): Input Details:

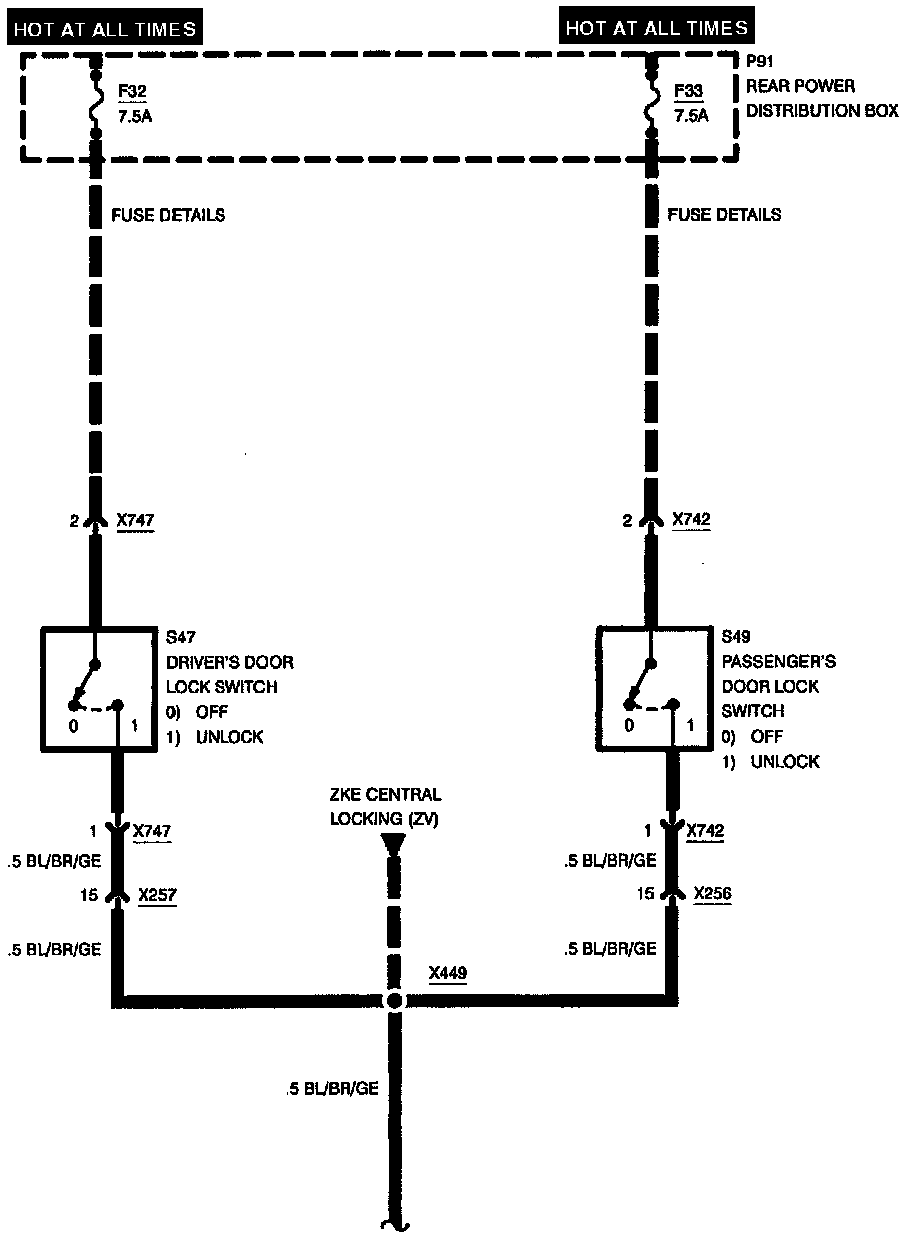

ZKE Sunroof (SHD): Input Details:
