On-Board Computer (BCIV)
>>
Pin Assignments
Pin Assignments

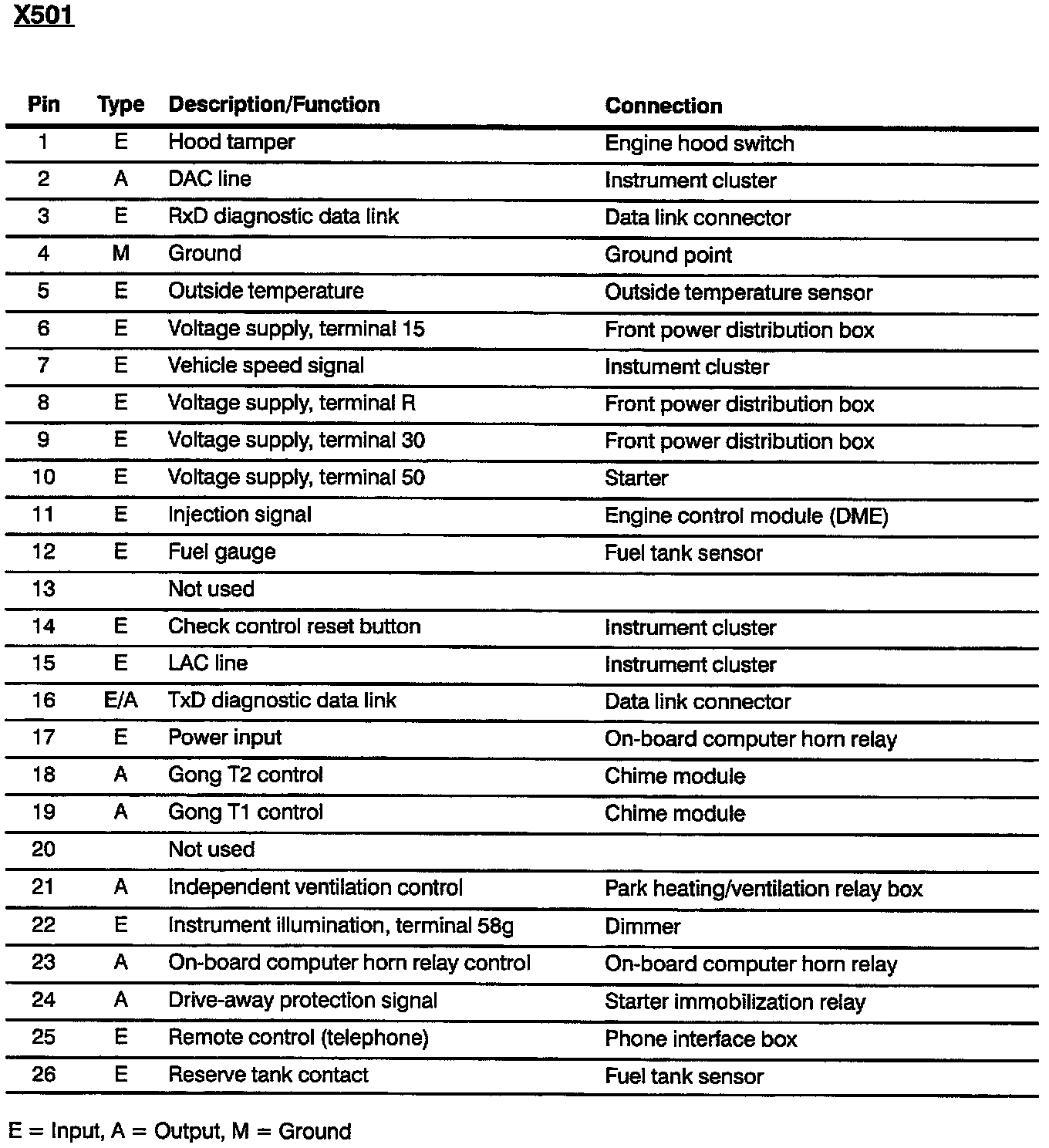

Connector Views:
X501
CONNECTOR (26-PINS, GREEN)
On-Board Computer (BCIV): Pin Assignments:
