Special Tools - E36 Compact

Group 04
Tools and Equipment

Bulletin Number
04 27 94 (4120)

Woodcliff Lake, NJ
May 1995
Product Engineering

SUBJECT:
New Special Tools

MODELS:
E36 Compact

Situation:
The following special tools have been developed for the E36 Compact. These tools will be distributed through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

Note:
All prices in this bulletin are introductory prices and are subject to change.

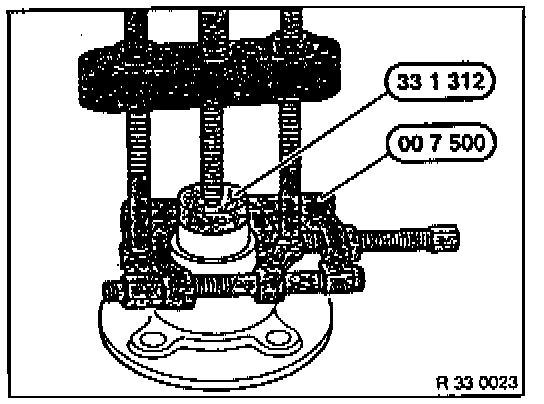

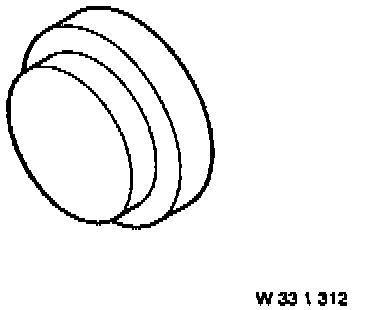

Mandrel
P/N 90 88 6 331 312
Price = $4.80





Used in conjunction with 88 88 6 007 500 to remove the inner ring from the output flange.

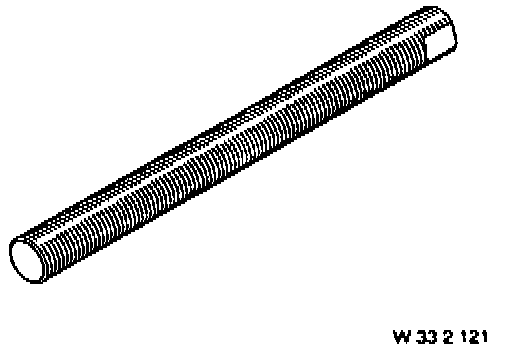

Spindle
P/N 90 88 6 332 121
Price = $6.02

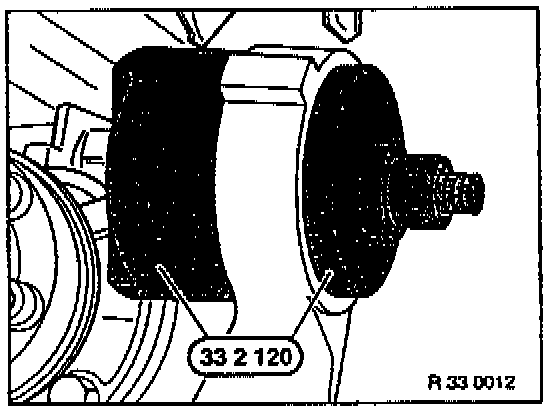

Used in conjunction with 88 88 6 332 120 to
R&R the final drive bushings.





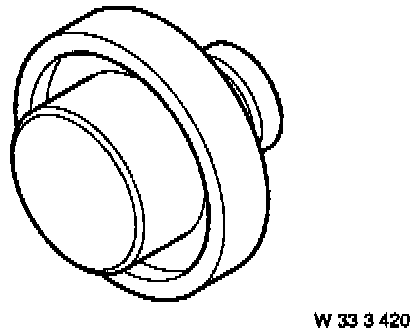

Input Seal Driver
P/N 90 88 6 333 430
Price = $12.37

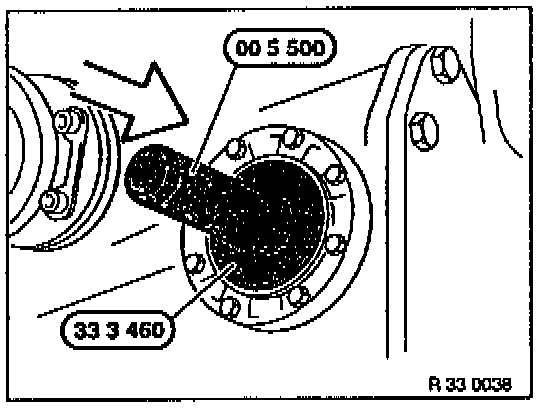

Output Seal Driver
P/N 90 88 6 333 460
Price = $8.86





Used in conjunction with P/N 88 88 6 005 500
to install the input and output shaft seals on the
final drive "15" (side cover 4 bolts).

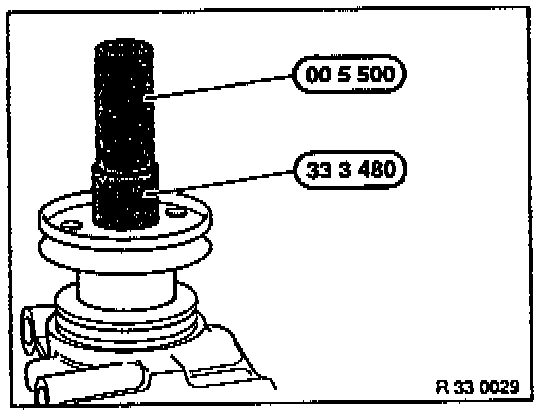

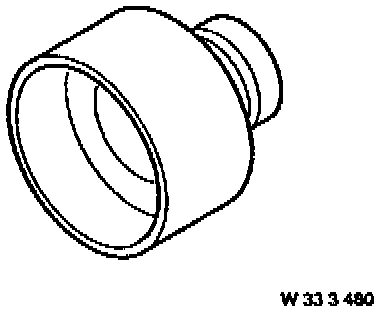

Input Seal Driver
P/N 90 88 6 333 480
Price = $7.67





Used in conjunction with P/N 88 88 6 005 500
to install the input shaft securing plate on the
final drives K (side cover 4 bolts and M side
cover 6 bolts).

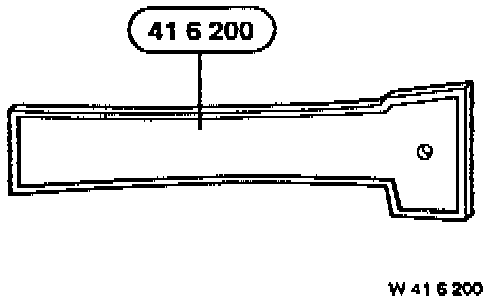

Alignment Gauge
P/N 90 88 6 416 200
Price = $4.30

Used to align the rear hatch with the body and
the rear windshield when replaced.





The tool is optional. It may be purchased through your PDC.

Subframe Support
P/N 90 88 6 333 270
Price = $301.46

Used to support the rear axle subframe during R&R.
