X6456

Component Location Views:

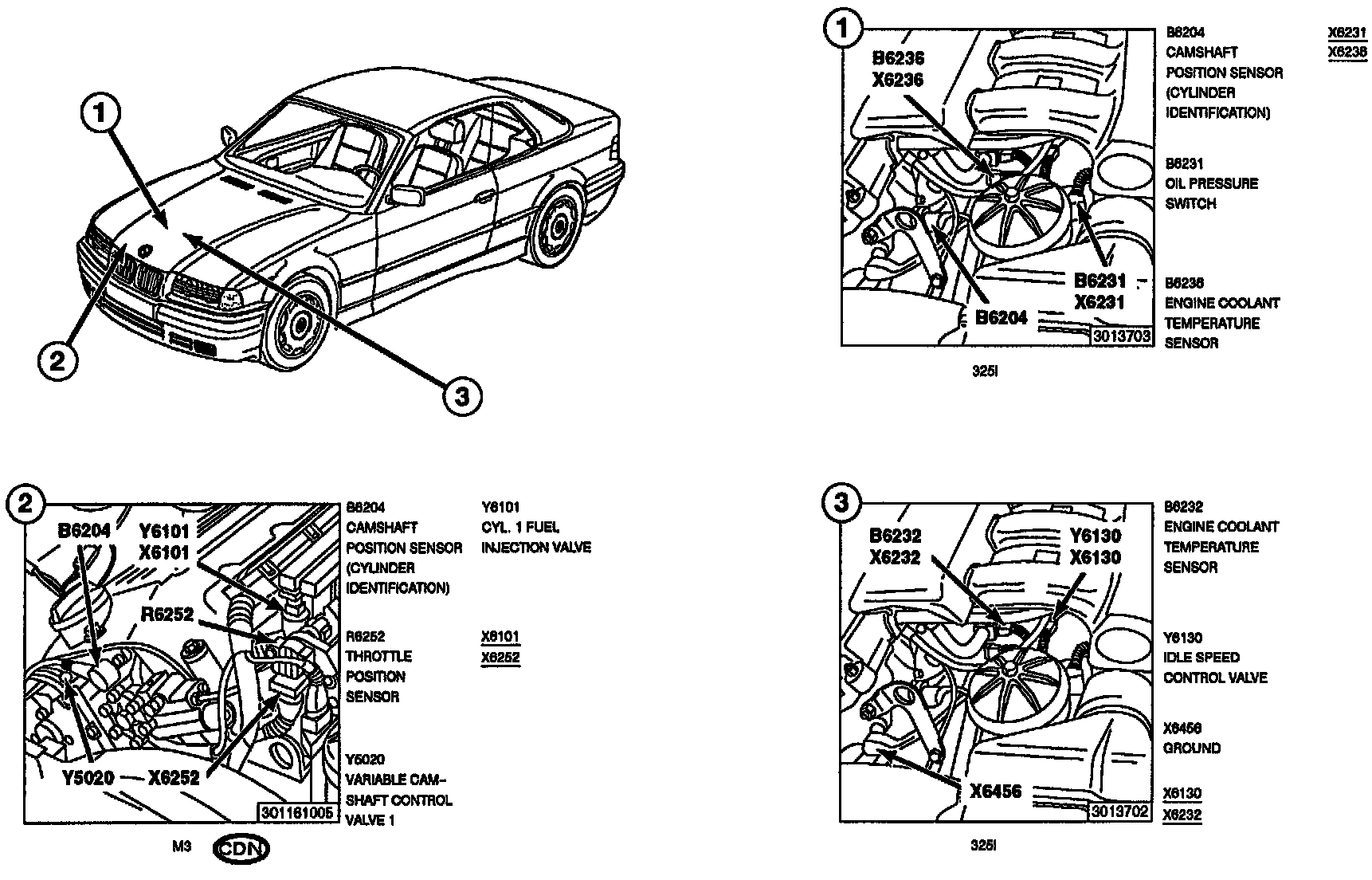

Ground Location View
Figure 3
Ground ID X6456, GROUND
Location RH front of engine (325i)
