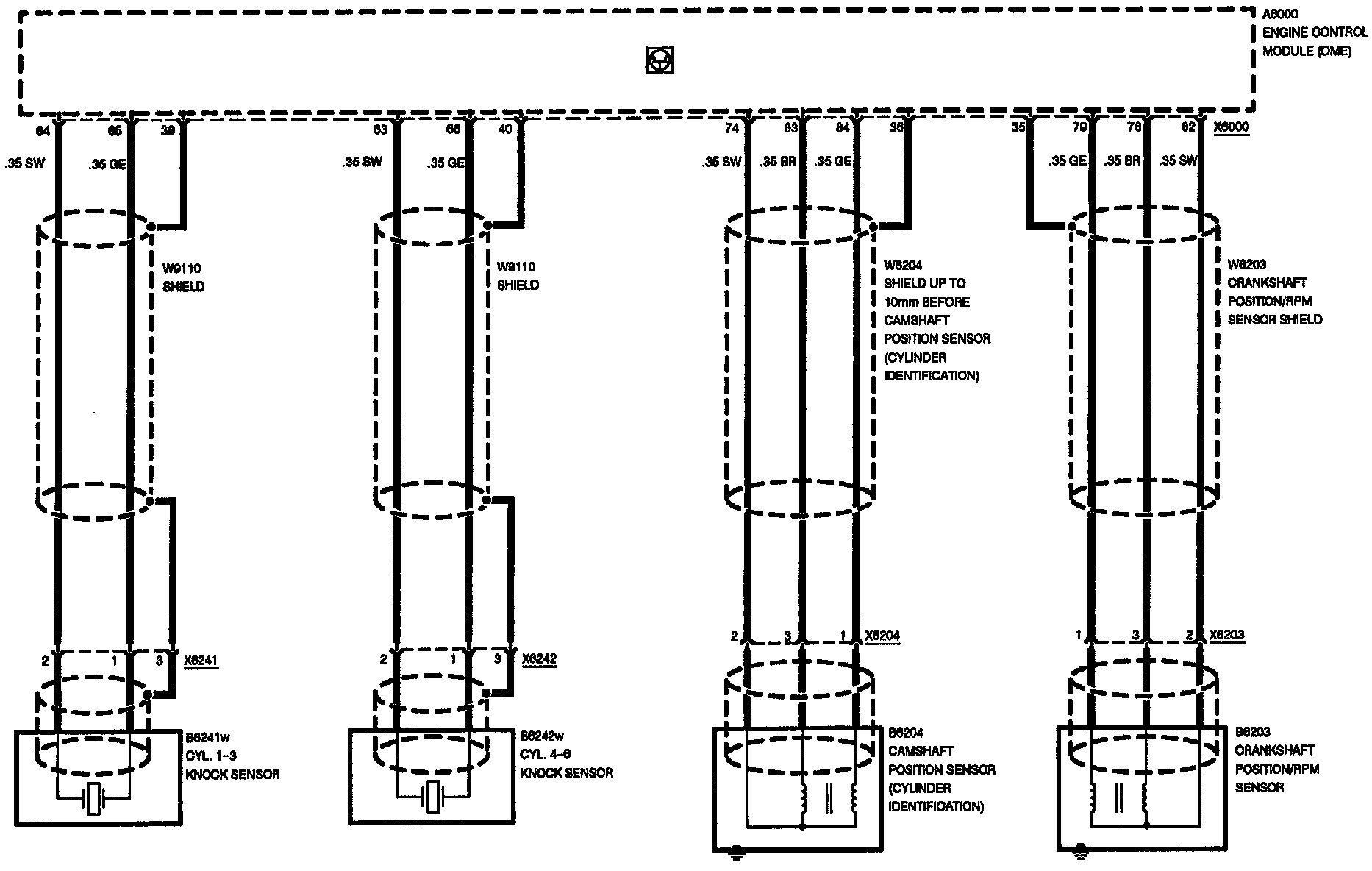

Crankshaft Position Sensor & Knock Sensor

Engine Control System MS40: Crankshaft Position Sensor & Knock Sensor:
