Home >> BMW >> 1995 >> 325i Convertible (E36) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Slip Control (ABS/ASC) >> Sub-System Diagrams

Sub-System Diagrams

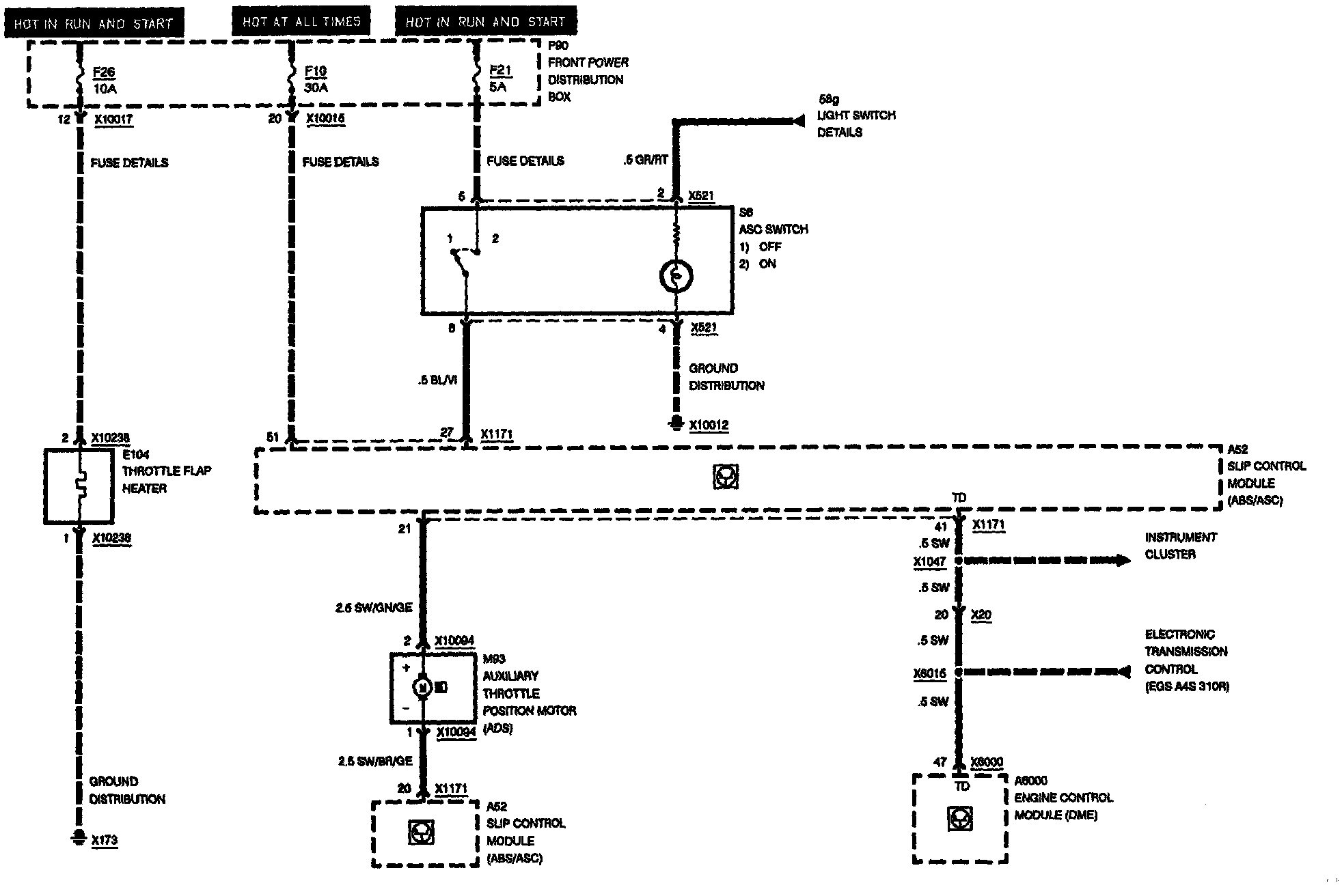

Slip Control (ABS/ASC): Sub-System:

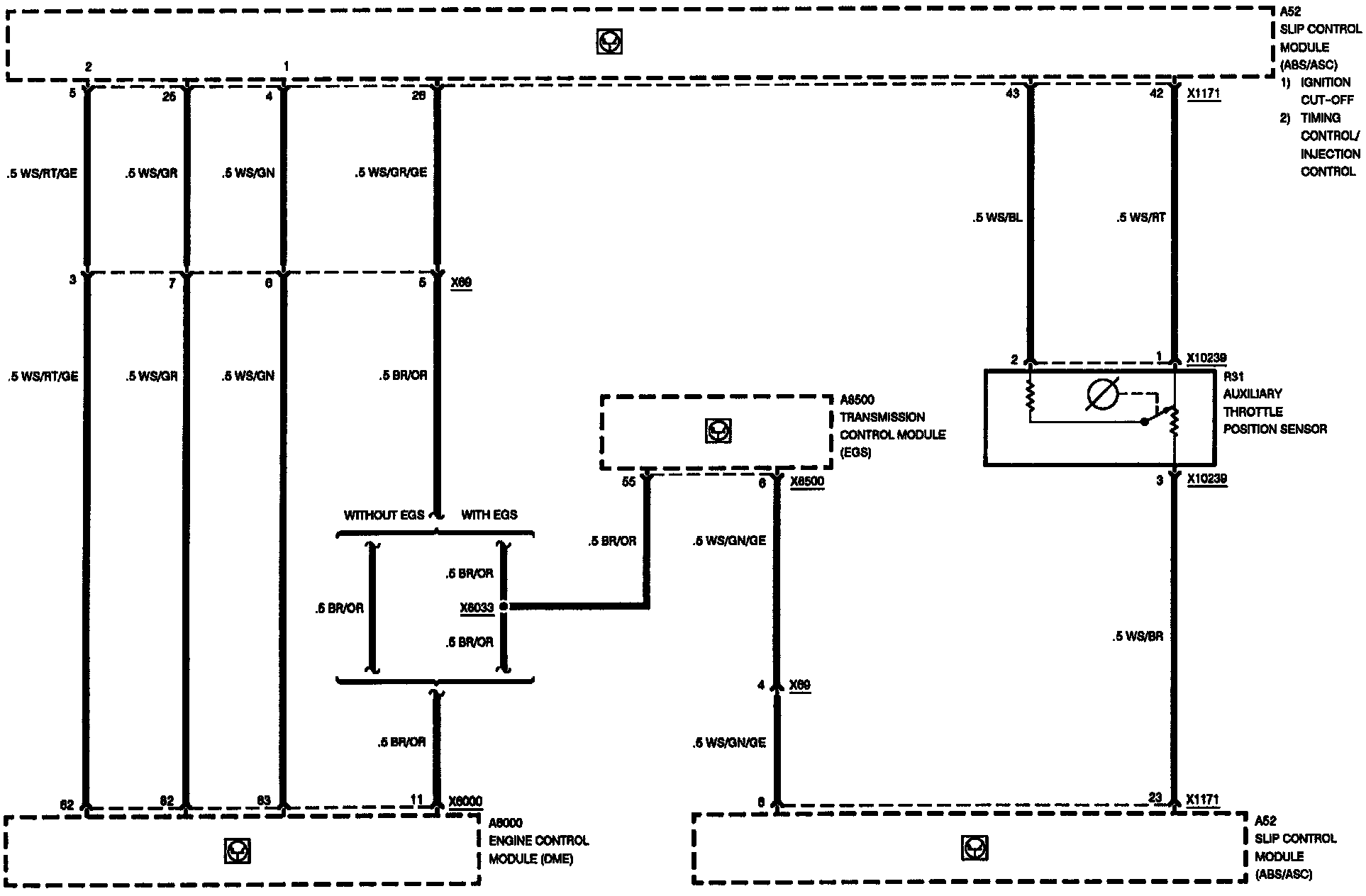

Slip Control (ABS/ASC): Sub-System:

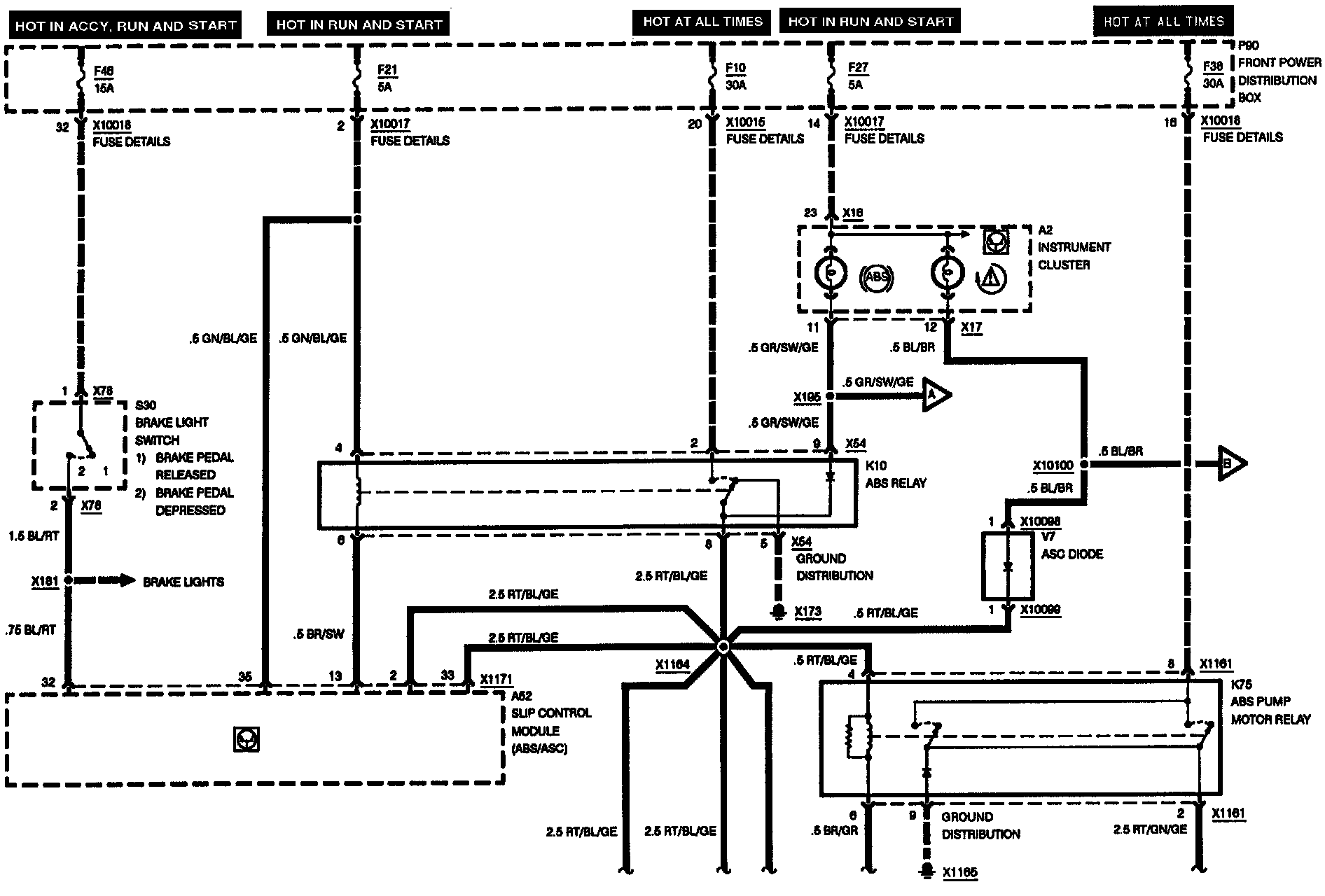

Slip Control (ABS/ASC): Sub-System:

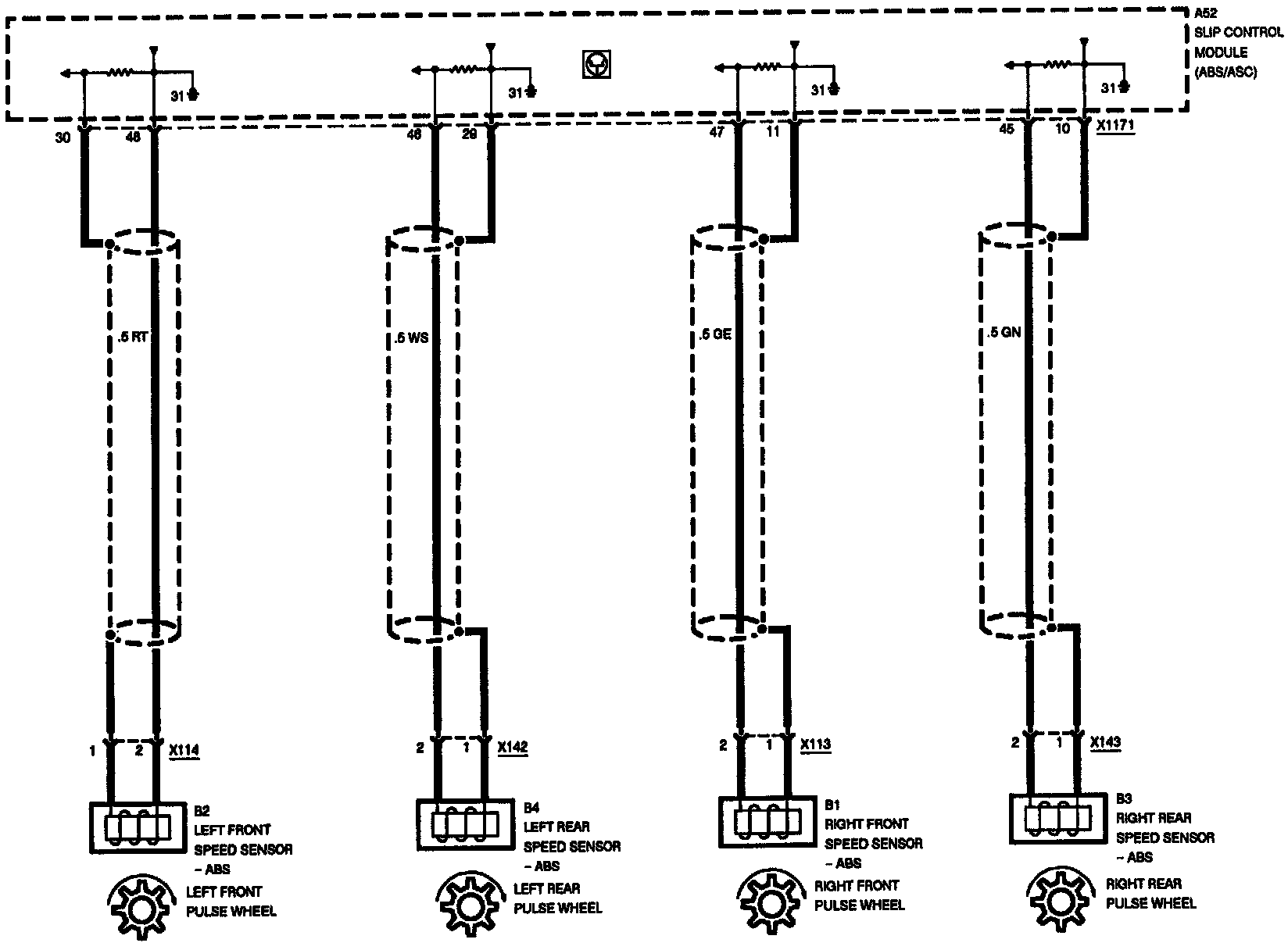

Slip Control (ABS/ASC): Sub-System:

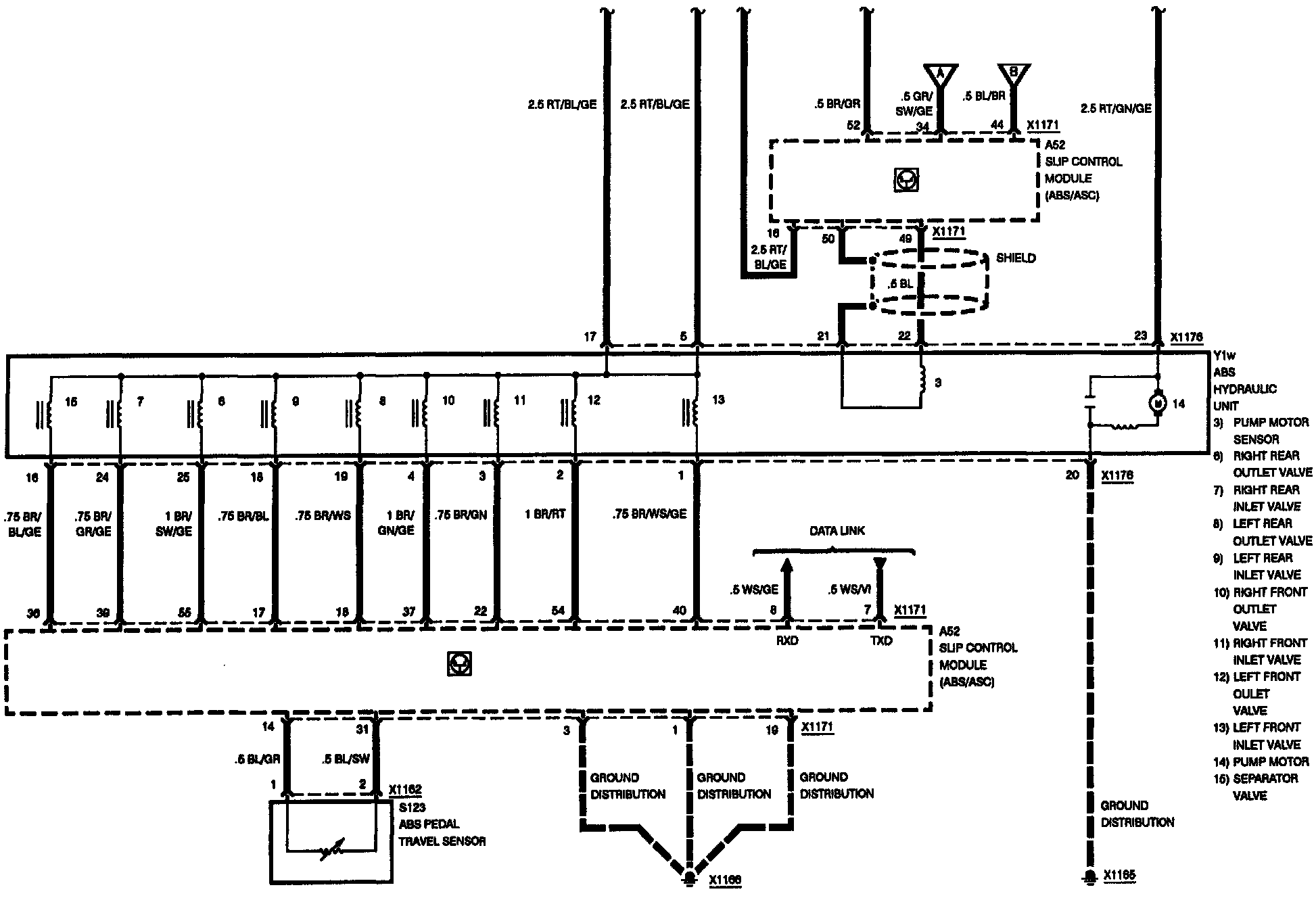

Slip Control (ABS/ASC): Sub-System:
