325i Convertible (E36) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Slip Control (ABS/ASC)
>>
Pin Assignments
Pin Assignments
Connector Views: Fig. 1:

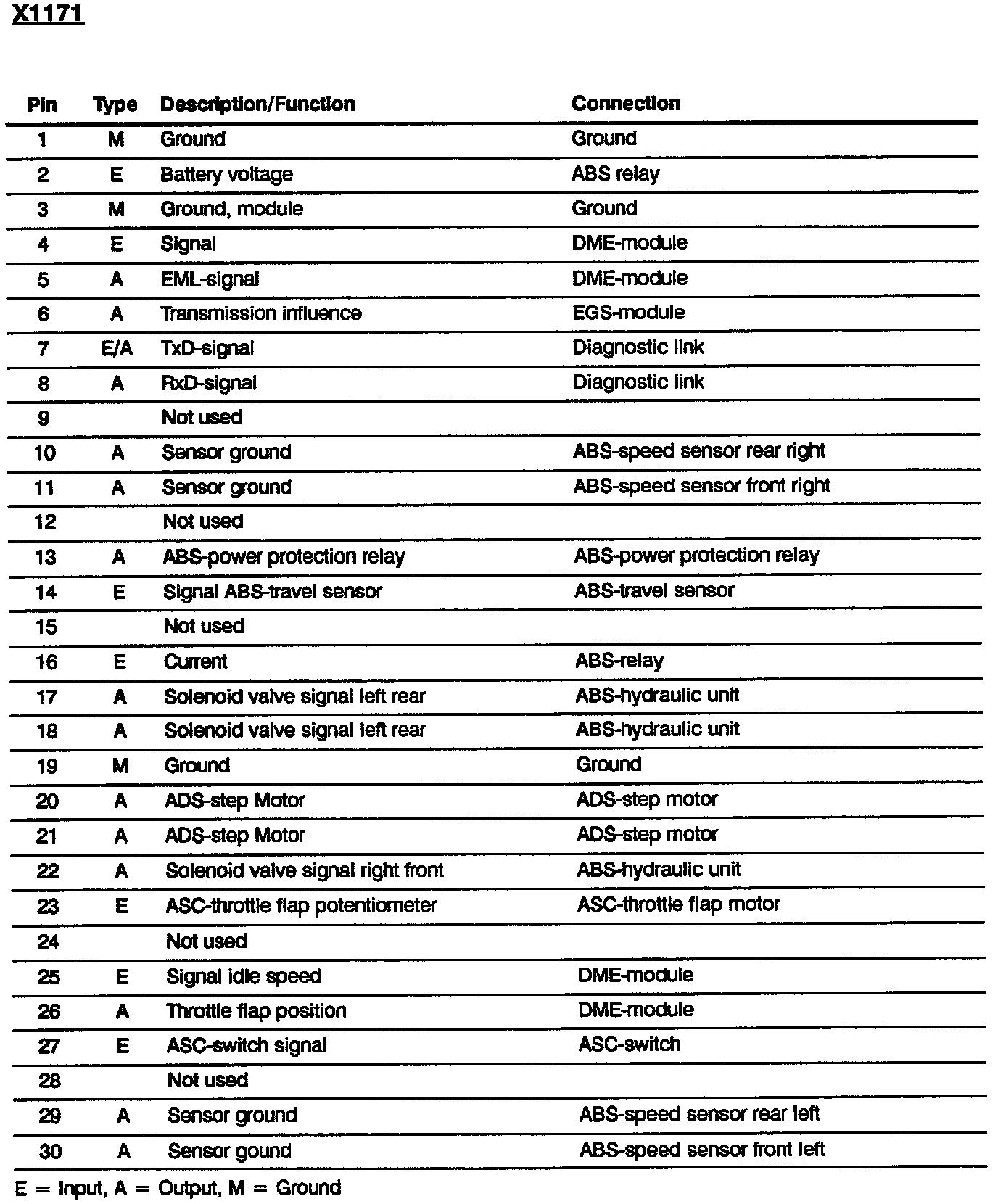

X1171
CONNECTOR (55-Pins, Black)
Slip Control (ABS/ASC): Pin Assignments:
Slip Control (ABS/ASC): Pin Assignments:
