Wheels - Approved Wheels and Tires
GROUP 36Wheels and Tires
Bulletin Number
36 02 97
Woodcliff Lake, NJ
June 1997
Product Engineering
SUBJECT:
Installation of Approved Accessory Wheels and Tires
MODEL:
95 Model Year and Later E36 4 Cylinder Models Except Z3
Situation:
When installing approved accessory wheels with 225/45 ZR 17 or 235/40 ZR 17 tires on 95 model year and later E36 4 cylinder models, it may be necessary to make some body modifications to ensure adequate tire to body clearance under all driving conditions.
Note:
Refer to S.I. 36 01 96 for 95 and 96 model year approvals and S.I. 36 01 97 for 97 mode year approvals.
Procedure:
Perform the following modifications as necessary depending on the model and tire application.
All cars produced prior to 1/96 should have the gravel shield in the right rear wheel house replaced with the later style shield, part number 16 13 2 227 852.
When installing 225/45 ZR 17 tires on a 318ti, the left rear wheel house must be slightly modified.

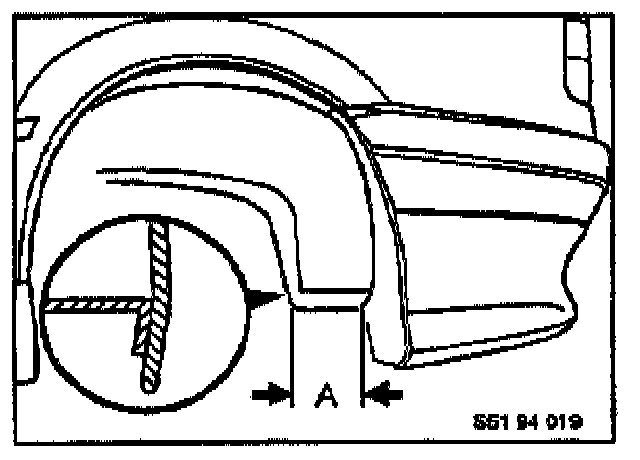

Remove the wheel and use a plastic or rubber hammer to bend in the body flange slightly as illustrated. A=90mm.
When installing 225/45 ZR 17 tires on a 318i, 318iS, or a 318iC, or 235/40 ZR 17 tires on a 318i, both wheel openings must be slightly modified.
Remove rear wheels and use a plastic or rubber hammer to bend the inner lip of the wheel openings approximately 5 mm outward in the area indicated by A.
After bending any sheet metal the affected area should be checked for damage to the corrosion protection, and touched up as necessary.
Warranty Status: Information only.
