Airbag I

Remove airbag unit, refer to Removing and Installing or Replacing Airbag Unit. Service and Repair







WARNING!
Comply with safety precautions!
Incorrect handling can activate airbag and result in injury.
Disconnect battery and cover negative pole or terminal.







Turn steering wheel to straight-ahead position (markings on steering gear and steering spindle aligned).

Unscrew bolt. Mark position of steering wheel relative to steering spindle. Pull off steering wheel.

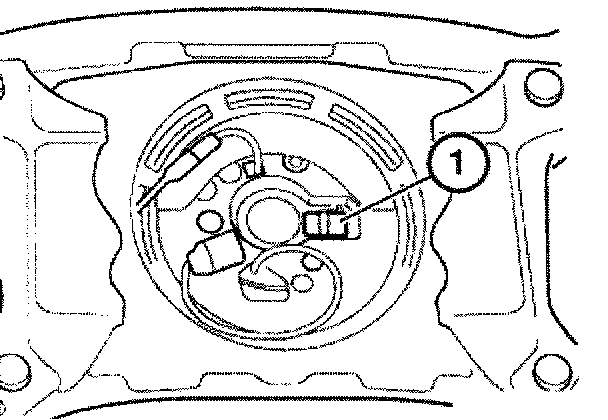

NOTE: The loosening of the screw activates the spring clip (1) which holds contact ring in centre position.







Installation:

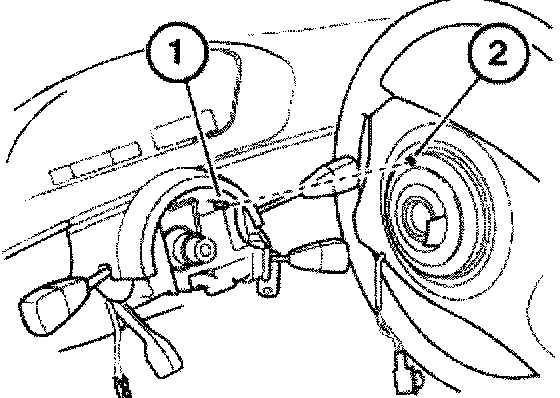

Lockpin (1) must engage in opening (2) of contact ring.
Tightening Torque =80 Nm Nut, 63 Nm Screw (Steering wheel to steering spindle.)






Adjust contact ring if necessary:
Press down spring (1). Turn contact clockwise or counterclockwise as far as stop. Turn back about 3 turns until arrows for centre position are aligned.
Release spring (1).







Installation:

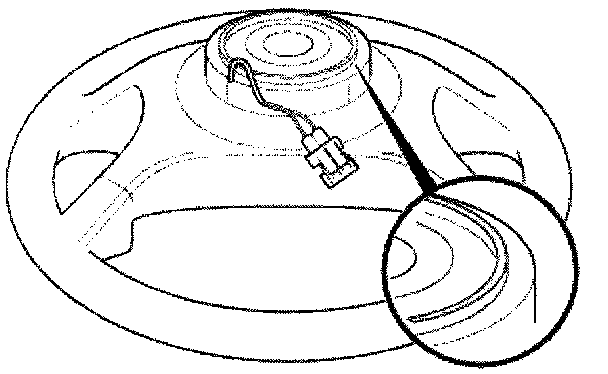

Coat slip ring with grease.
