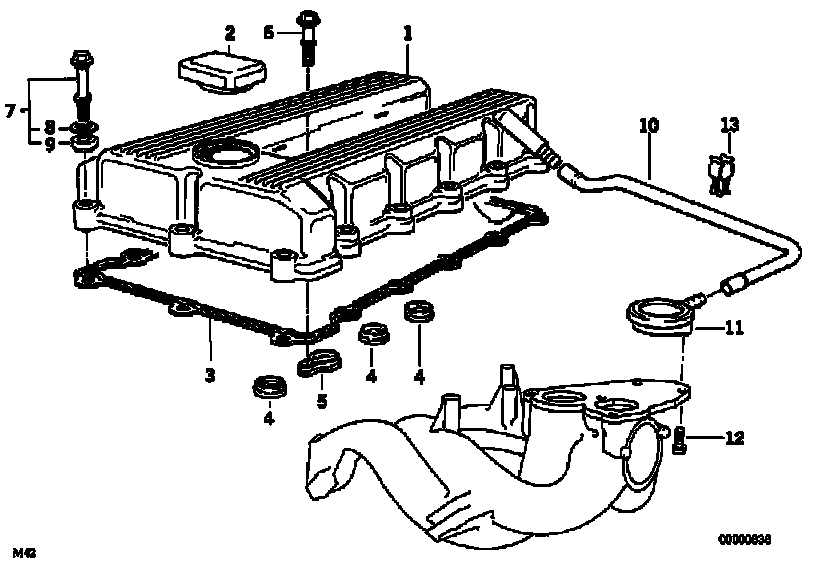

Positive Crankcase Ventilation: Locations








1. Cylinder head cover
10. Vent hose
11. Crank case vent valve
12. Fillister head with washer
13. Hose clamp
