Replacing Rear Door Window (Fixed)

REPLACING WINDOW FIXED IN LEFT OR RIGHT REAR DOOR WINDOW FRAME

Remove rear door trim panel. Service and Repair




Lift out ornamental strip.

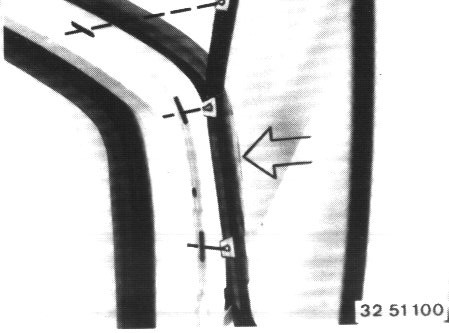

Unscrew screw in area of B pillar.

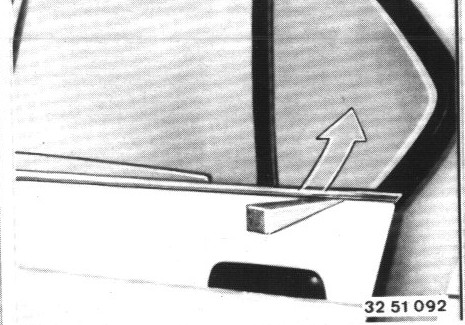

Lift out ornamental strip on outside.

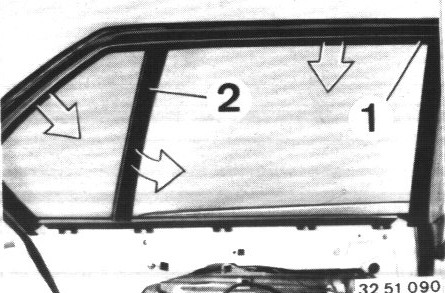

Lift out frame plate (1).

Lift out plate (2).

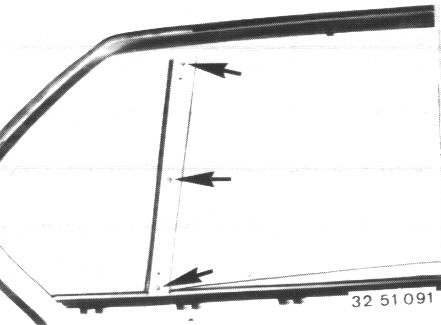

Unscrew screws.

Lift out plate.

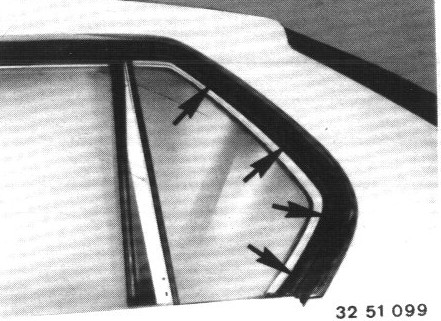

Press in retainers on the inside with a slightly bent screwdriver.

Press out window glass from inside to outside.




Installation:
Coat rubber seals with a rubber lubricant.

Engage window glass in prov:ded openings.
