Replacing Rear Door Window
REPLACING LEFT OR RIGHT REAR SIDE WINDOWRemove rear door trlm panel. Service and Repair
Installation:
It necessary, adjust rear door window. Adjustments
Lower the window.

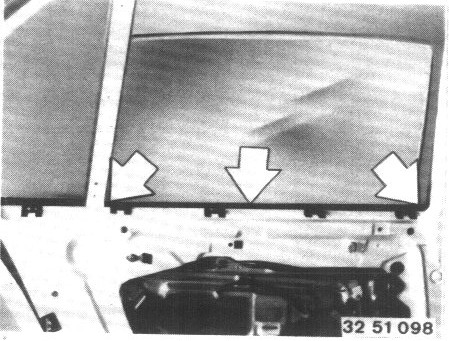

Lift out retainers.

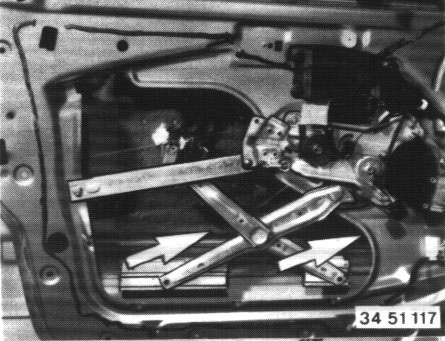

Lift window glass out of bail heads.

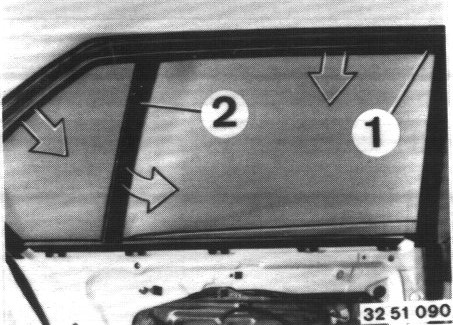

Lift out plates (1 and 2).

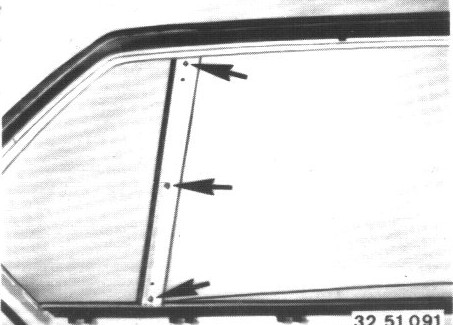

Unscrew bolts.
Lift out plate.

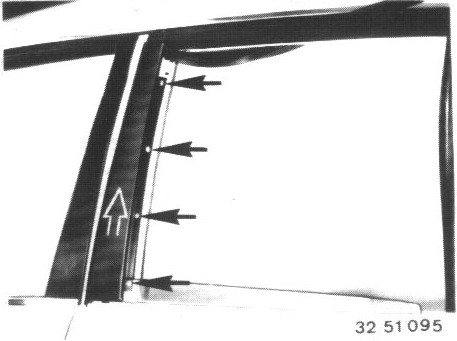

Unscrew screw in area of B-pillar.

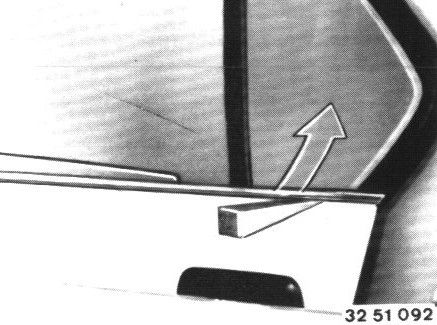

Lift out ornamental strip.
Lift out window recess seal.
Installation:
Replace clips if necessary.
Lift out plate.
Pull out window guide.
Unscrew bolts.
Lift out plate.
Installation:

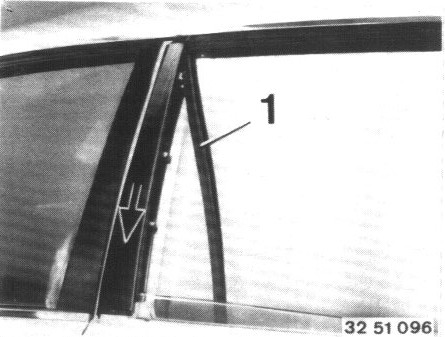

Coat rubber seals (1) with a rubber lubricant.
Attach and push down plate.

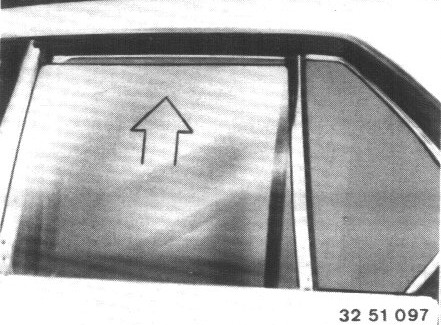

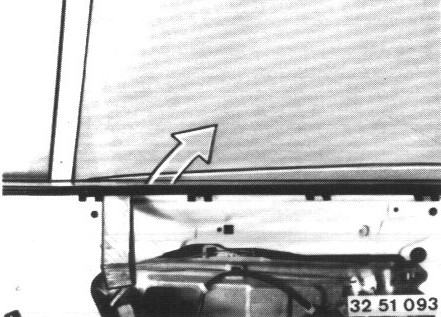

Pull out window glass from above.
Installation:

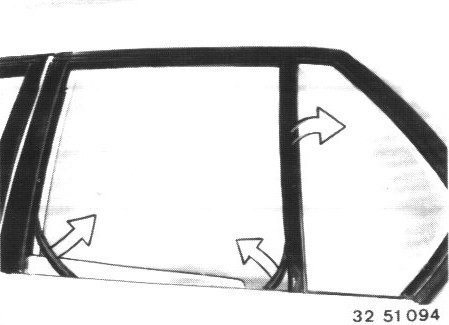

Insert window glass In guides on left and right sides.
