Pin Assignments at General Module (GM)

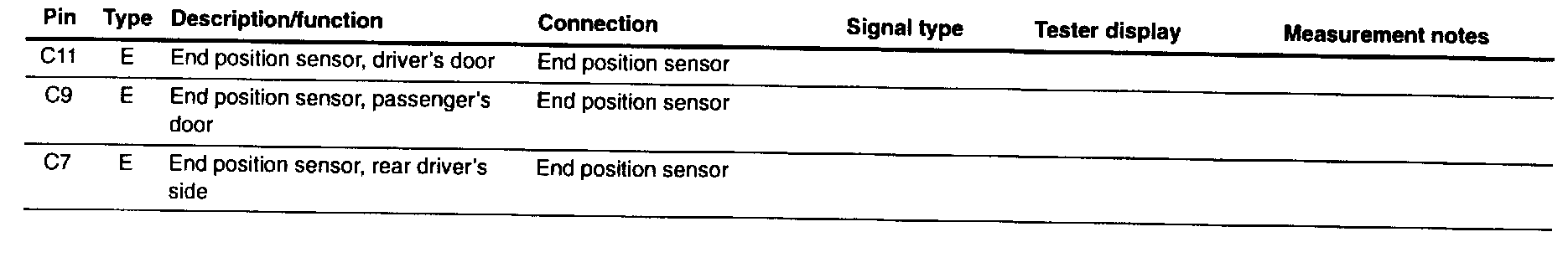

Pin Assignments at General Module (GM):

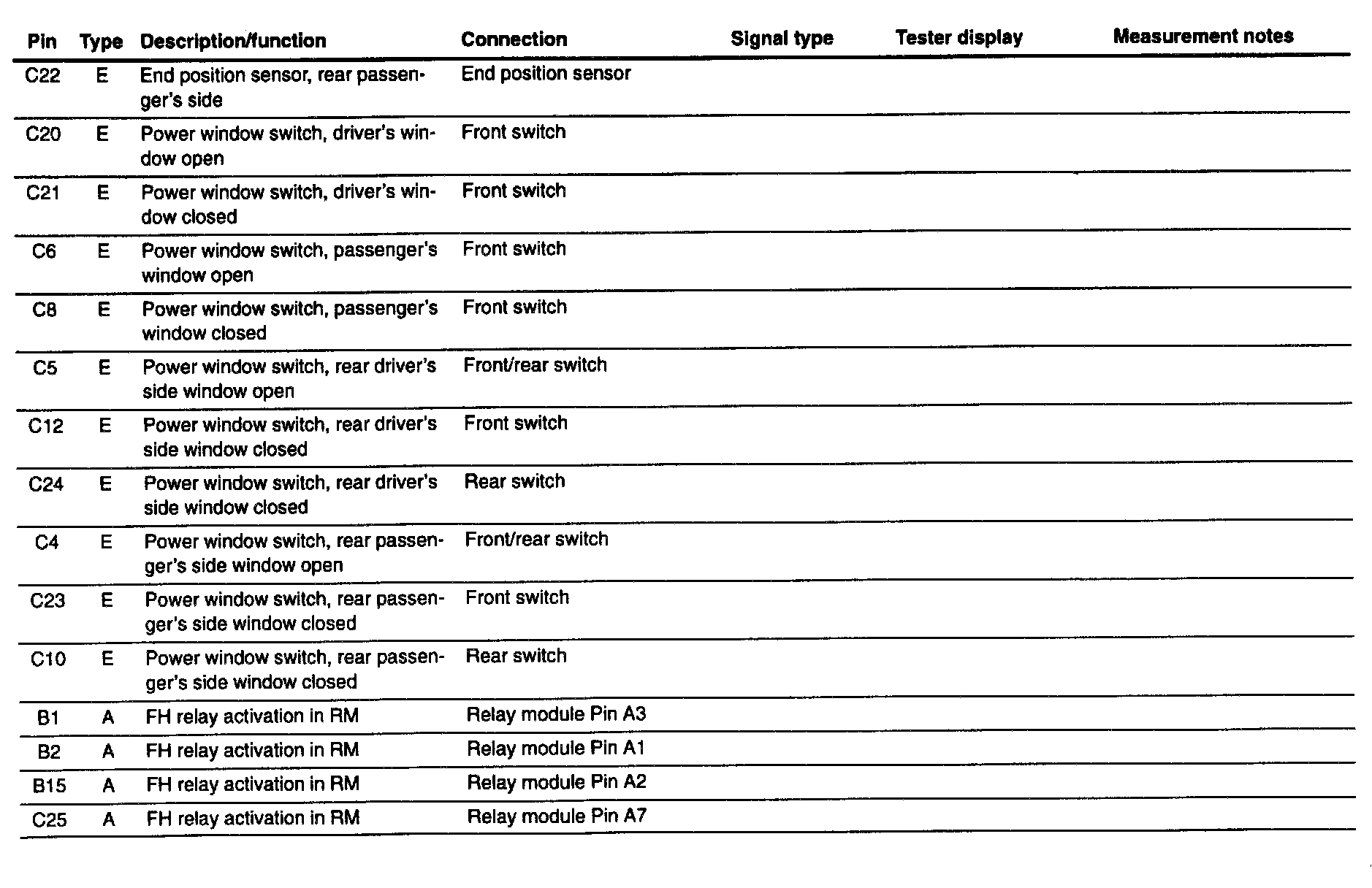

Pin Assignments at General Module (GM):



Pin Assignments at General Module (GM):
