S 5 D 200 G, S 5 D 250 G

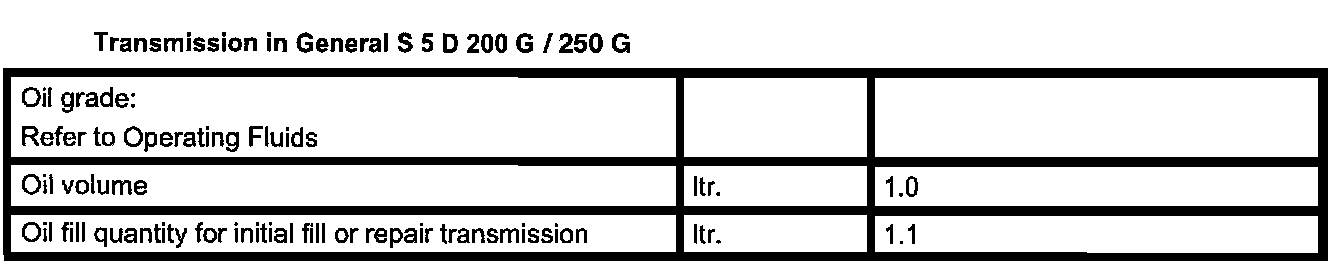

Transmission Data:

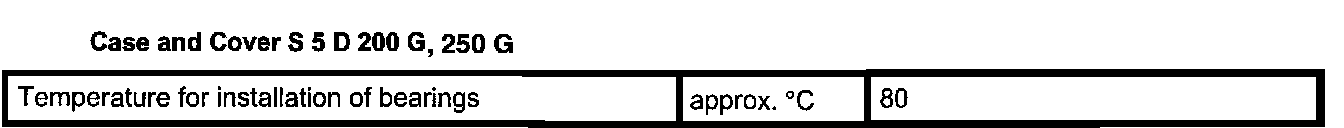

Case And Cover:

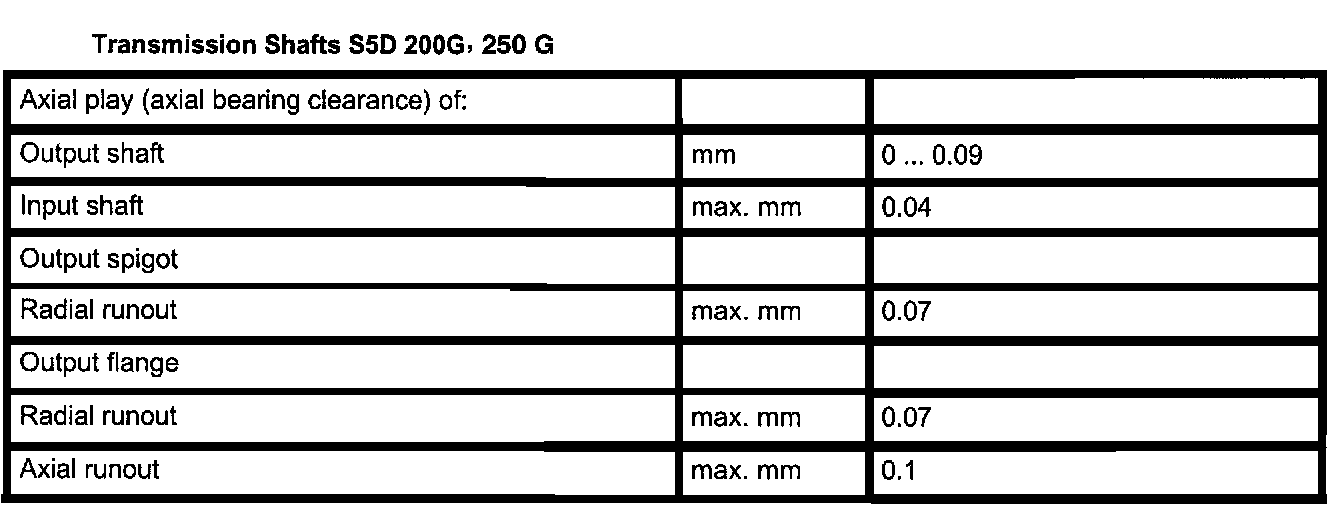

Transmission Shafts:

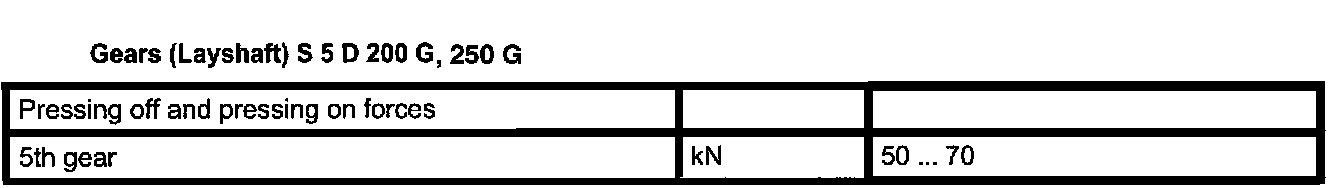

Gears (Layshaft):

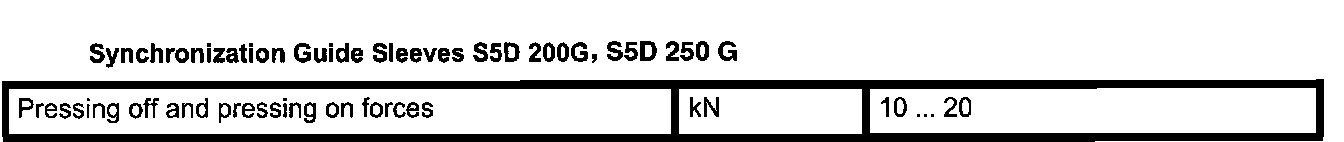

Synchronization Guide Sleeves:

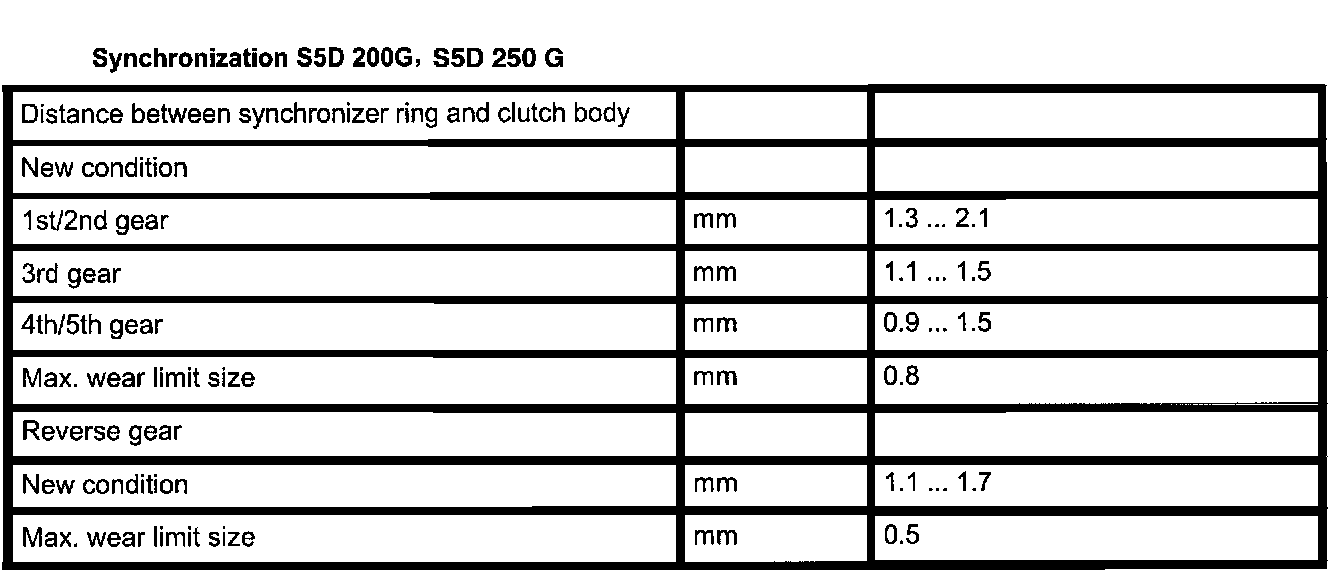

Synchronization:
