Flywheel: Service and Repair

Removing and installing or replacing flywheel


Note: clutch removed

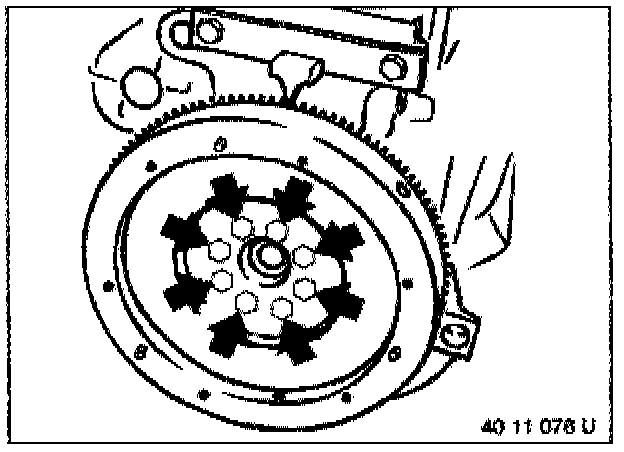

- Hold flywheel with Special Tool 11 2 170.




- Unfasten screws and remove flywheel.

Installation note: Clean thread and install new micro-encapsulated screws.

- Tightening torque 105 Nm

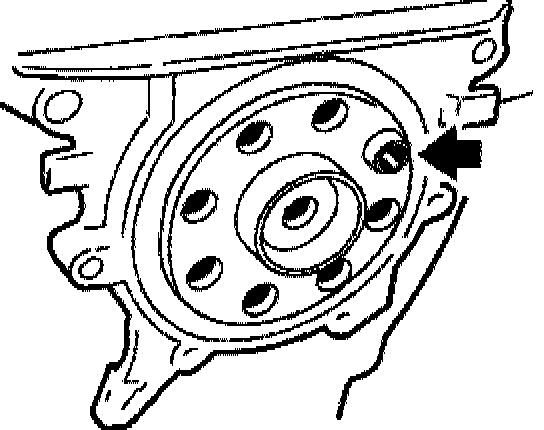

Installation note: Remember to fit hollow bush.
