Replacing Propeller Shaft Bearing

(Propeller Shaft Removed)

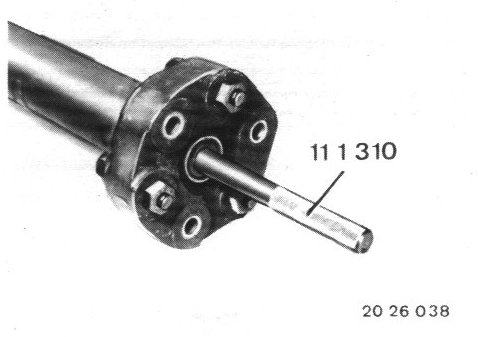

- Pack center with viscous grease and drive out with Special Tool 11 1 310. Pressure on the grease filling drives out the center bearing.

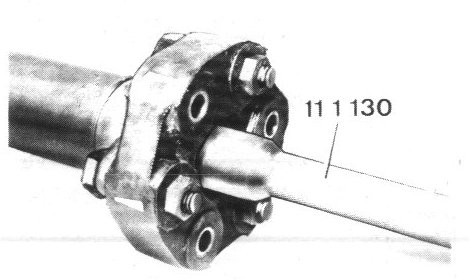

- Lubricate center with Molykote Long-term 2 and drive in with Special Tool 1 11 130.

- Sealing lip faces out.

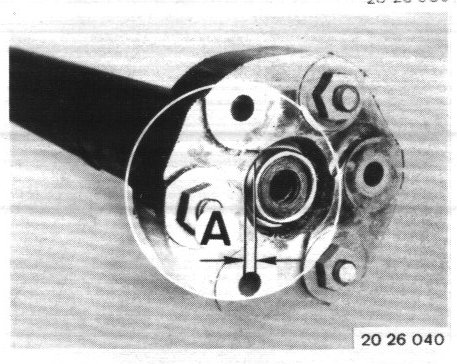

- Protrusion A = 4 to 6 mm (0.157 to 0.236").
