Pilot Bearing: Service and Repair

Replacing grooved ball bearings in crankshaft


Note: clutch removed

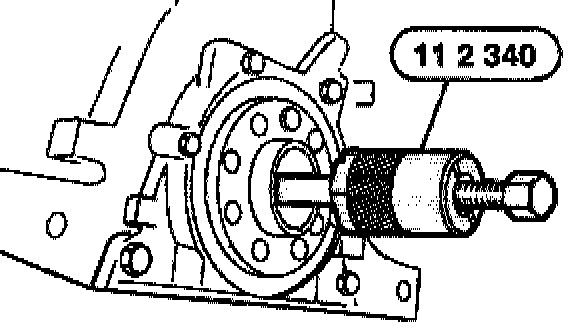

Remove guide bearing with Special Tool 11 2 340.




Installation note:

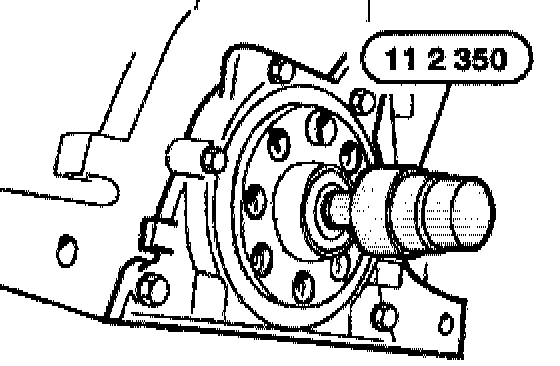

Install new guide bearing and drive home with Special Tool 11 2 350 in conjunction with Special Tool 00 5 500 (drive firmly home).
