Operator Control/ Panel of Simulator


OPERATOR CONTROL - PANEL OF SIMULATOR

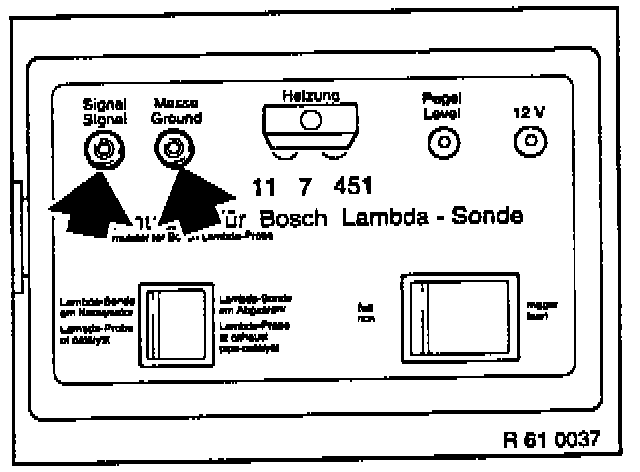

Signal:




Yellow connection socket for measuring the oxygen sensor voltage of all Bosch oxygen sensors.

Ground:

Blue connection socket for measuring the oxygen sensor voltage of the 4-pin oxygen sensor only.

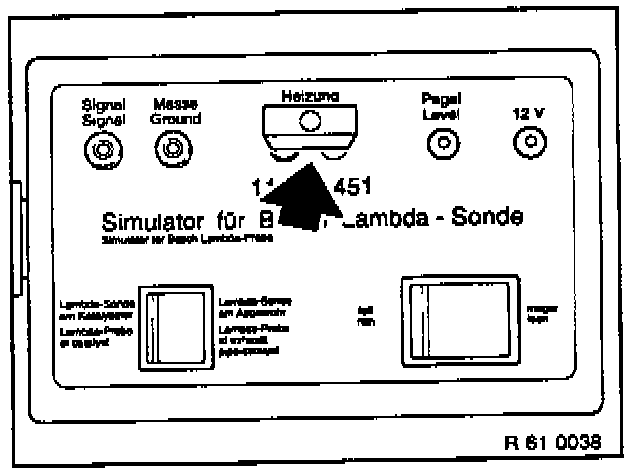

Heating:




Red connection sockets for measuring the heating current of heated oxygen sensors. The jumper is only removed when Test # 1 is being performed. It remains installed throughout all other tests.

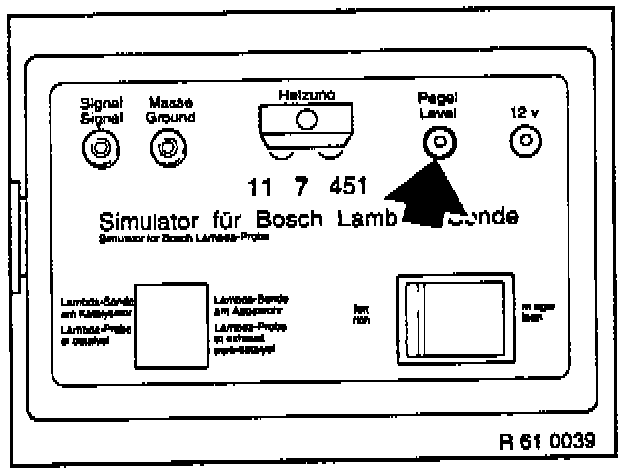

Level:




Yellow LED flashes when simulation in progress.

The yellow LED flashes whenever the "RICH" or "LEAN" button is pushed. This verifies oxygen sensor and oxygen sensor circuit simulation.

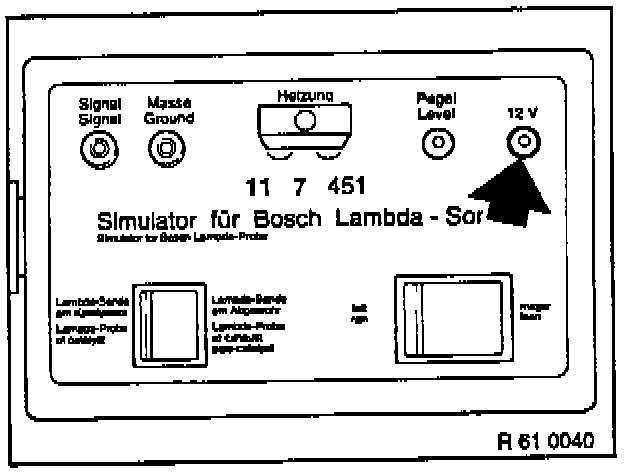

12V:




Green LED lights when battery voltage (>1O.5V) is applied (using 117 452).

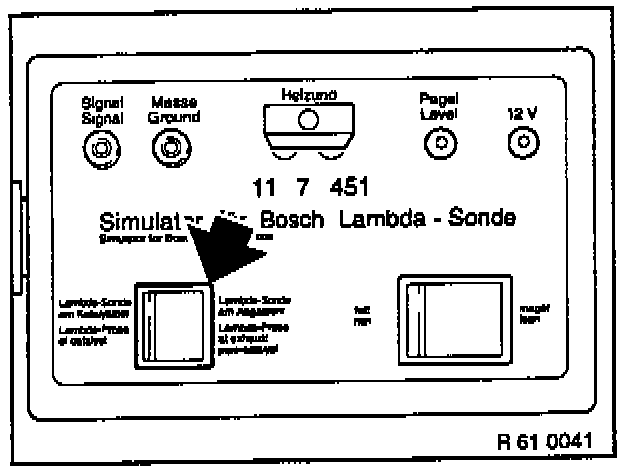

Oxygen sensor at catalytic converter oxygen sensor at exhaust pipe:

Selector switch to select the location of the oxygen sensor.

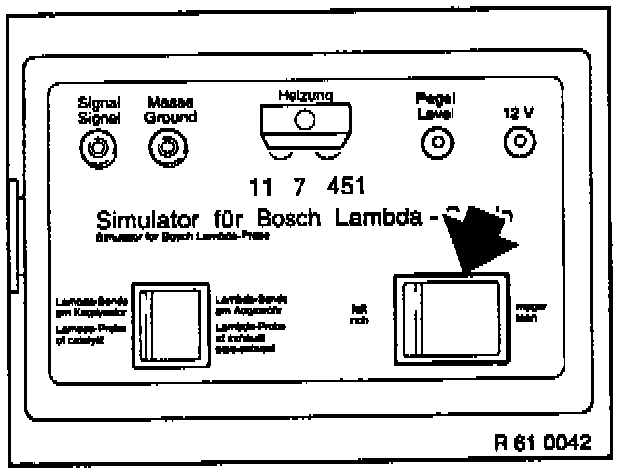

Rich/Lean:




This button when depressed will interrupt the oxygen sensor circuit and simulate a rich or lean condition. See Test 2 & 3 for further details.
