BMW Special Tools

GROUP 04
Tools and
Equipment

Bulletin Number
04 21 88 (1707)

Woodcliff Lake, NJ
December 1988
Technical Dept.

SUBJECT:
BMW Special Tools

The special tools have been developed to ensure professional repair work, and will be sent to all Automotive BMW dealers under the Automatic Tool Shipment Program.

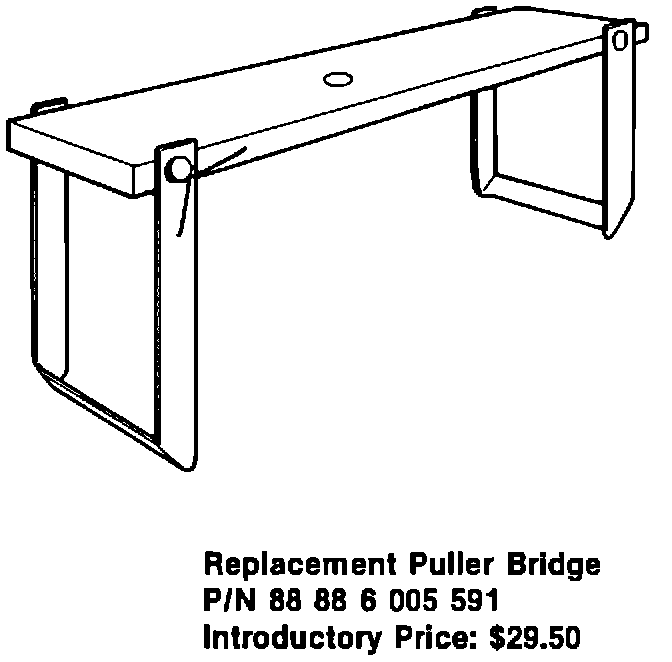

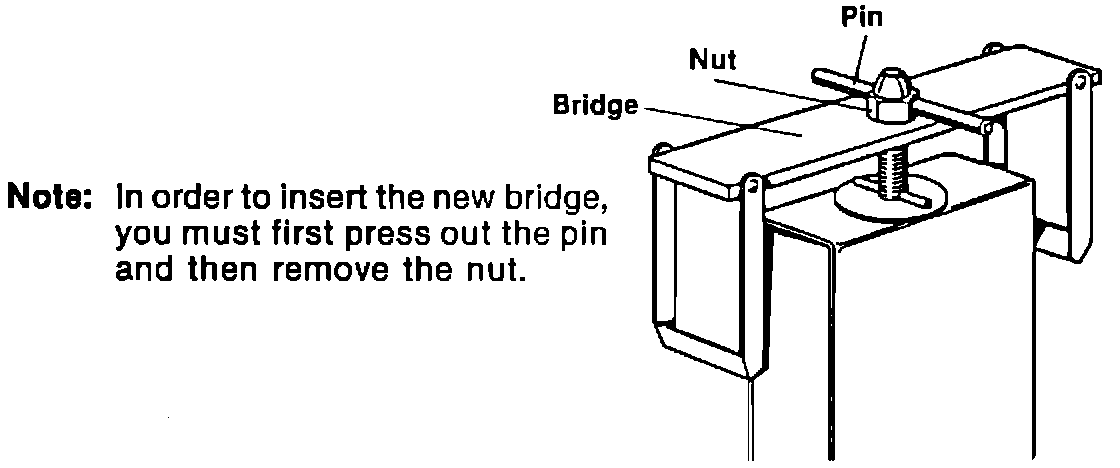

Due to a design modification to the general module for the central body electronics (ZKE), it is no longer possible to remove the module with the existing puller (P/N 88 88 6 005 590). The development of a new bridge allows the puller to once more be used on all modules.

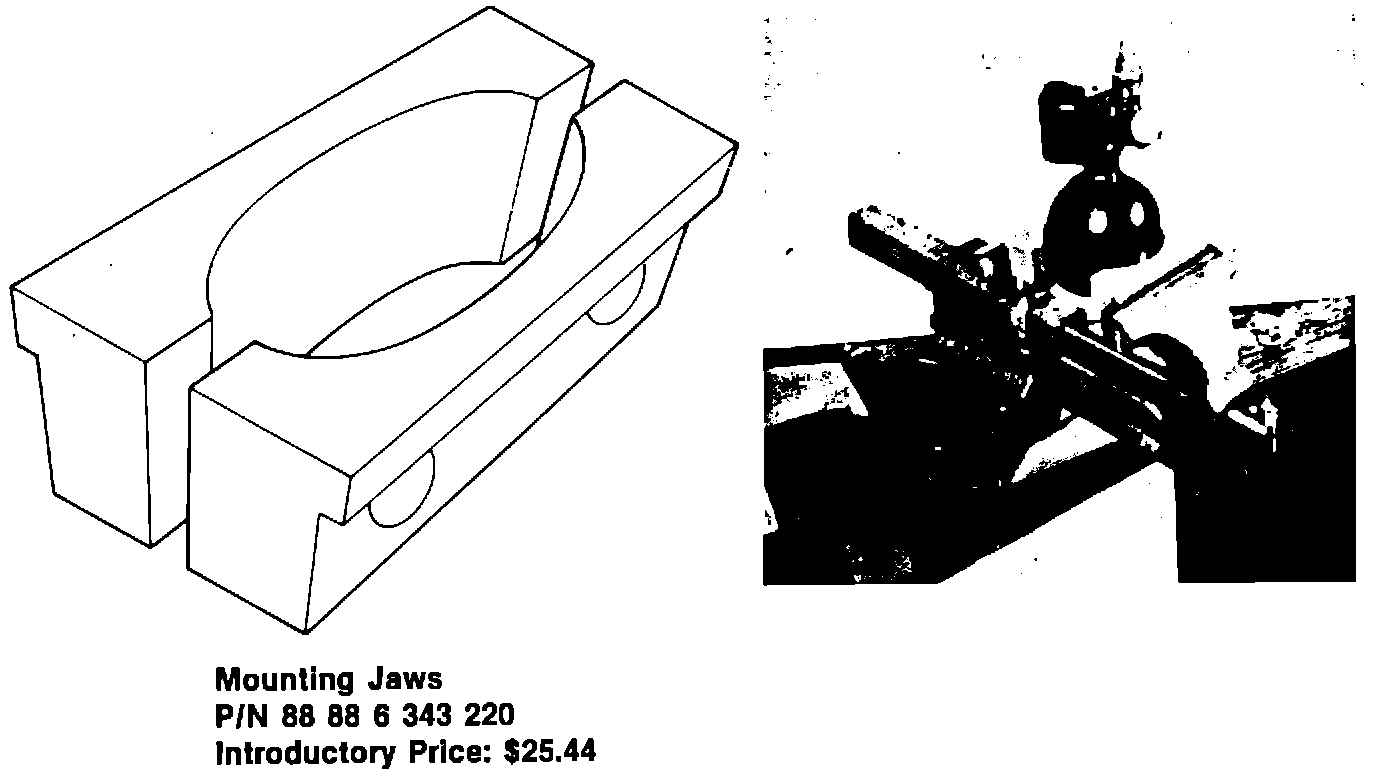

Due to the new size of the H31 pressure accumulator, it is necessary to use a new set of holding jaws to remove the DS Regulator.





The tools will not be included in the Automatic Tool Shipment, but may be ordered directly from your Parts Distribution Center.

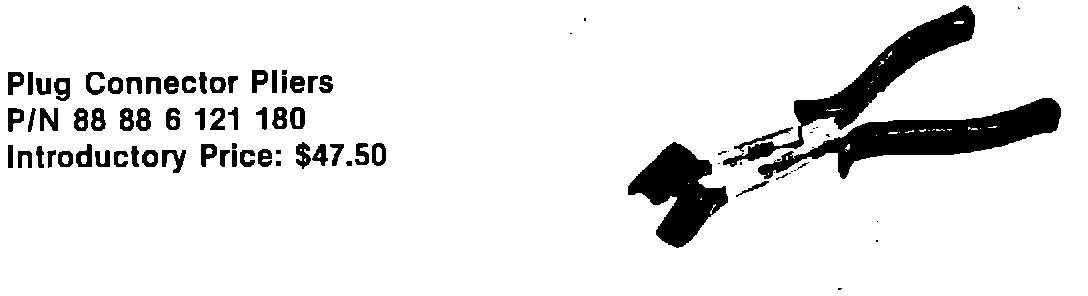

Special pliers have been developed to ease the removal of spark plug connectors.

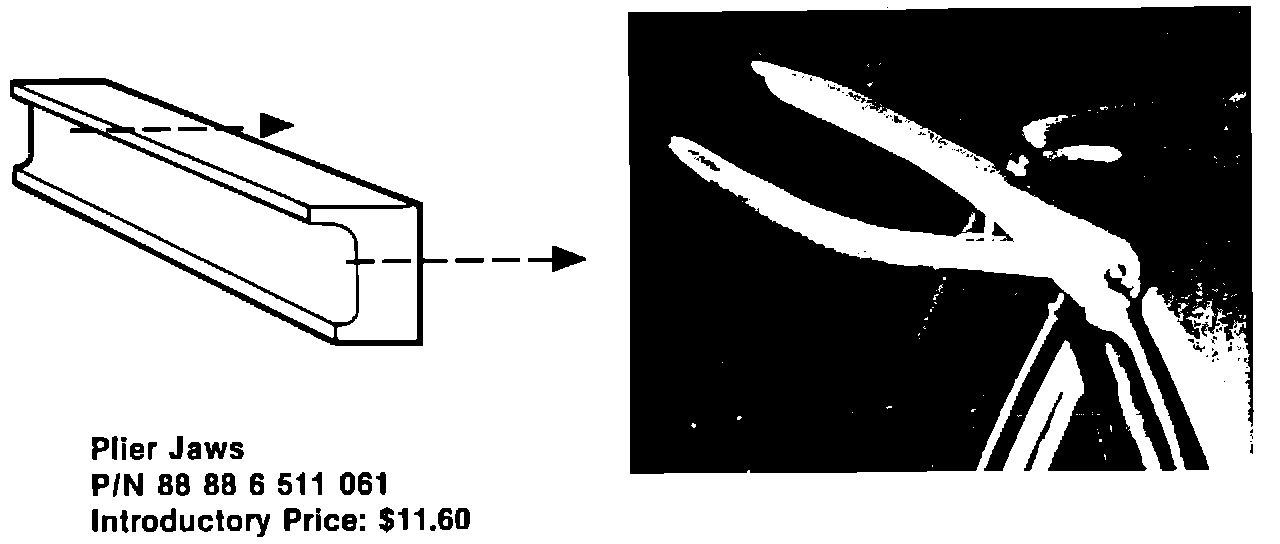

A new set of jaws have been developed to use on the E30 for mounting the rain gutter trim. They are to be used in conjunction with Rain Gutter Pliers P/N 88 88 6 511 060.

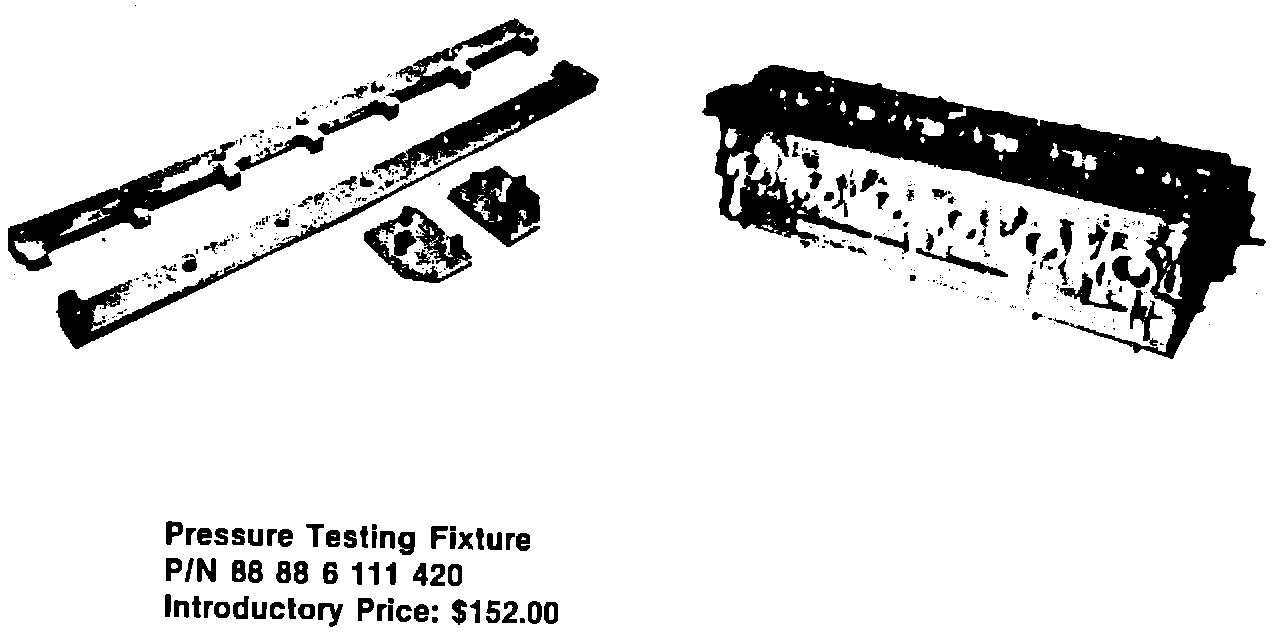

A new fixture has been developed to facilitate leak testing of the M70 cylinder head.
