A/T - Case Alignment Tools

Group 04
Tools and
Equipment

Bulletin Number
04 13 93 (3837)

Woodcliff Lake, NJ
July 1993
Product Engineering

SUBJECT:
New BMW Special Tool for A4S 310R

MODELS:
E34, E36

Situation:
Alignment of case parts during assembly is critical.





Solution:

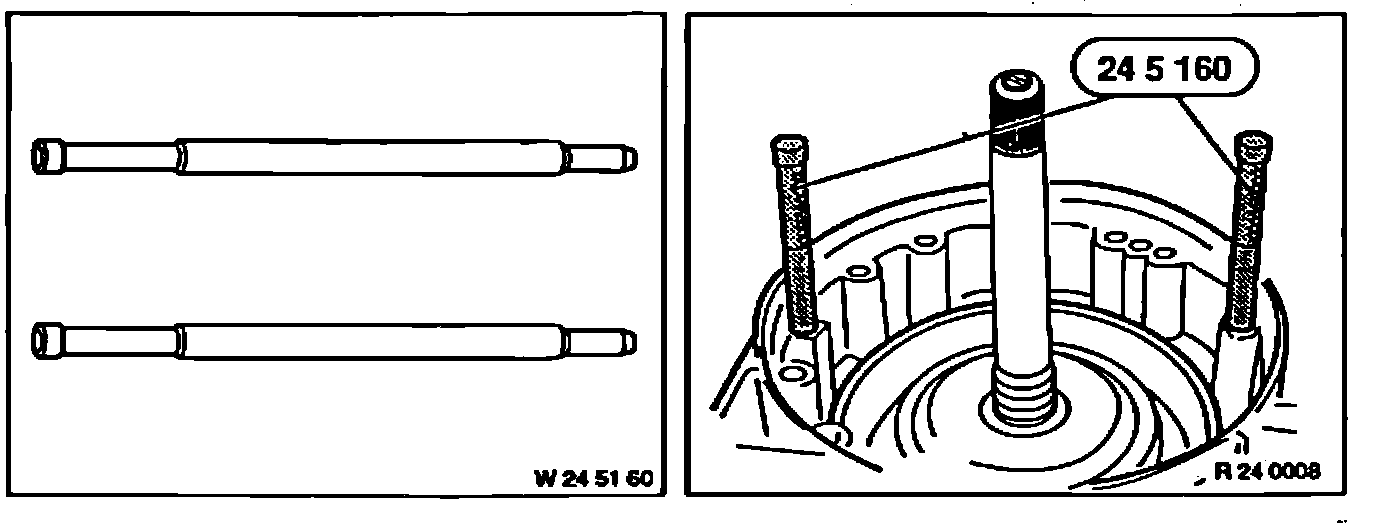

The alignment pins have been developed in order to maintain proper alignment of the main case, adapter case, and bell housing during assembly of the transmission. These pins may be purchased through your PDC.

Alignment Pins
P/N 90 88 6 245 160
Introductory Price = $35.50
