Removing/Installing Left or Right Control Arm
REMOVING AND INSTALLING OR LEFT OR RIGHT CONTROL ARMRemove front wheel.

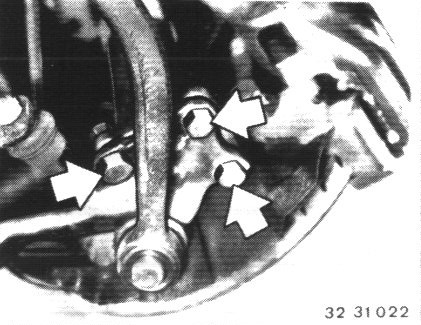

Unscrew bolts.
Installation:
Clean threads of bores and bolts.
Install bolts with a bolt cement.
Tightening torque. 93 Nm (67 ft lb)

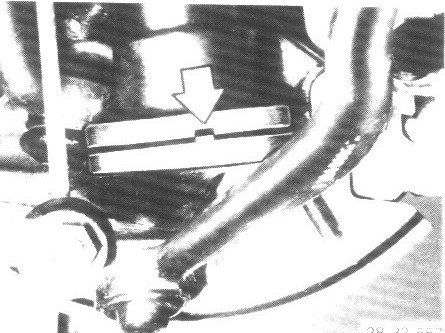

Check for correct installed position
Unscrew nut.

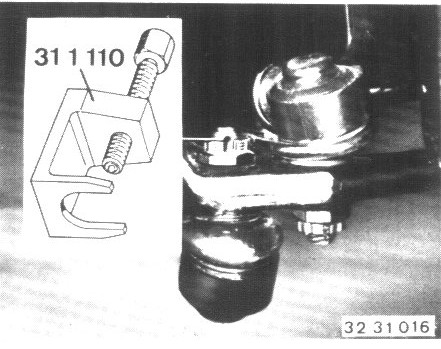

Press off ball joint with Special Tool 31 1 110.
Installation:
Remove grease on ball pin and in bore.
Replace self-locking nut.
Tightening torque. 93 Nm (67 ft lb)

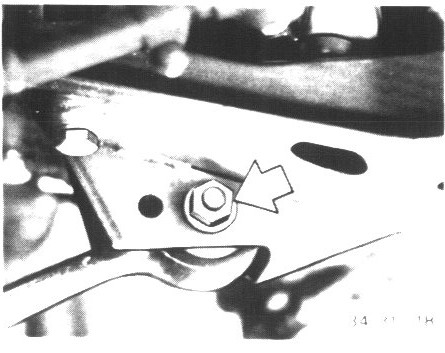

Unscrew bolt.
Installation:
Replace sell-locking nut.
Use washers on both sides.
Tightening torque for car loaded down to normal position. [1] 77.5 Nm (56 ft lb)
[1] Normal position:
Car loaded down with 2 x 68 kg (2 x 150 lbs) of front seats (seats in center position), 1 x 68 kg (1 x 150 lbs) on center of rear seat (not for coupes), 1 x 21 kg (1 x 46 lbs) in middle of trunk, and a full tank of gas.
