With H-31 System

REMOVING AND INSTALLING POWER STEERING PUMP

- Discharge pressure in reservoir by operating brake pedal about 20 times.

- Draw off hydraulic fluid in tank.

Never reuse drained hydraulic fluid!

- Unscrew splash guard.

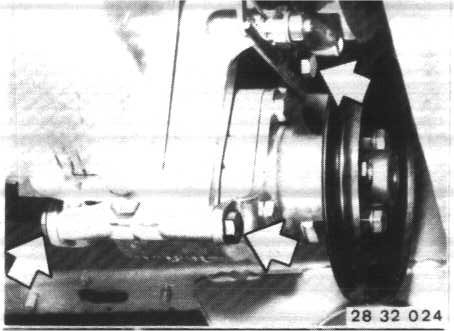

- Disconnect lines,

Installation:

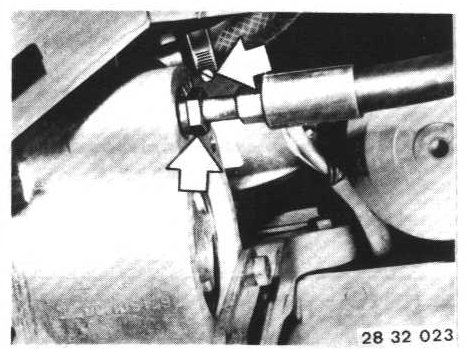

Tightening torque M14 35 Nm, M16 40 Nm.
Fill and bleed hydraulic system. Service and Repair

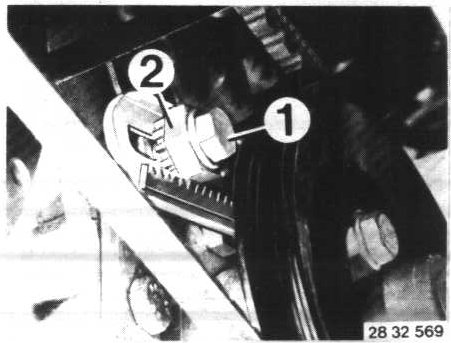

- Loosen nut (1).

- Release drive belt by turning toothed element (2).

- Take off drive belt.





- Unscrew bolts and remove power steering pump.





Installation:
Tighten drive belt before torqueing bolts.
Tighten toothed element with 8 to 8.5 Nm (5.8 to 6.1 ft. lbs.) and lock.

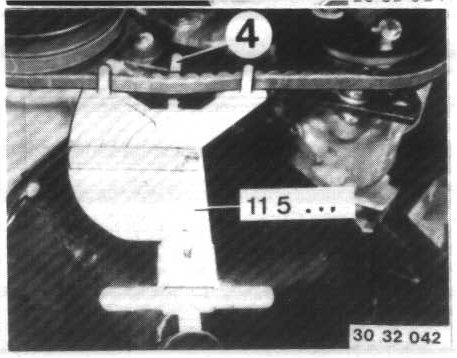

Check belt tightness with tester 11 5 . ...
Hook (4) rests on tip of tooth.
