Starter Solenoid: Service and Repair

REPLACING SOLENOID SWITCH






Remove starter.

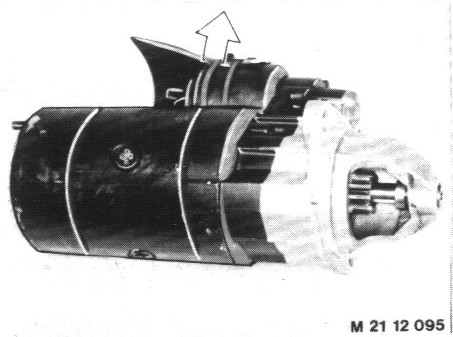

Take Off cover.

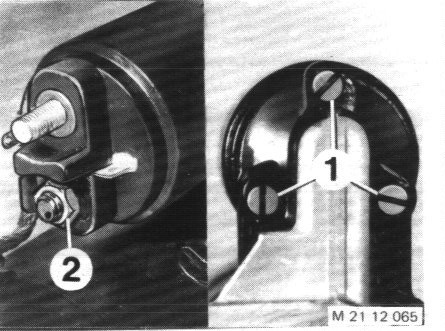

Unscrew solenoid switch (1 and 2).


Installation:
Don't turn the wire connector while tightening - danger of short circuit.

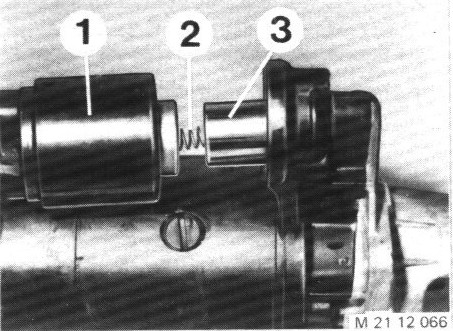

Take off solenoid switch (1) and spring (2).
Disengage pin (3).


Installation:
Check pin (3) for wear and lubricate with grease.
