Power Distribution Box, Front

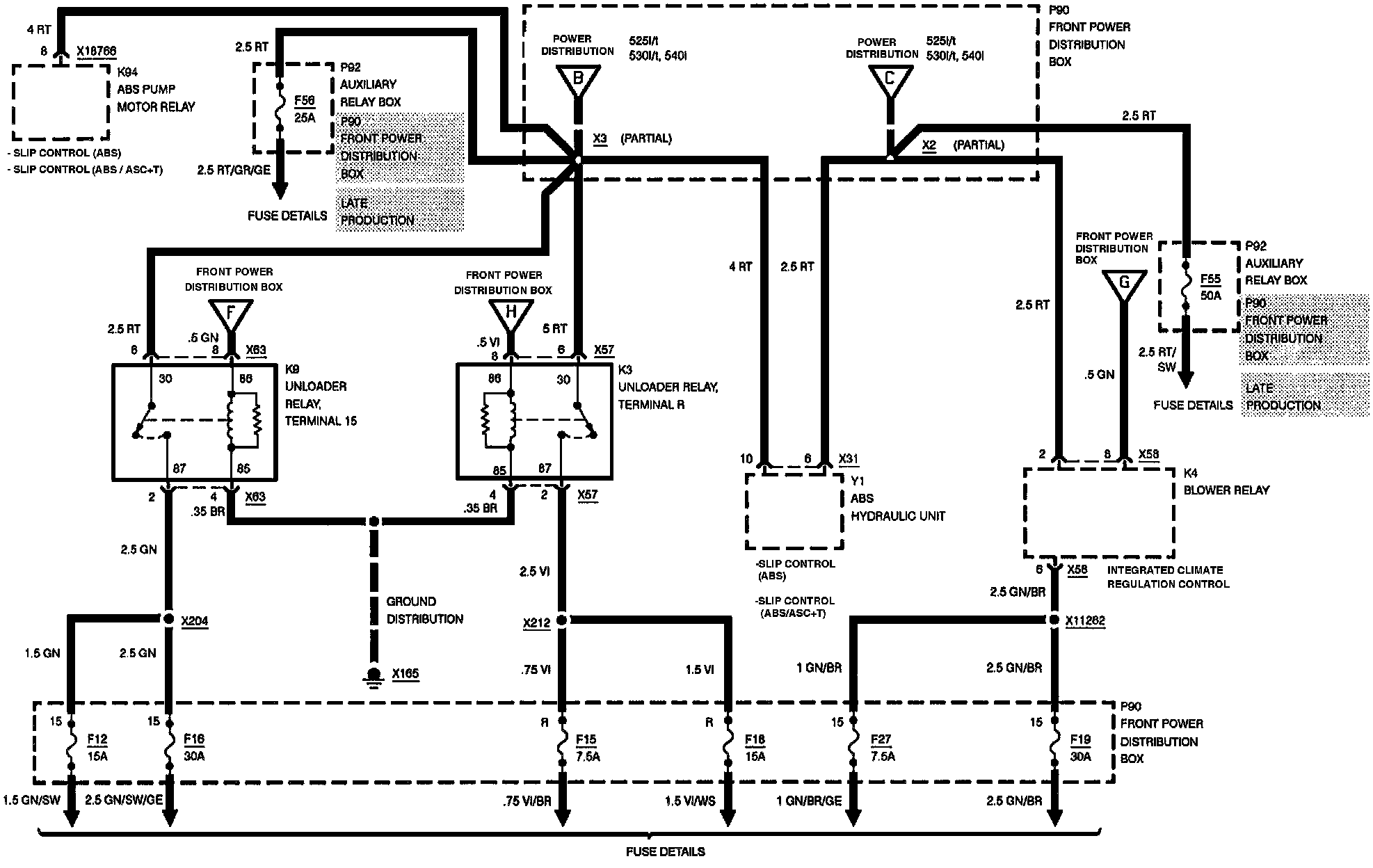

Front Power Distribution Box (Part 1 Of 4):

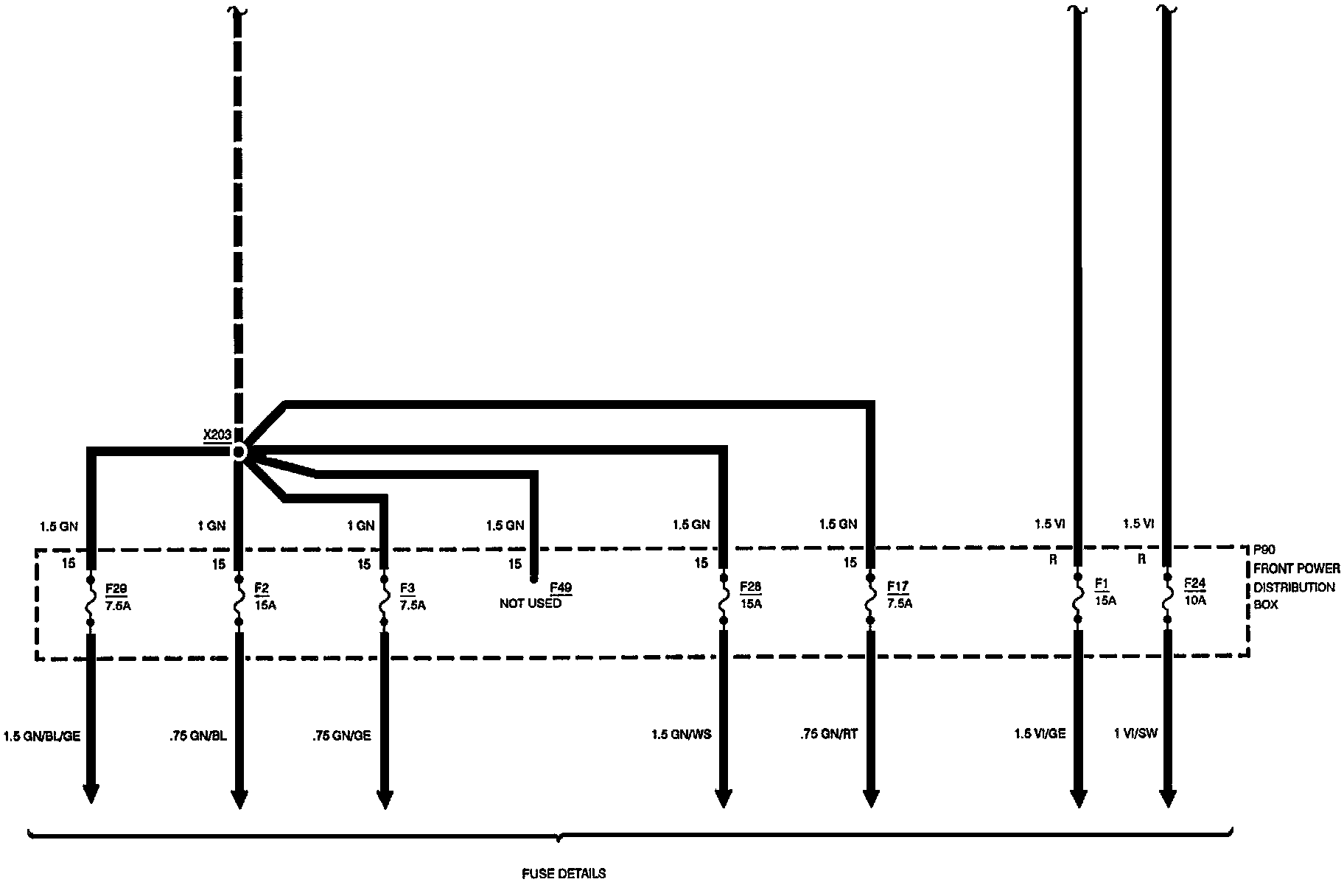

Front Power Distribution Box (Part 2 Of 4):

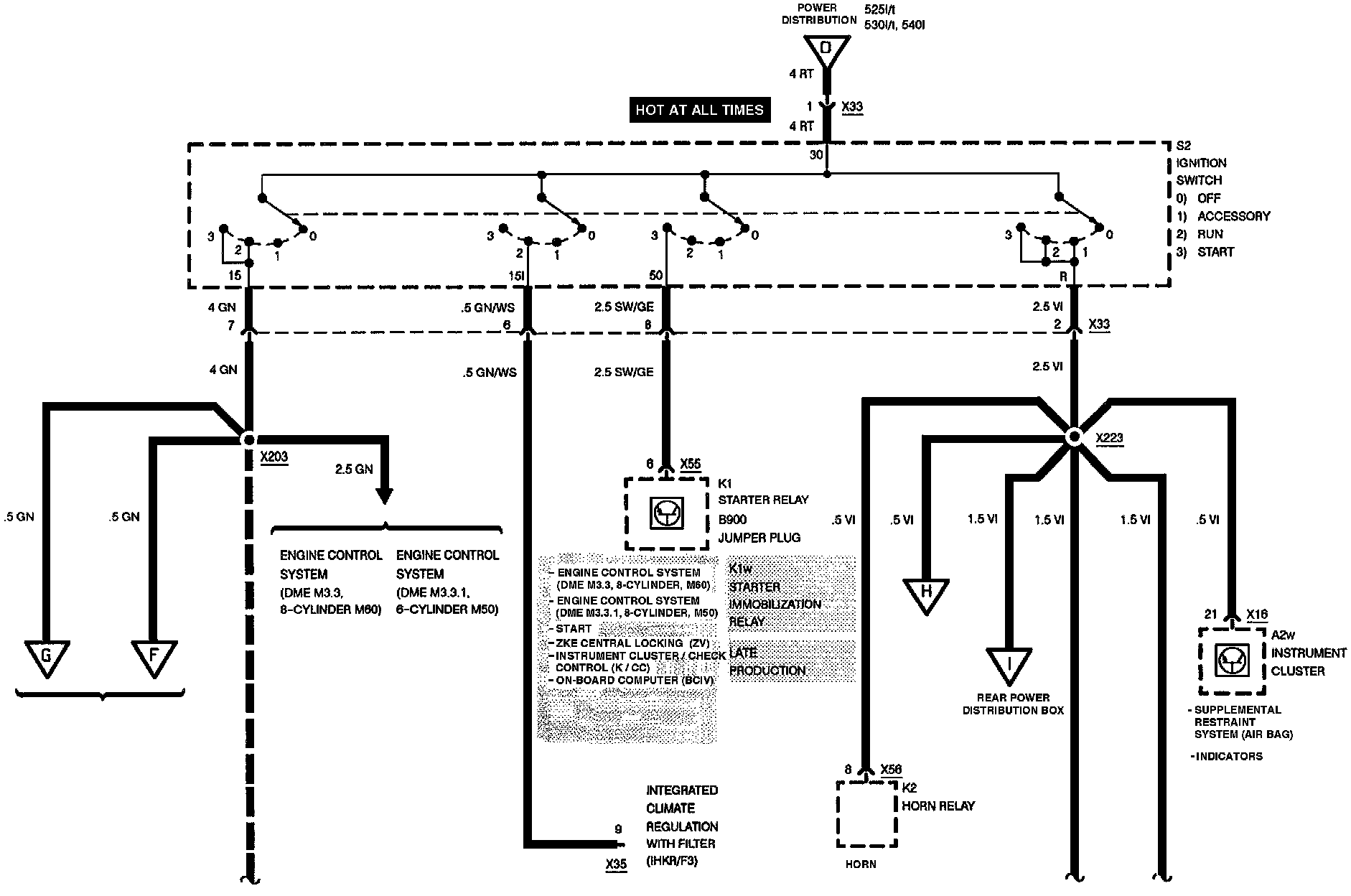

Front Power Distribution Box (Part 3 Of 4):

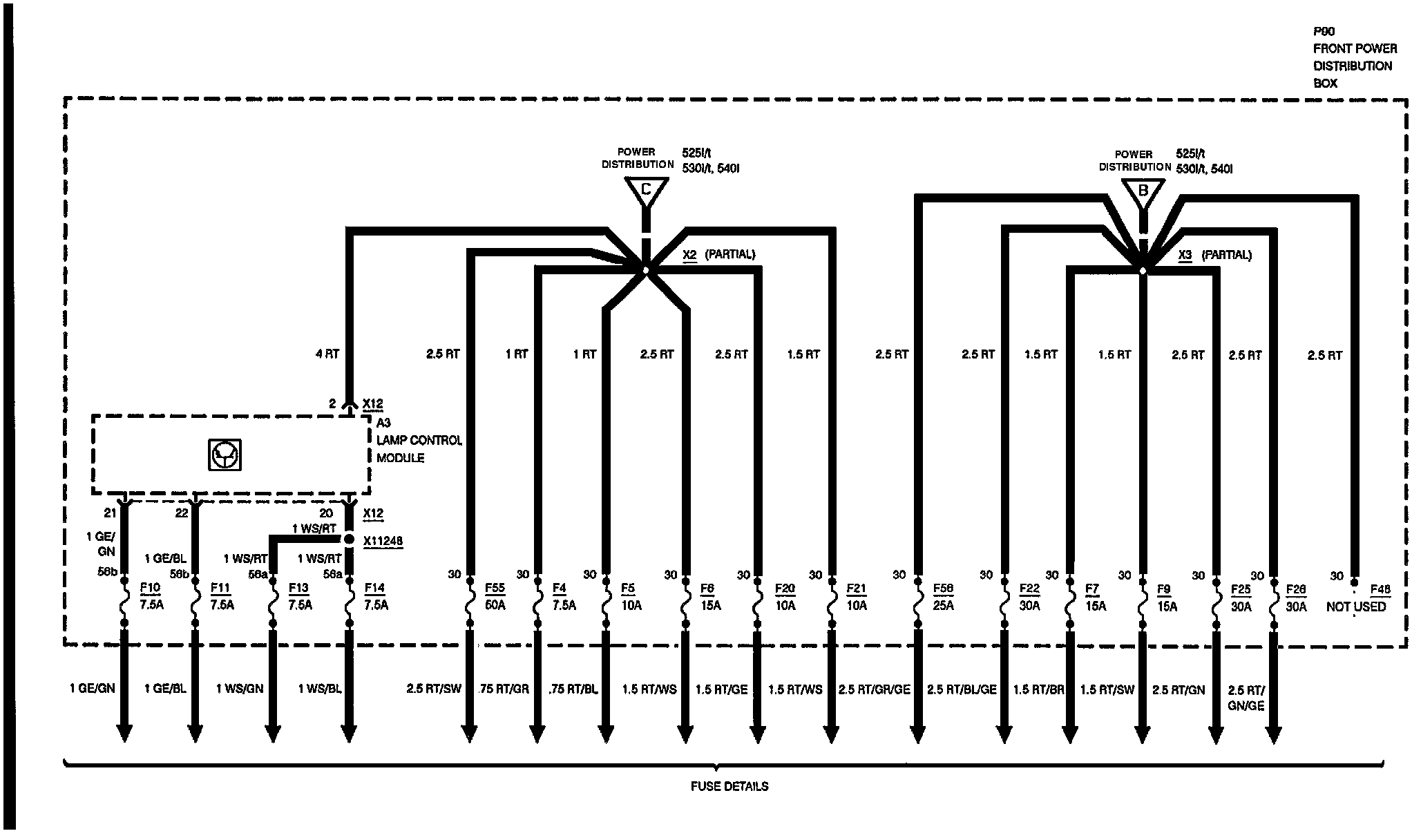

Front Power Distribution Box (Part 4 Of 4):
