Passenger's Side

WARNING: Review Service Precautions. Improper handling could cause activation of the airbag(s) and lead to injuries!

REMOVE
- Disconnect battery and cover negative pole or terminal.
- A waiting period of approximately 5 minutes should be observed before beginning electrical work to allow the capacitor charge to dissipate.





- Remove lower steering column casing section.
- Pull (orange) plug connection out and disconnect.

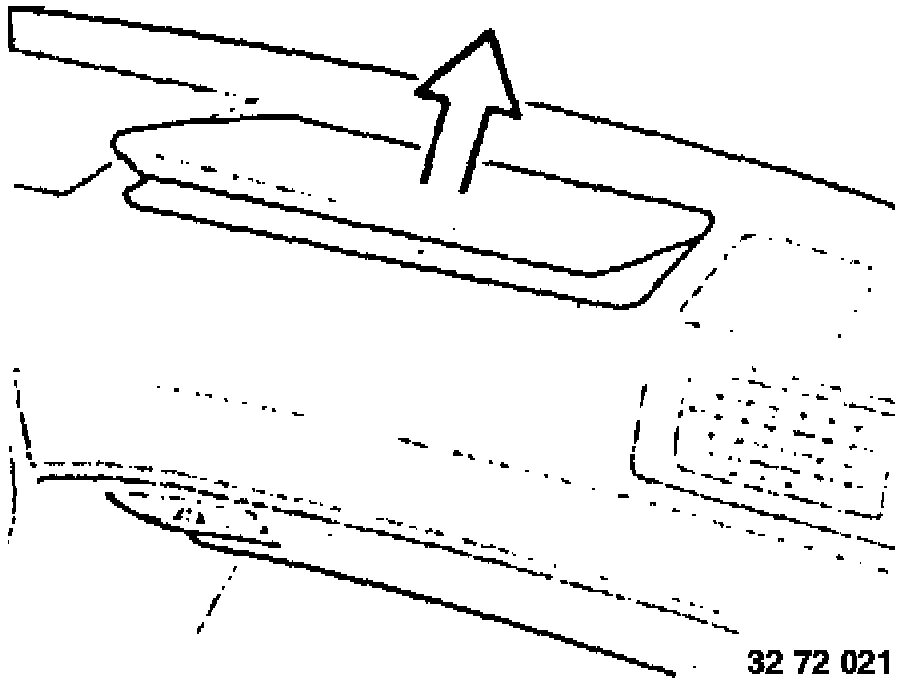

- Lift out covering.

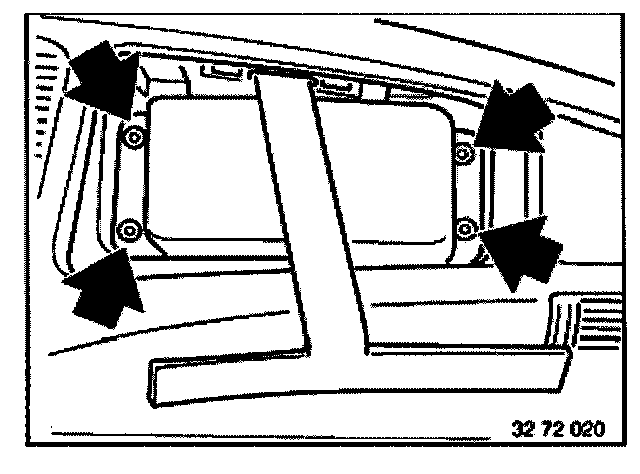

- Release screws.





WARNING: Lay airbag unit to one side (in the luggage compartment). Padded side must always face up.

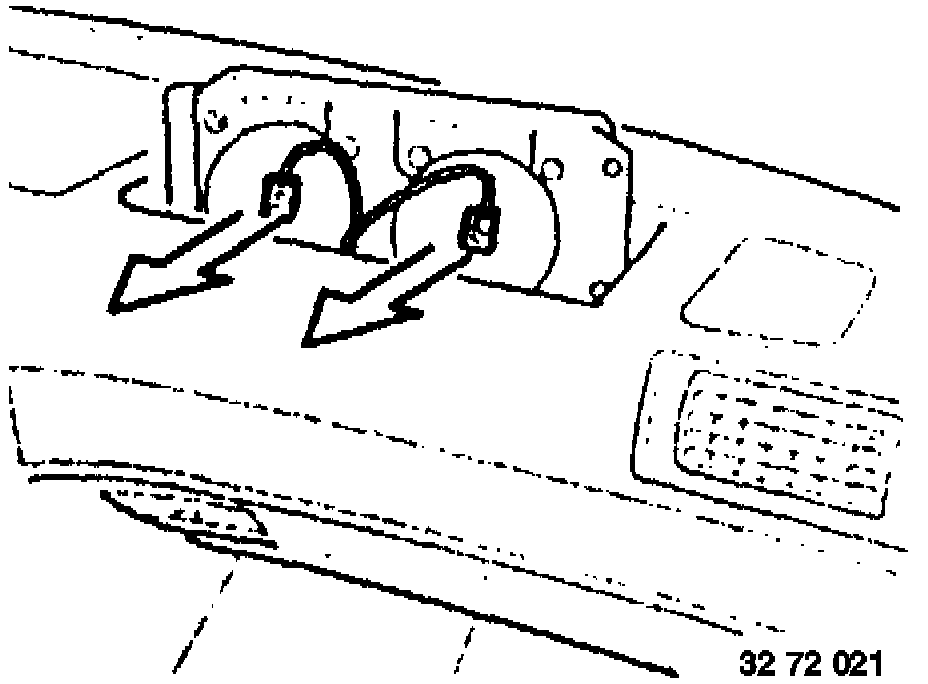

- Disconnect plug connectors and remove passenger's airbag.

INSTALL
- Install in reverse manner. Do not pinch cables.
- Check for possible trouble codes.
- Verify proper system operation.
