Intake Air Plenum: Description and Operation

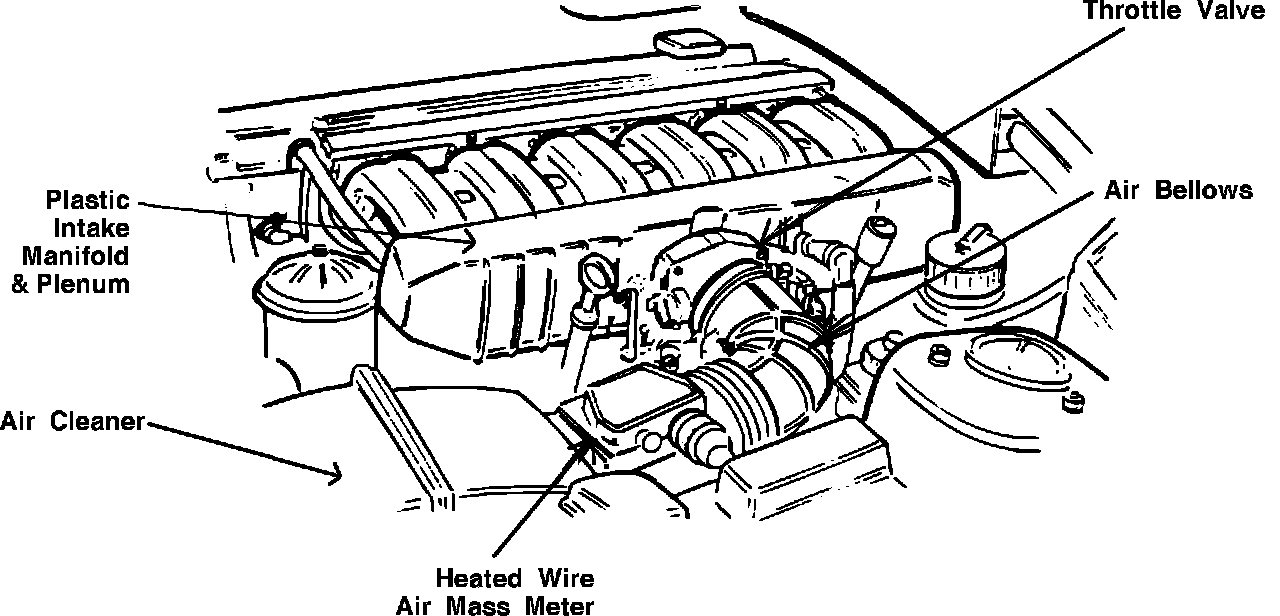

Component Locations:

PURPOSE
Tuned intake air plenums provide a measured supply of clean air, which is mixed with injected fuel for combustion. Because of its larger volume and special shape, throttle response is improved and horsepower is increased over a broader rpm range.

The intake manifold and plenum chamber are a single molded plastic unit.
