Positive Crankcase Ventilation Valve: Service and Repair
Unscrew covers for
ignition coils

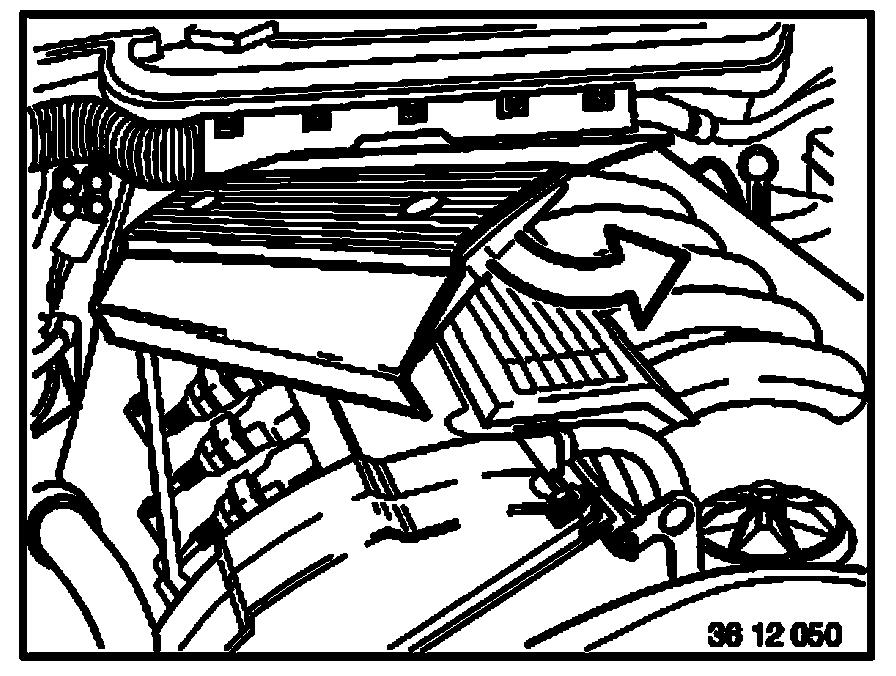

Remove cover from fuel injection nozzles

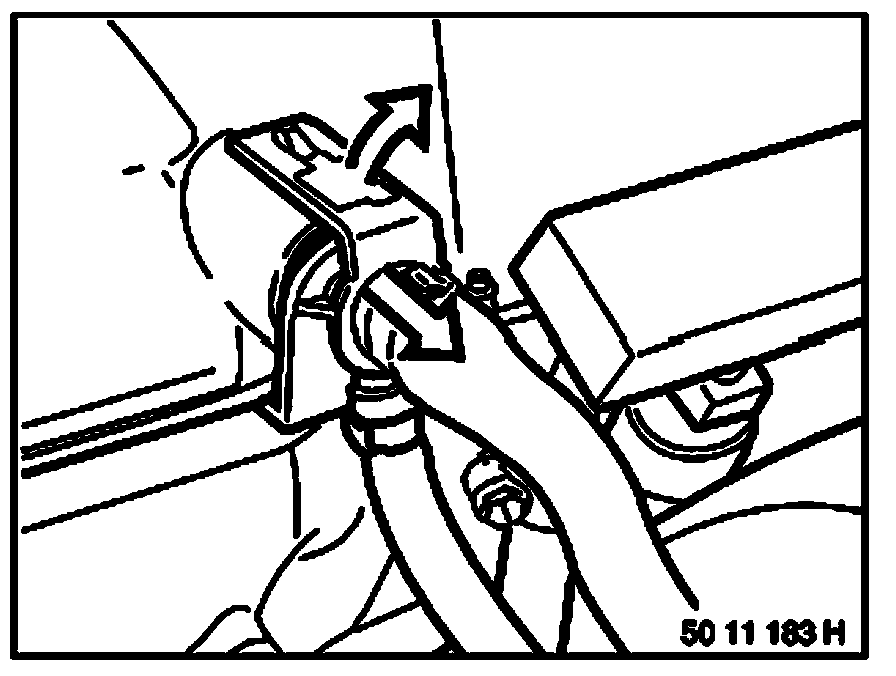

Unclip connection for cylinder head vent
